Page 8 Front Bezel Control Features
Front Bezel Control Features
The SonicWALL Network Security Appliance E-Class is
equipped with a front panel bezel interface that allows an
administrator to customize certain aspects of the appliance or
simply monitor its status without having to log into it through a
separate terminal.
Note: Using the front bezel for configuration purposes prior to
completing initial setup will bypass the Setup Wizard’s
automatic launch at startup.

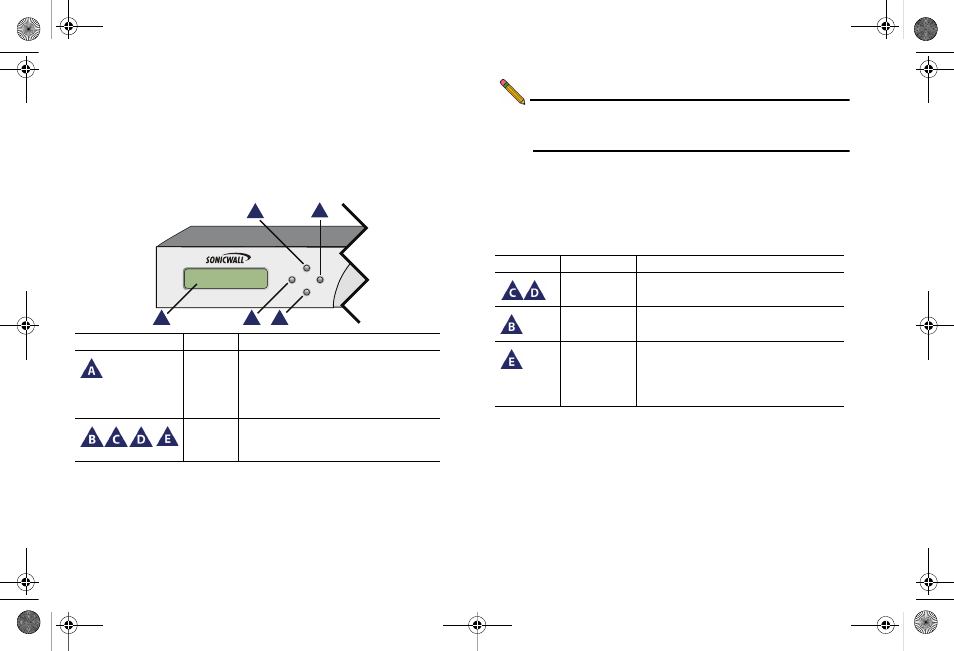

LCD Control Buttons
The LCD interface is controlled by a D-pad, consisting of four
buttons: Up, Down, Left, Right. The table below describes the
functions of the buttons:
Icon Feature Description
LCD
Screen Displays the front panel bezel interface
which can be used to display status
information, perform basic
configurations, restart the appliance or
boot the appliance in SafeMode.
Control
Buttons Up, Down, Left and Right buttons,
used to navigate the LCD menu
system.
.ETWORK
" !
%
$
#
.ETWORK
" ! $
# %
Icon Button Navigation Features
Up/Down Selects options and navigates up
and down lists.
Left Cancels changes and returns to the
previous menu.
Right Confirms choices and enters
menus. Also sets the appliance to
screen-saver mode when used
from the main menu.
