Scenario A: NAT/Route Mode Gateway

For new network installations or installations where the
SonicWALL NSA E6500 is replacing the existing network
gateway.

In this scenario, the SonicWALL NSA E6500 is configured in
NAT/Route mode to operate as a single network gateway. Two
Internet sources may be routed through the SonicWALL
appliance for load balancing and failover purposes. Because
only a single SonicWALL appliance is deployed, the added
benefits of high availability with a stateful synchronized pair are
not available.

To set up this scenario, follow the steps covered in the

Initial

Setup

section

. If you have completed setup procedures in that

section, continue to the

Additional Deployment Configuration

section, on page 41

to complete configuration.

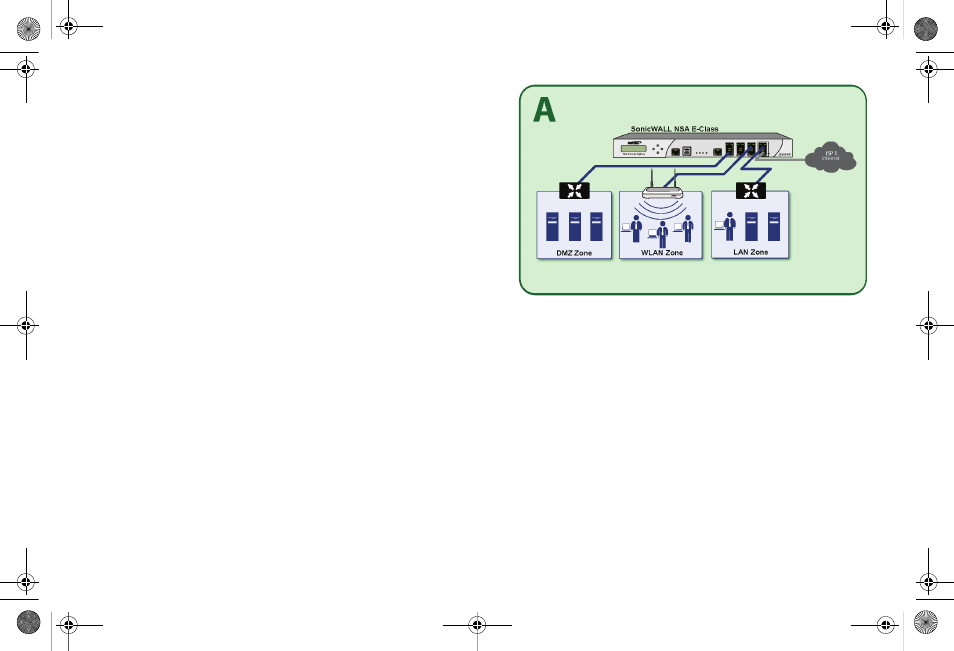

LAN Zone

DMZ Zone

WLAN Zone
