Sterling SXS Series - Manual (Page 16)

BJ5-620 Chapter 2: Functional Description 16 of 73
An optional feature is a water cooling system for the rotor used for special applications.
Screen and screen support
The screen and the screen support are welded together and fixed to the housing by screws
in standard execution.
The screen is slightly larger in radius than the cutting circle of the rotor cutters. The
screen perforation is selected according to the desired grain size of the shredded material.
All shredded material parts which are smaller than the screen perforation fall through the
screen. The screen is replaceable and can be taken out after opening the machine door.
(See below.)

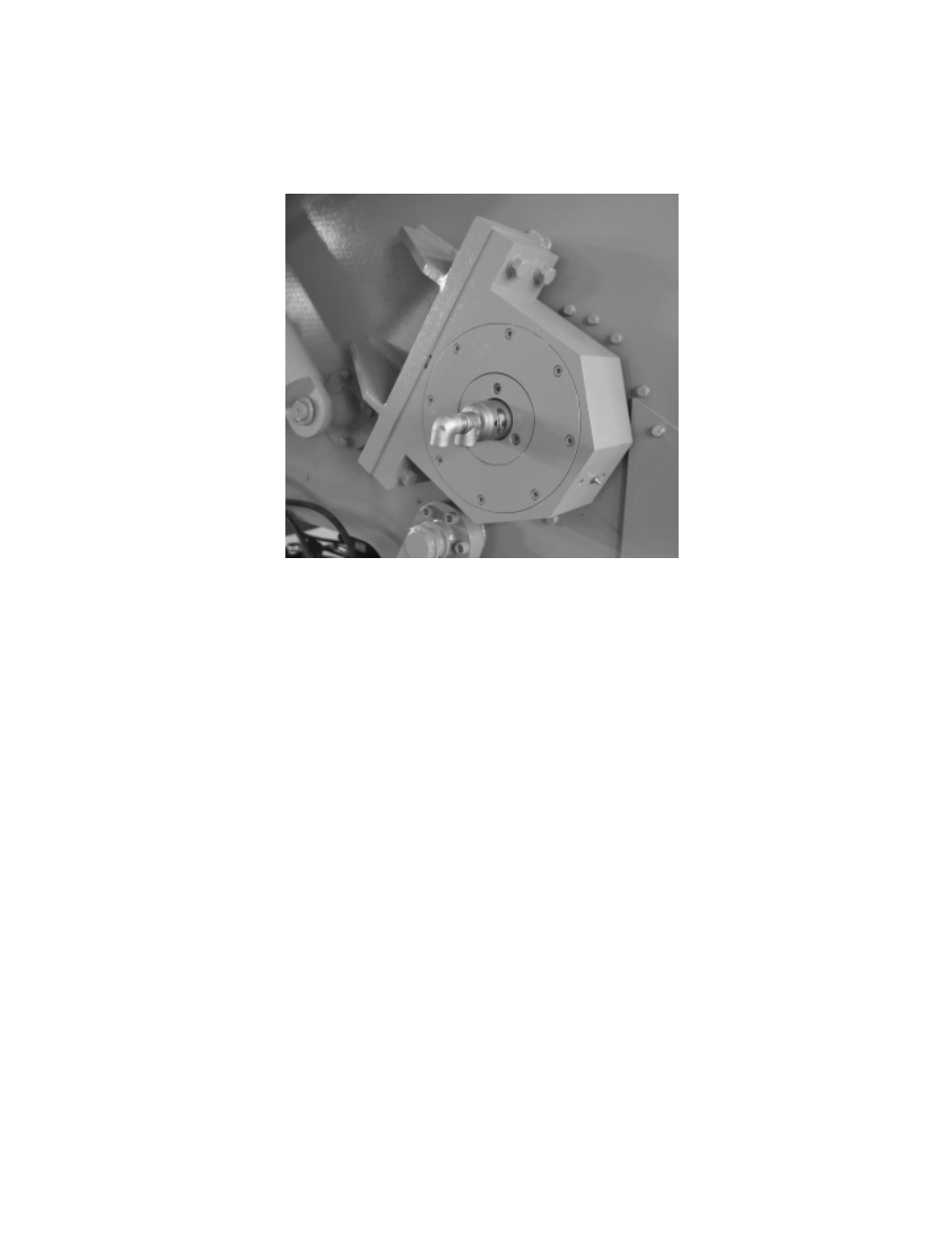

Bearing with water plug
for rotor cooling
