16

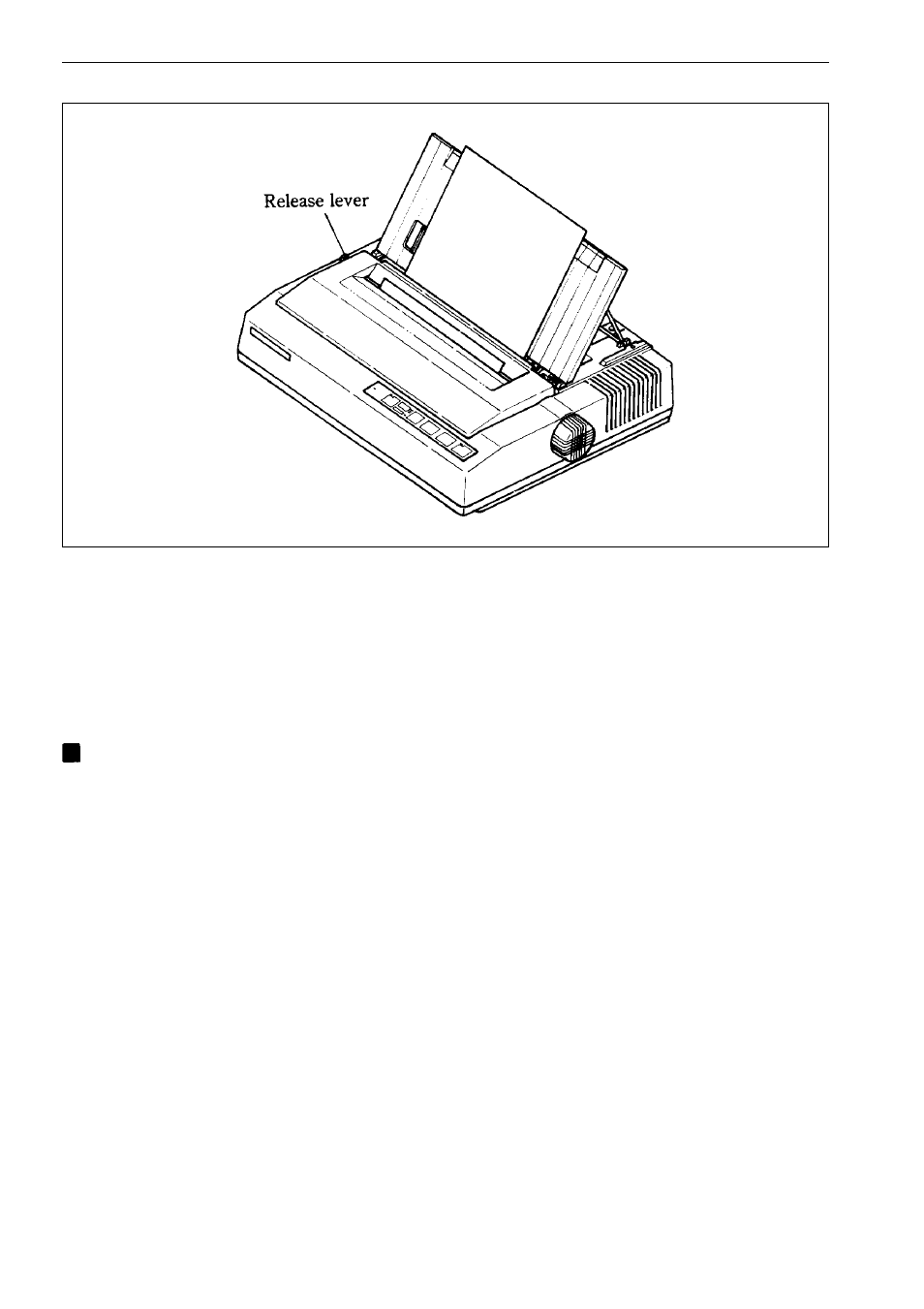

Figure 2-6. You can insert a sheet of paper by using the release lever.

Remember, you can also use the optional automatic cut-sheet feeder for single
sheets.

Loading sprocket-feed paper
This is the familiar computer paper, with the holes along the sides and perfora-
tions between the sheets. It is also called sprocket, punched, fan-fold, or just plain
“computer paper.” It can be as narrow as 4”, and up to 10” wide.

1. Turn on the printer and set the release lever for sprocket-feed paper.
2. If the paper guide is installed, remove it.
3. Place a stack of fan-fold paper behind the printer.
4. Open the sprocket covers, on the right and left sprocket units, as shown in

Figure 2-7.
