REC IN PLAY OUT
STEREO INTEGRATED AMPLIFIER AX-5090R
POWER ON/OFF
PHONES
BASS A
B
SPEAKER
CD REMOTE SENSOR
-10 10+
TREBLE
-10 10+
BALANCE
VOLUME
DIRECT
LOUDNESS
-10 10+
MIN MAX
TUNER TAPE 1/MD PHONO TAPE 2 MONITER
TAPE 2
MONITOR
DIGI LINK
L
R
IN OUT
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
MODEL NO. DD-6200
MADE IN KOREA
DESIGNED IN USA
SER. NO
LINE DIGI-LINK AC OUTLET
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of
Dolby Laboratories.
R
L
AC INPUT
120V~60Hz
14W
UNSWITCHED
120V~60Hz
1A MAX 100W

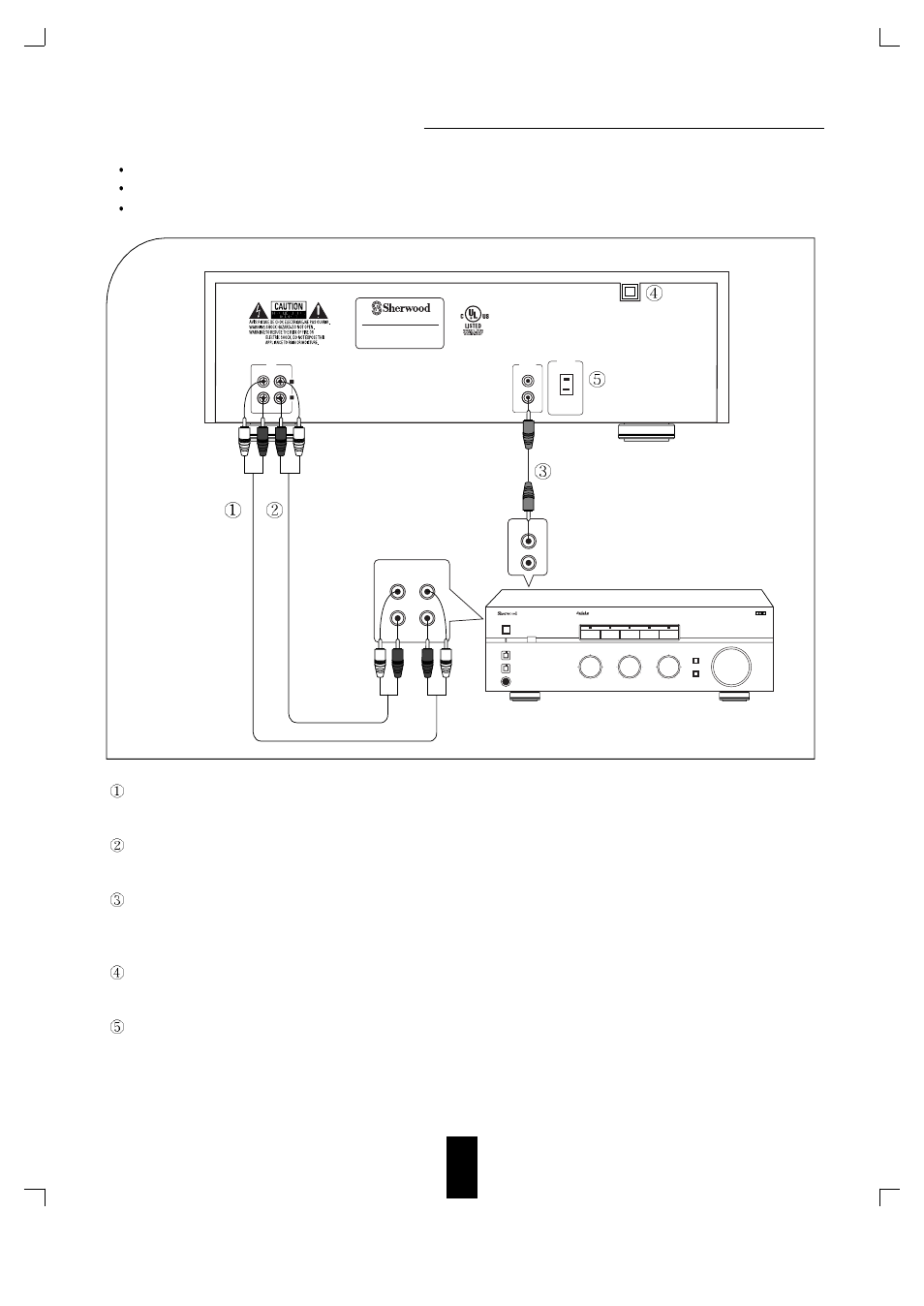

Rear Panel Connections
5
REC INPUT JACKS
Connect the cords between the REC INPUT jacks of this unit and the REC OUTPUT jacks of your amplifier.
PLAY OUTPUT JACKS
Connect the cords between the PLAY OUTPUT jacks of this unit and the PLAY INPUT jacks of your amplifier.
DIGI LINK JACKS
Connect this jack to the DIGI LINK jack of Sherwood amplifier/receiver bearing the DIGI LINK III or II logo to
control this unit remotely by DIGI LINK system.
AC INPUT CORD
Plug this cord into the switched AC outlet of amplifier or a wall AC outlet.
UNSWITCHED AC OUTLET
Power always flows to this outlet, regardless of whether this unit is switched ON or OFF if power flows through
the AC input cord of this unit.
Note : The equipment whose power consumption exceeds 100 watts should not be connected.
Do not plug the AC input cord into the AC outlet when making connections.
Be sure to connect the white plugs to the L(Left) and the red plugs to the R(Right) jacks when making connections.
Refer to the connecting diagram in the operating instructions of AMPLIFIER/RECEIVER.
AMPLIFIER/RECEIVER
