10
Remote displays of an ew 500 G2
transmitter

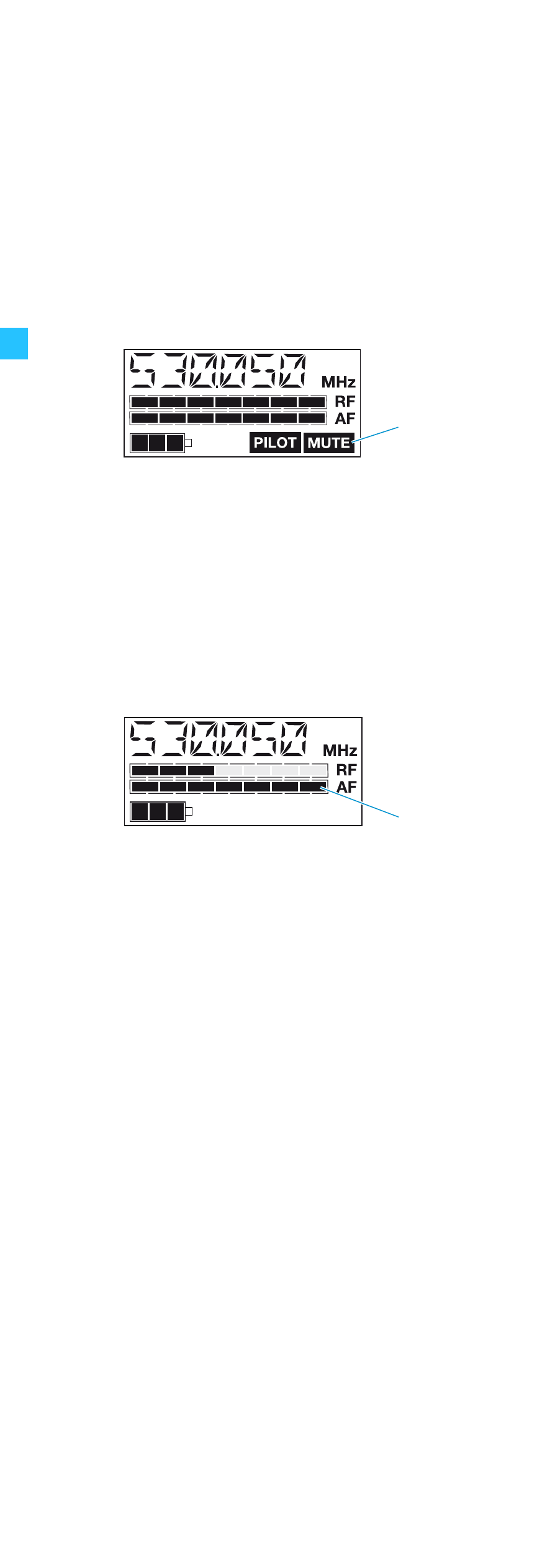

“MUTE” display
The “MUTE” display
ቨ
appears on the display panel when
y the RF signal of the received transmitter is too weak,
y the received transmitter has been muted (with the pilot
tone transmission or evaluation activated).
Modulation display
The level display for audio signal “AF” shows the
modulation of the received transmitter.
When the transmitter’s audio input level is excessively
high, the receiver’s level display for audio signal “AF”
ቧ
shows full deflection.
ቨ
ቧ
