Connecting to a Game Device
The instructions presented here are a general guide to connecting
the TV to a game device using the RCA Jacks provided (some game
devices may require a unique adapter that is not provided). Actual
connections may vary according to the make and model of the game
device. Refer to the user’s manual included with the game device for
more detailed instructions.
Notes
• Connect the 4-IN-1 cable connectors to the corresponding connectors on
your game device adapter.
• If the 4-in-1 cable does not fit the game device, then insert the included
RCA jack between the 4-in-1 cable and game device.

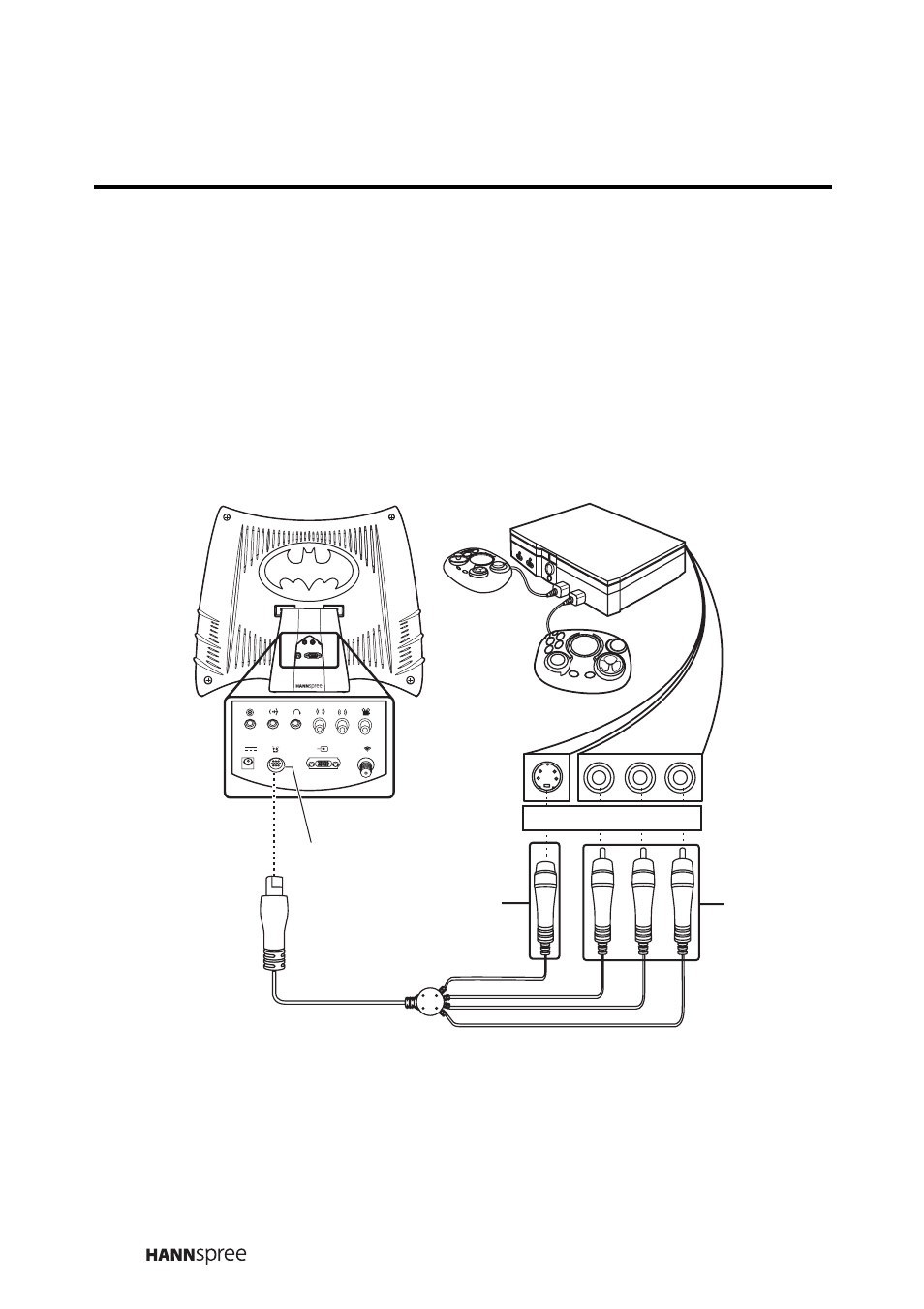

R L
B R W Y
4-IN-1 cable
S-Video
connector AV
4-IN-1
connectors
jack
