Additional Information

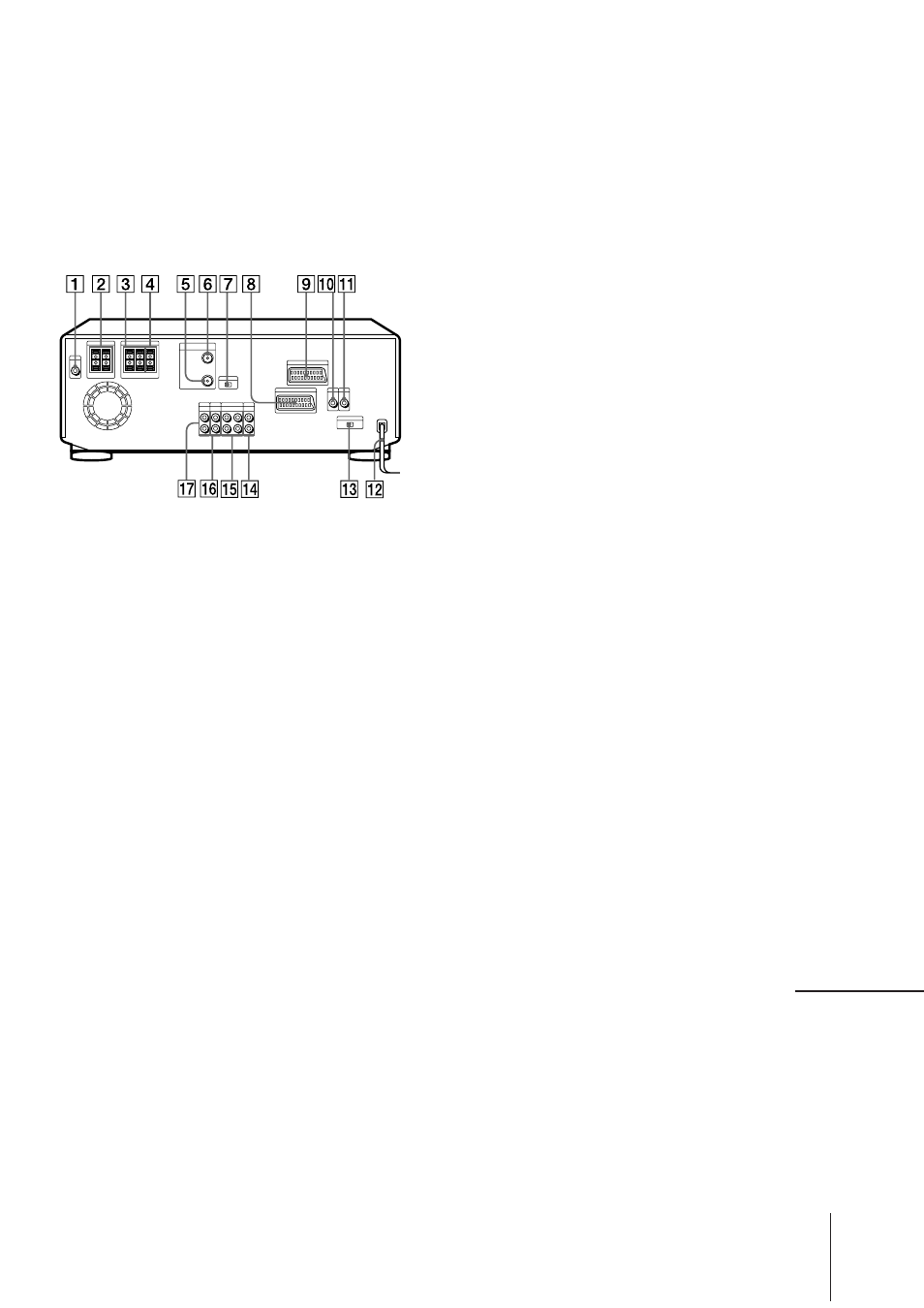

Rear panel

1

MIX OUT jack (9)

2

FRONT SPEAKERS L/R connectors (8)

3

SURROUND SPEAKERS REAR L/R connectors (9)

4

SURROUND SPEAKERS CENTRE connectors (8)

5

AERIAL IN connector (6)

6

AERIAL OUT connector (6)

7

RF MODULATOR ON/OFF switch (6)

8

EURO LINE IN connector (11)

9

VIDEO OUT (EURO-AV) connector (6)

0

MONITOR VIDEO OUT jack (11)

! ¡

VIDEO 1 IN VIDEO jack (11)

!™

Mains lead (11)

! £

NTSC PB switch (32)

! ¢

VIDEO 1 IN AUDIO L/R jacks (11)

!

TAPE/MD REC OUT/IN AUDIO L/R jacks (11)

! §

CD IN AUDIO L/R jacks (11)

! ¶

TUNER IN AUDIO L/R jacks (11)
