Page 7
Trouble Shooting Guide, Electrical
4/00021-2/FEA 209 544/74 A
Sony Ericsson Mobile Communications AB
7(12)
5 Capacity/Charging
Problems
•
Check that the System Connector (Fig. 5-1) is not incorrectly soldered, mechanically
damaged, dirty or oxidised. If necessary replace it.
•
Check that the Battery Connector (Fig. 5-2) is not incorrectly soldered, mechanically
damaged, dirty or oxidised. If necessary replace it by BGA replacement machine.
If the fault still remains, handle the unit according to local directives.

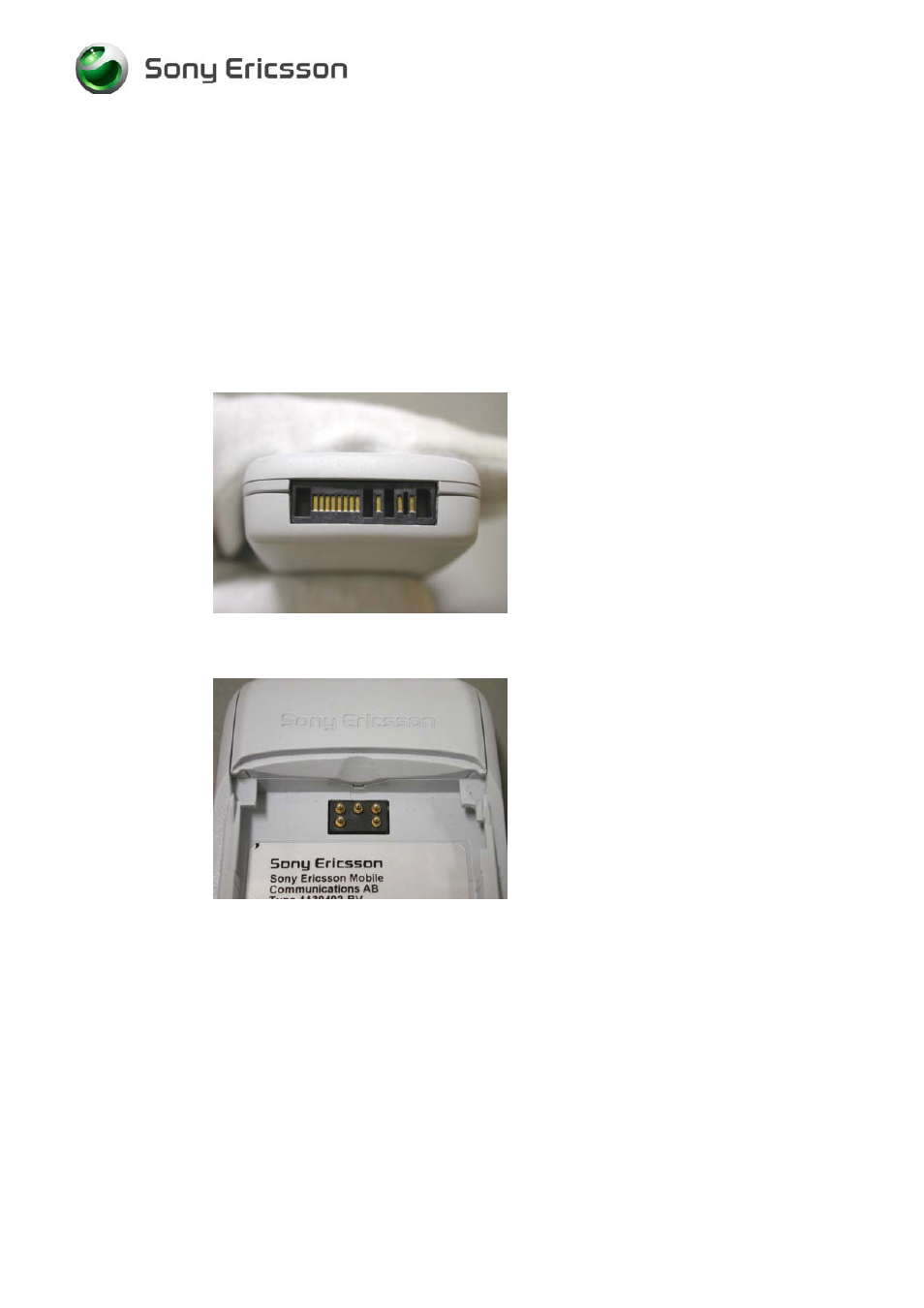

Figure 5-1
Figure 5-2
