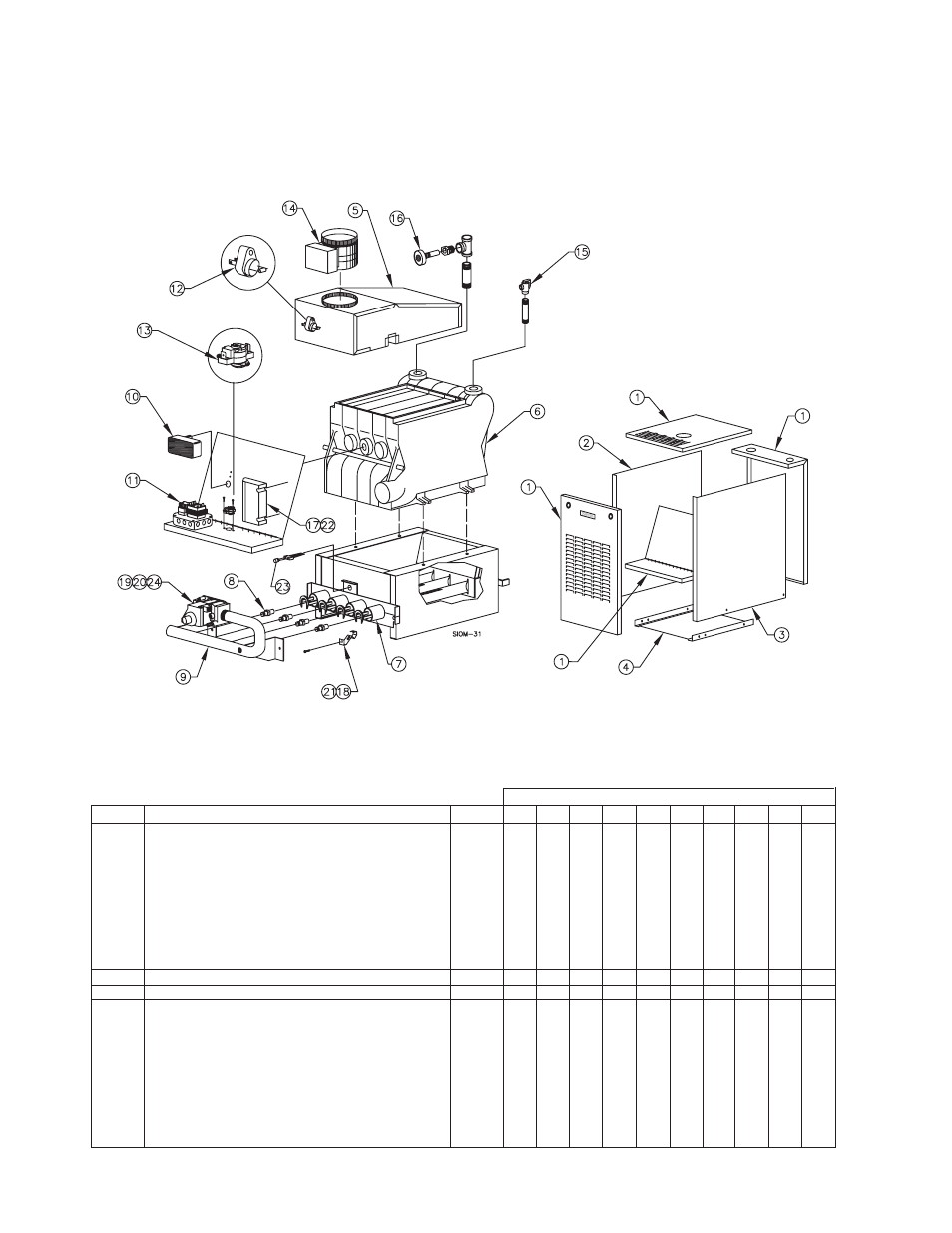

GB100W NATURAL OR PROPANE BOILER

INSTALLATION AND OPERATING INSTRUCTIONS

1

Top, Rear, Inner Front and Front Panels

55703

1

55704

1

55705

1

55706

1

55707

1

55708

1

55709

1

55710

1

55711

1

55712

1

2

Left Side Panel

55701

1

1

1

1

1

1

1

1

1

1

3

Right Side Panel

55702

1

1

1

1

1

1

1

1

1

1

4

Floor Pan

55813

1

55814

1

55815

1

55816

1

55817

1

55818

1

55819

1

55820

1

55821

1

55822

1

REPLACEMENT PARTS

GB100 SERIES REPAIR PARTS

Number of Sections

Ref #

Name of Part

Part No.

3

4

5

6

7

8

9

10

11

12
