Page 18 GB100W NATURAL OR PROPANE BOILER
INSTALLATION AND OPERATING INSTRUCTIONS
button. The button should pop back and the pilot
remain lit. If it goes out repeat steps 5 - 10.
*If the button does not pop up when released, stop
and immediately call your service technician or gas
supplier.
*If the pilot will not stay lit after several tries, turn the
gas control knob to “OFF” and call your service
technician or gas supplier.
11. Replace the pilot access panel.
12. Turn the gas control knob counterclock-wise
to “ON”.
13. Replace control access panel.
14. Turn on all electric power to the appliance.
15. Set thermostat to desired setting.
16. If the appliance will not operate, follow the
instructions “TO TURN OFF GAS TO APPLIANCE”
and call your service technician or gas supplier.
1. STOP! Read the safety information above.
2. Set the thermostat to lowest setting.
3. Turn off all electric power to the appliance.
4. Remove control access panel.
5. Turn the gas control knob clockwise to “OFF”.
6. Wait five (5) minutes to clear out any gas. Then
smell for gas, including near the floor. If you smell
gas, STOP! Follow “B” in the safety information
above. If you don’t smell gas, go to the next step.
7. Remove the pilot access panel located just above
the burner tubes.
8. The pilot’s located behind this panel.
9. Turn the knob on the gas control counterclock-wise
to “PILOT”.
10. Push and hold down the red button next to the
control knob. Light the pilot with a match and wait
approximately one (1) minute before releasing the
A. 1. If this appliance is equipped with a pilot that must
be lit by hand, follow lighting instructions exactly
when lighting the pilot.
2. If this appliance is equipped with an ignition
device that automatically lights the pilot or burner,
follow operating instruction, do not try to light the
pilot or burner by hand.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next to the
floor because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don’t try to repair it, call a qualified service
technician. Force or attempted repair may result in a fire
or explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING
If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.

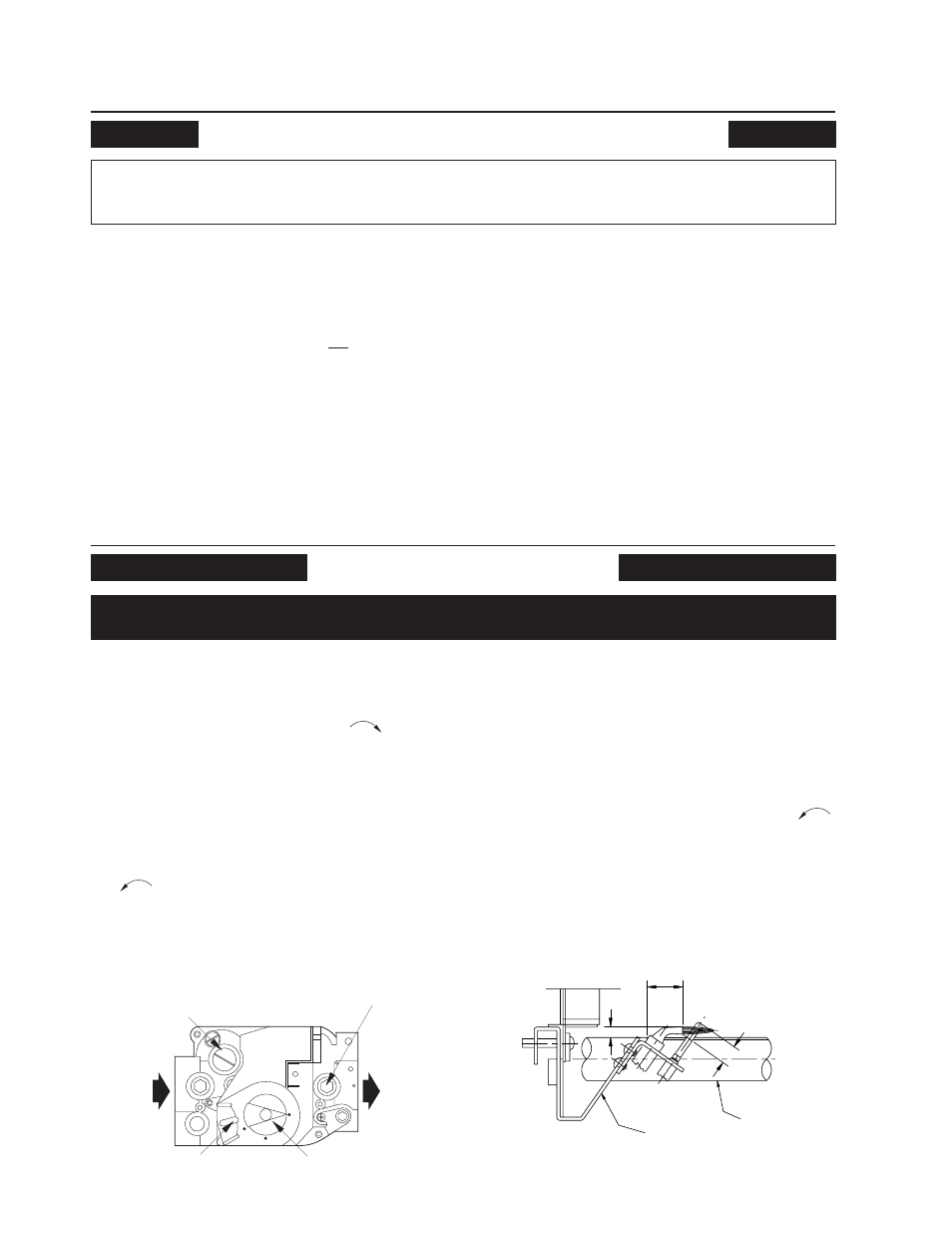

LIGHTING INSTRUCTIONS
Continuous Pilot-Honeywell VR8200A and VR8300A (Natural or Propane), VRF8200P
and VR8300C (Propane Only)
PILOT
ON
OFF
GAS CONTROL KNOB RED RESET BUTTON
PRESSURE REGULATOR
ADJUSTMENT (UNDER
CAP SCREW) OUTLET PRESS. TAP
GAS INLET GAS OUTLET
CONTINUOUS PILOT
PILOT
BRACKET
5/16
±1/16
1"
±1/16
3/8" - 1/2"
FLAME
ON PROBE
BURNER
TUBE
