8 Installing the washer-dryer
IMPORTANT : Do not use excessive force.
Damage to the couplings can result. The
couplings should be tightened by hand; a
tool should only be used if a leak occurs.
IMPORTANT: Transit screws and spacers
must be removed before operating the
machine to allow proper operation of the
machine and to prevent damage to the
appliance.
Installing the washer-dryer
Unpacking the washer-dryer
•
Carefully remove the packing materials with care
not to damage the drain hose and power cord
that are shipped installed on the machine.
Check that the machine is intact. Report any
damage immediately.
•
Position the washer-dryer near the desired
installation position.

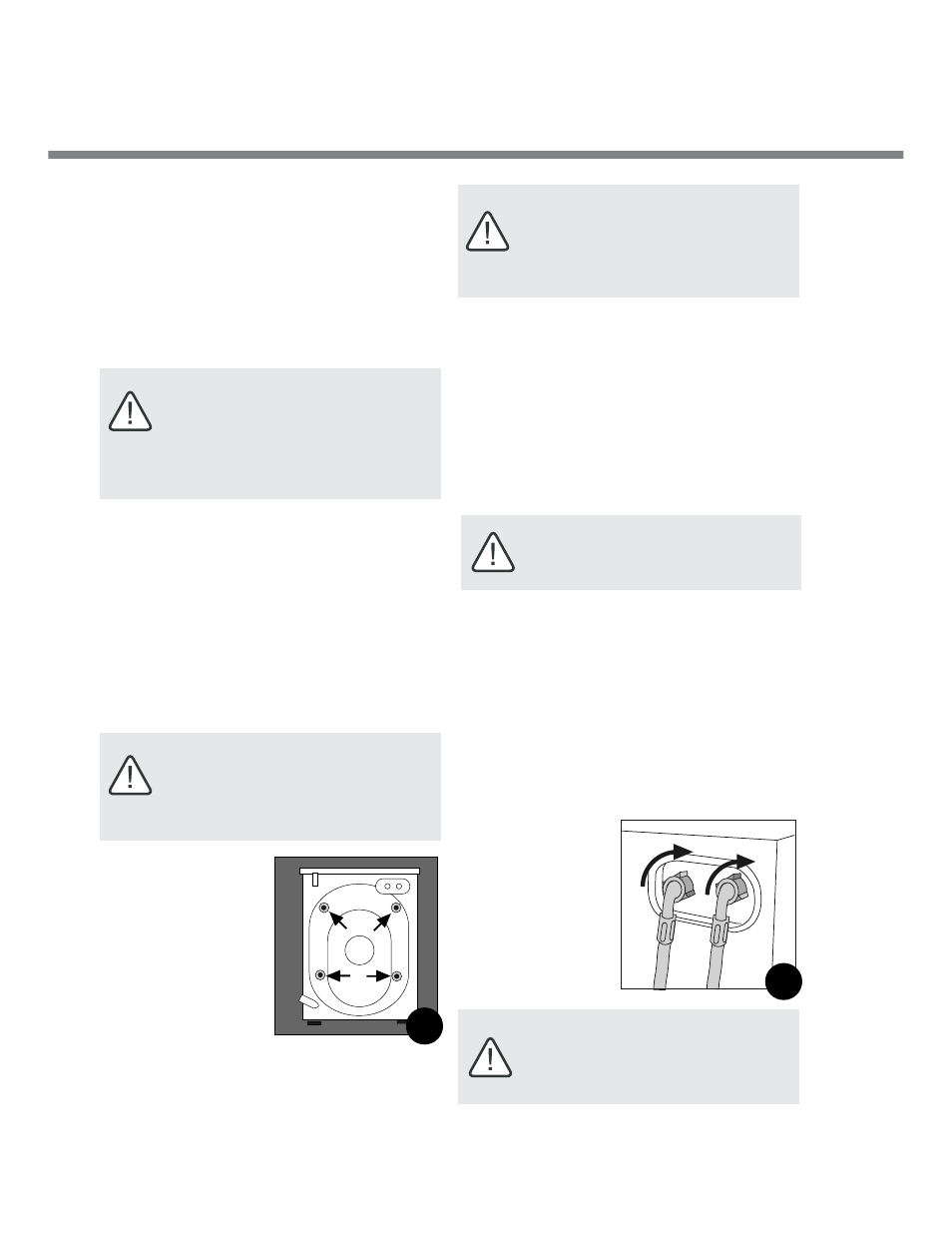

Removing the transit screws
For transportation, the inside of the machine is
supported by screws, rubber grommets and spacers
on the back panel. Before using the washer-dryer,
these items MUST be removed.
•
After positioning
the washer-dryer
near the
installation
location, remove
the four screws
(Fig.1), with the
rubber grommets
and plastic spacers
that are attached
to them.
•
Use the plastic plugs (provided in the accessories
bag) to fill in the holes.
Fig 1
Connecting the water inlets
If the water pipes you will be connecting to are new
or unused, run the water until clear to remove any
debris that could clog the water valve screens or
valves before connecting the machine. NOTE: Supply
shut-off valves should be easily accessible.
IMPORTANT : Water pressure MUST range
within the values indicated on the
“Technical Data” chart
•
Included in the accessories supplied with your
machine are 2 inlet hoses with 4 rubber washers
pre installed. Check that the rubber washers are
installed in the ends of the inlet hoses to make a
water tight seal at each connection point.
•
Connect the straight ends of the water inlet
hoses to the supply taps that have ¾” BSP
thread (standard hose bib).
•
Connect the 90º angled ends (20 mm thread) of
these hoses to
the inlet valves
on the back of
the machine (Fig.
2). NOTE: Water
Inlet valves are
color coded:
Red (Hot) &
White (Cold).
H
C
Fig 2
WARNING! Plastic bags, styrofoam, nails
and other packaging parts are not
children’s toys and can be potentially
dangerous. Destroy the carton and plastic
bags after the washer-dryer has been
unpacked.
IMPORTANT : Retain the transit screws,
spacers and rubber tubes. These items
should be reinstalled to prevent damage if
or when you transport the machine in the
future.
