OPERATION

The 596LB will operate satisfactorily under most condi-

tions of humidity, heat and cold. Dropping the microphone or

other severe mechanical shocks should be avoided.
SPECIFICATIONS

(Test conditions unless otherwise specified: audio output

measured between white lead and green lead; PTT switch

depressed; dc voltmeter 10 MΩ or greater input impedance;

ac voltmeter 1 MΩ or greater input impedance.)
Type

Dynamic

Frequency Response

200 to 5,000 Hz (see Figure 2)

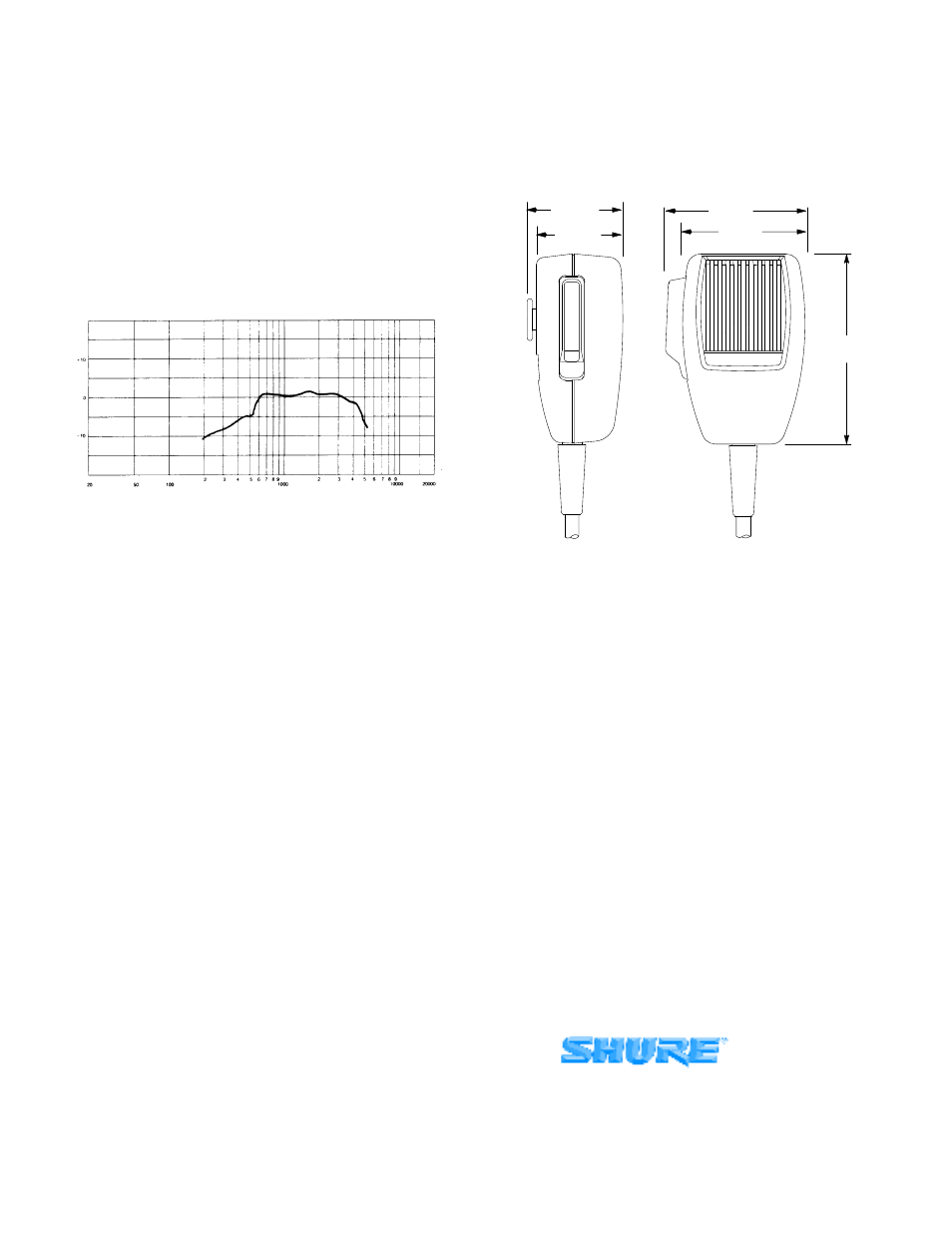

TYPICAL FREQUENCY RESPONSE

FIGURE 2

FREQUENCY IN HERTZ

RELA

TIVE RESPONSE IN dB

Polar Pattern

Omnidirectional

Impedance (at 1,000 Hz)

400 ohms

Output Level (at 1,000 Hz)

–33 dB ± 3.0 dB

(0 dB = 1 V/10 Pascal. 1 Pa = 94 dB SPL)

Hum Sensitivity

36 dB maximum equivalent SPL per 1 mOe electromag-

netic field

Environmental Conditions

Operating Temperature: –40° to 74° C (–40° to 165° F)

Storage Temperature:

–54° to 85° C (–65° to 185° F)

Relative Humidity:

0 to 95% (non-condensing)

. . . . . . .

Switch

Double-pole, double-throw, push–to–talk, normally open

Cable

1.5 m (5 ft) extended length, 4-conductor (2 shielded), vi-

nyl-jacketed coil-cord

Construction

Case

Black textured high-impact ARMO-DUR

. . . . . .

Dimensions

See Figure 3

OVERALL DIMENSIONS

FIGURE 3

ББ

ББББ

ББ

БББ

ББ

БББ

ББББ

ББ

ББББ

ББ

85.7 mm

(3–3/8 in.)

(2–3/16 in.)

63.5 mm

(2–1/2 in.)

42.9 mm

(1–11/16 in.)

38.9 mm

(1–17/32 in.)

55.6 mm

Net Weight

260 grams (9.17 oz) with cable

CERTIFICATION

Conforms to European Union directives, eligible to bear

CE marking; meets European Union EMC Immunity Re-

quirements (EN 50 082–1, 1992).
FURNISHED ACCESSORY

Mounting Bracket (3 in kit)

RK6MB

. . . . . . . . . . . . . . . . .

REPLACEMENT PARTS

For additional service or parts information, please contact

Shure’s Service department at 1–800–516–2525. Outside

the United States, please contact your authorized Shure

Service Center.
