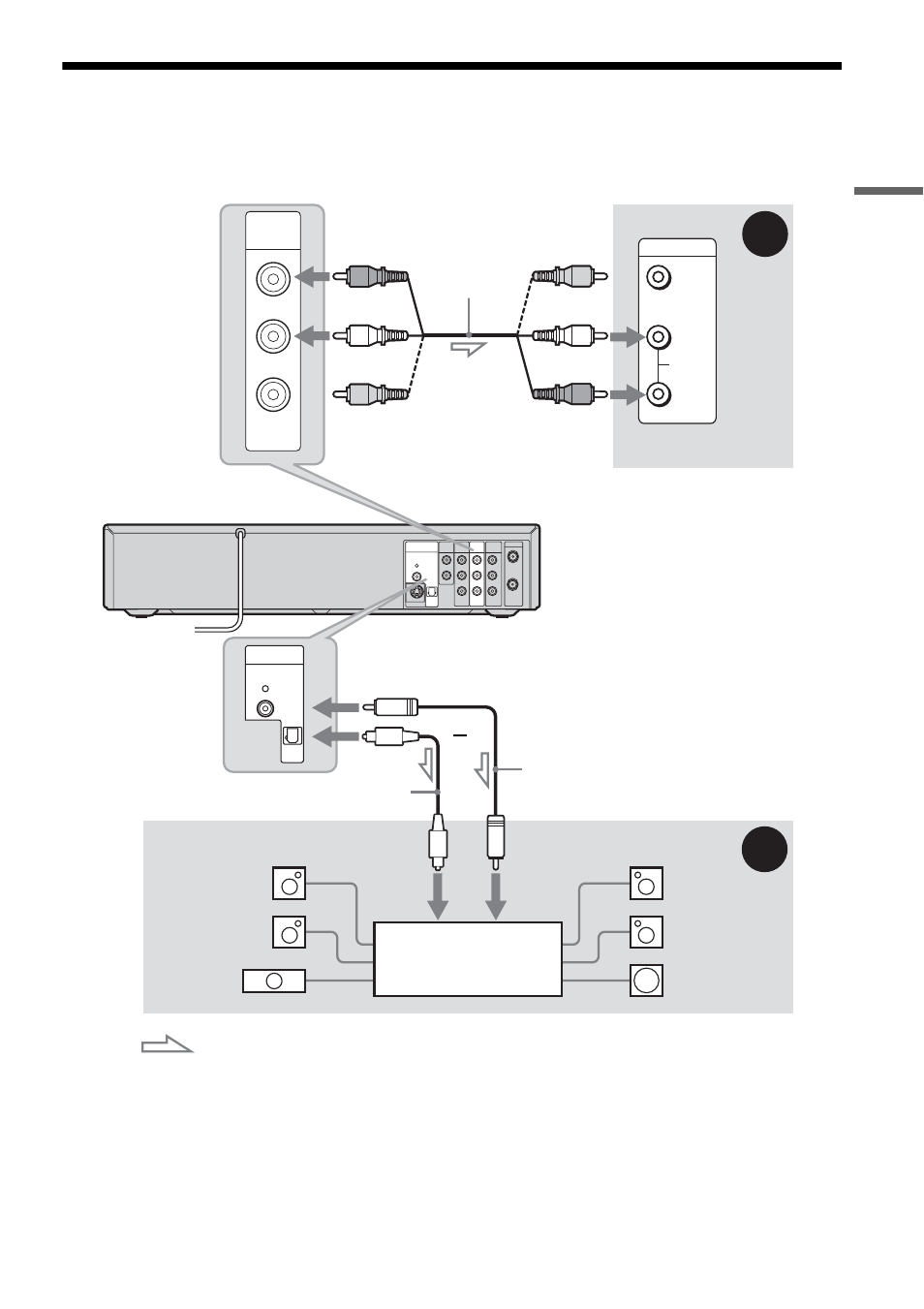

Step 4: Connecting to Your AV/Amplifier (Receiver)
Select one of the following patterns A or B, according to the input jack on your AV amplifier (receiver).
This will enable you to listen to DVD audio tracks through your AV amplifier (receiver).
* The yellow plug is used for video signals (page 18).
z Hints
• For correct speaker location, see the operating instructions supplied with the connected components.
• Digital audio signal can also be output when playing a VHS tape.
