Setting up the C
omp
onen
t V
ideo S
wit
cher

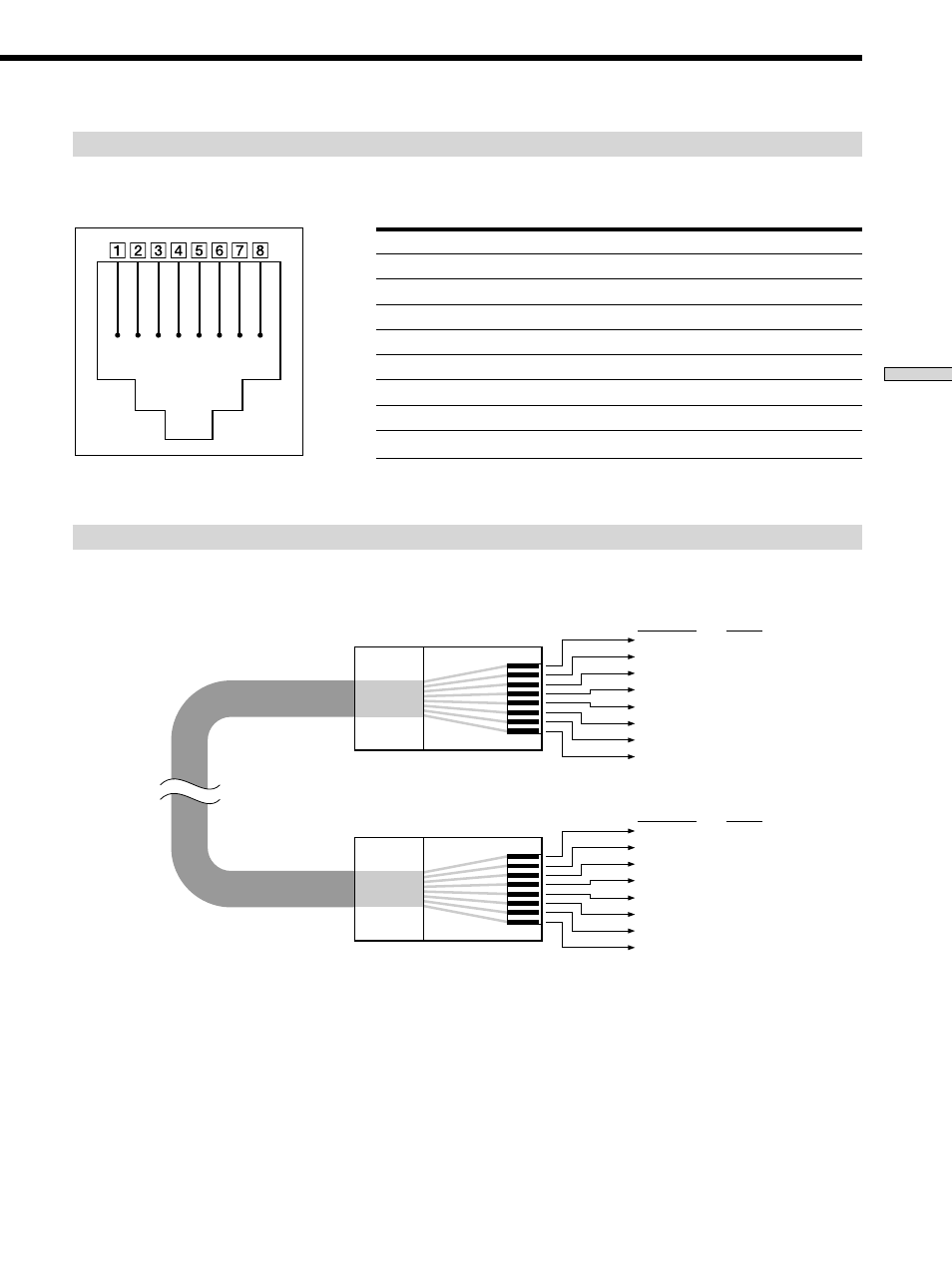

CAT5 RJ45 Video Pinout
The CAT5 RJ45 pinouts use the T568B standard.
Refer to the illustration below.
Pinout Wire color
 Pin 1 BLUE/Pb (R) White/Orange
 Pin 2 BLUE/Pb (T) Orange
 Pin 3 GREEN/Y (R) White/Green
 Pin 4 GND Blue
 Pin 5 +11V White/Blue
 Pin 6 GREEN/Y (T) Green
 Pin 7 RED/Pr (R) White/Brown
 Pin 8 RED/Pr (T) Brown
CAT5 cable
Before installation, be sure to verify the CAT5 wiring connection is correct.
Use Category 5e or Category 6 cable.
White/Orange
Wire color
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
1
Pin No.
2
3
4
5
6
7
8
White/Orange
Wire color
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
1
Pin No.
2
3
4
5
6
7
8
CAT5 cable
RJ45 connector
RJ45 connector
