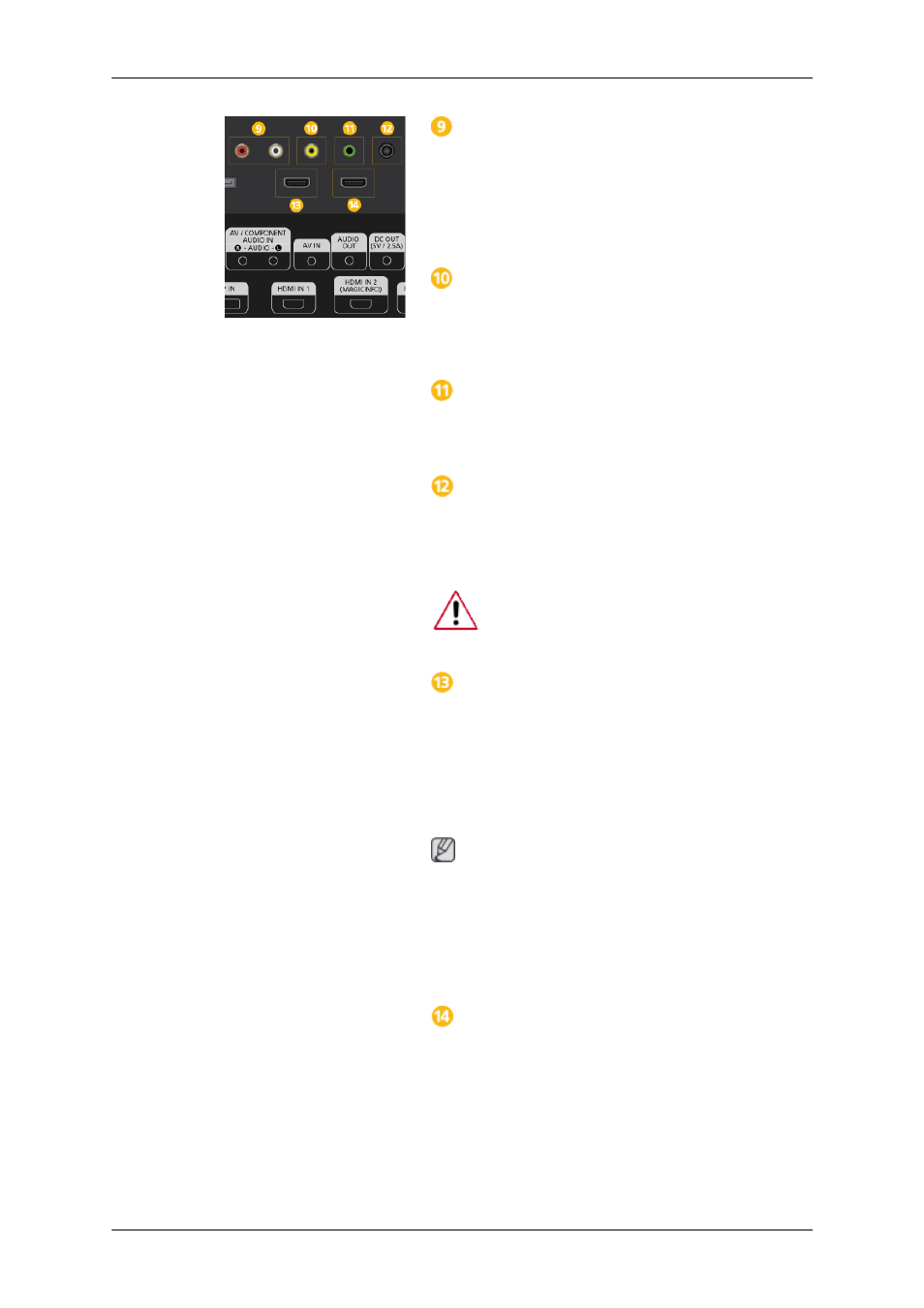

AV/COMPONENT AUDIO IN [R-AUDIO-
L]
Connect the [AV/COMPONENT AUDIO IN
[R-AUDIO-L]]
port on the monitor to the audio
output port on the PC or on the external de-
vice using an audio cable.
AV IN
Connect the [AV IN] terminal of your monitor
to the video output terminal of the external
device using a VIDEO cable.
AUDIO OUT
Connect a headphone or an External speak-
er.
DC OUT
Make sure to use connecting [DC OUT] ter-
minal to the authorized TV-Tuner Box
[SBB_DTC/ZA].
Otherwise, this may result in damage
to the product.
HDMI IN 1
• Connect the [HDMI IN 1] terminal at the
back of your LCD Display to the HDMI
terminal of your digital output device us-
ing a HDMI cable.
• Up to HDMI 1.3 can be supported.
Note
• A normal external device (DVD player or
camcorder, etc.) or a TV tuner box can be
connected to the [HDMI IN 1] terminal.
• To use a TV tuner box, make sure to con-
nect it to the [HDMI IN 1] terminal.
HDMI IN 2 (MAGICINFO)
• Connect the [HDMI IN 2 (MAGICINFO)]
terminal at the back of your LCD Display
to the HDMI terminal of your digital output
device using a HDMI cable.
• Up to HDMI 1.3 can be supported.
