ASSEMBLY INSTRUCTIONS

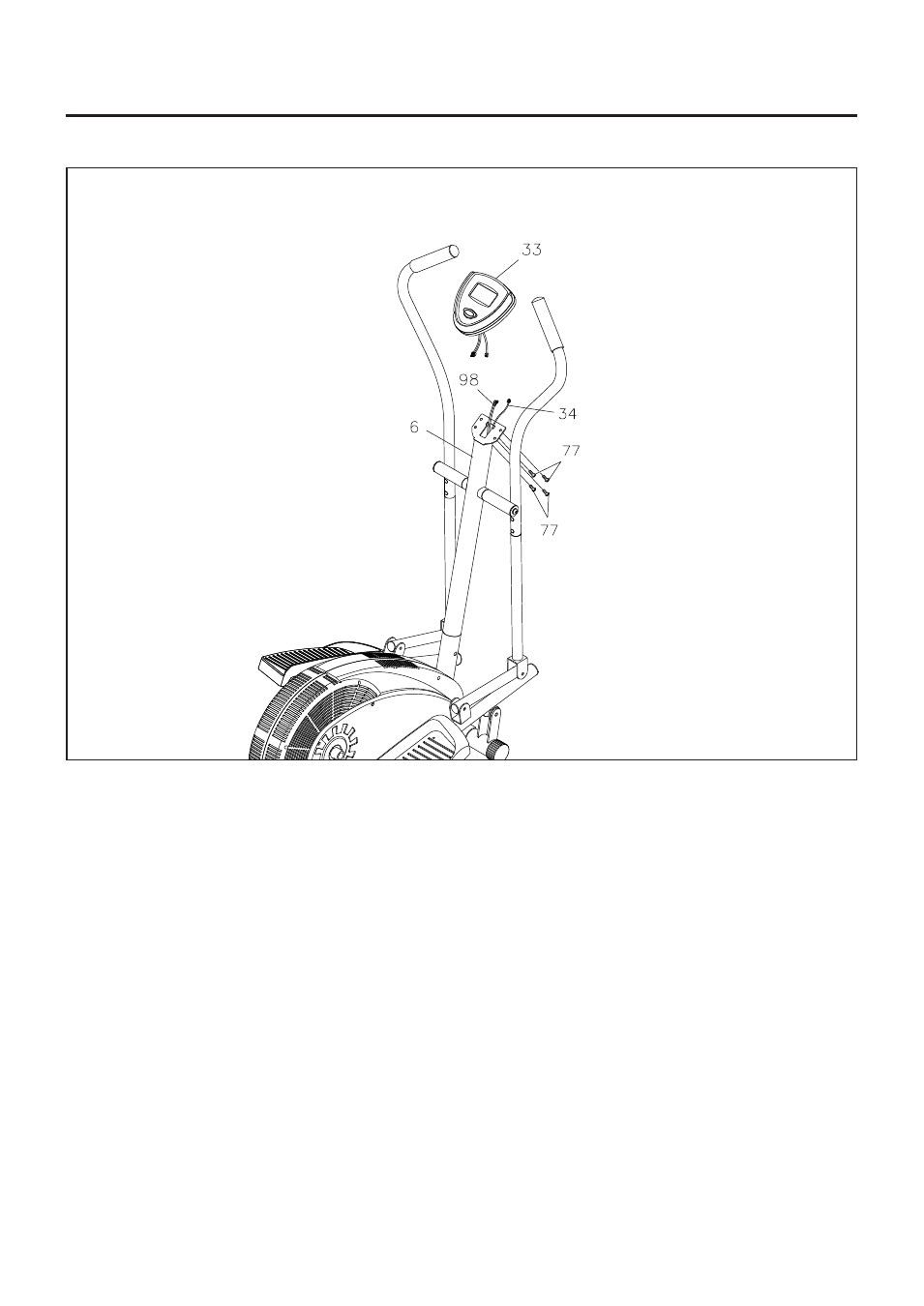

STEP 10
Install four AA batteries into the METER(33). Four batteries are included. See page 14 for detailed battery
installation instructions. Connect the SENSOR CONNECTION WIRE(34) and the CONTROL WIRE(98) to
the EXTENSION WIRES on the METER(33). Push the excess wires back into the UPRIGHT(6). Attach the
METER(33) to the plate on the UPRIGHT(6) with ROUND HEAD SCREWS(M5x0.8x15mm)(77).
CAUTION: Be careful not to damage the WIRES(34, 98) when attaching the METER(33).
