Installation
] 1
The FM Extender Cable should be placed inside the vehicle, as close as possible to the
vehicle’s FM antenna. A test mounting should be done first using the included suction cup
mounts to test the installation. Once an acceptable location has been found, you will remove
the suction cups and permanently adhere the FM Extender Cable using the adhesive mounts.
To install the FM Extender Cable in your vehicle, follow these instructions:

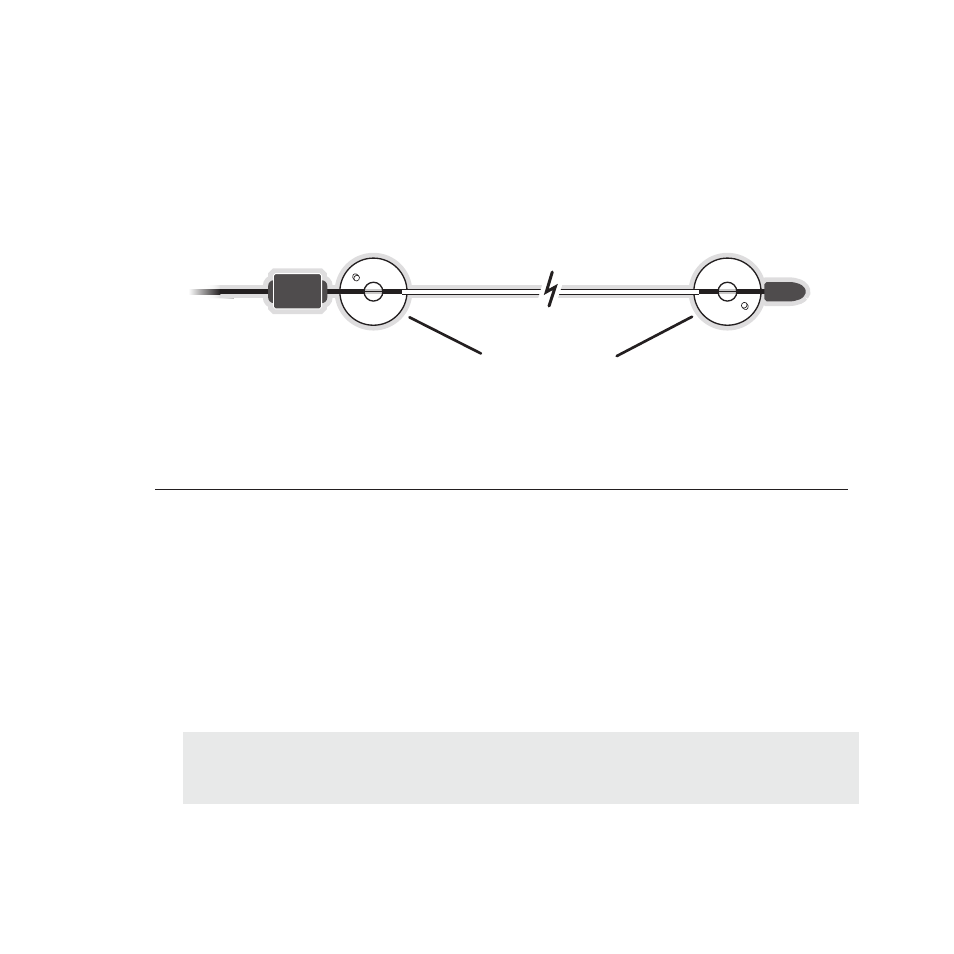

Attach the suction cups to the FM Extender Cable in the positions shown in Figure 9.
Suction Cups
In this step, follow the specific instructions in sub-step a, b, c, or d depending on the
type of FM antenna in your vehicle:
a Installation Instructions for Vehicles with aerial Type fender mounted fm antenna
For vehicles where the FM radio antenna is located on the front fender, the FM
Extender Cable should be mounted vertically on the front windshield at the edge of
the glass nearest to the antenna. (Figure 10)
For vehicles where the FM radio antenna is located on the rear fender, the FM
Extender Cable should be mounted vertically on the rear window at the edge of the
glass nearest to the antenna. (Figure 11)
Attach the FM Extender Cable to the section of glass closest to the FM antenna in
a vertical orientation. (Figure 10 or Figure 11) The wire between the two suction
cups should be pulled taut and as straight as possible, and should not obstruct the
driver’s view.
1.
2.
figure 9 figure 9
Important Caution: In some states it may not be legal to put the FM Extender
Cable on the windshield glass. In this case, the FM Extender Cable should be
mounted on the A-Pillar adjacent to the FM antenna. Important Caution: In some states it may not be legal to put the FM Extender
Cable on the windshield glass. In this case, the FM Extender Cable should be
mounted on the A-Pillar adjacent to the FM antenna.
