Chapter 1: Introduction

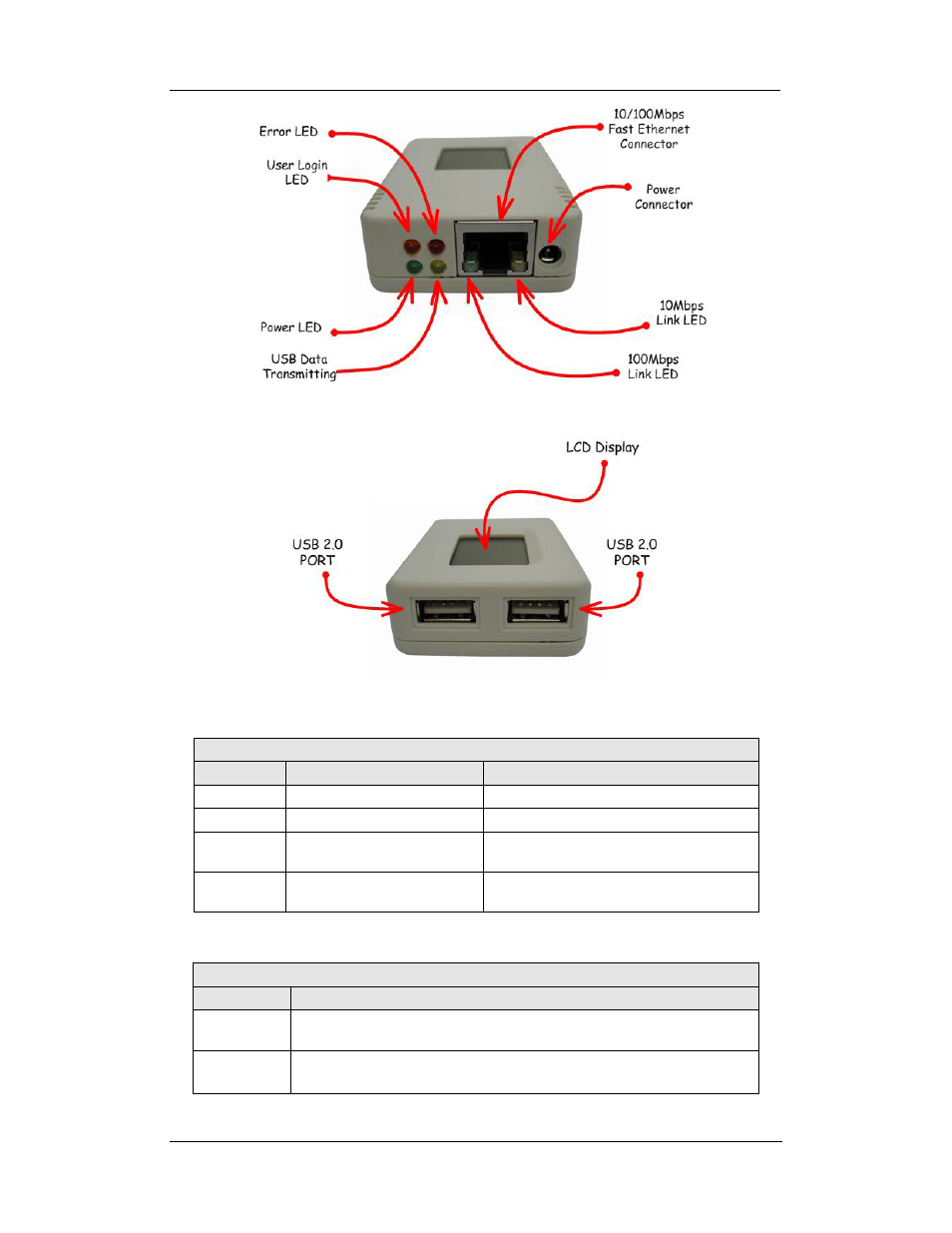

Fig.2. WebCAM Front View
Fig.3. WebCAM Back View
LED Status Indicators on WebCAM
Light color
Signal definition
Condition description
Green
Power state
On: Normal power
Red
Error Condition
On: Error condition occurred
Orange
Logon state
On: When there is user logon and
receive the image.
Yellow
USB data activity
Flash when there is data
transmit/receive on the USB.
Fig.4. WebCAM Status LED Indicator
Light indicators on WebCAM LAN Port LED
Light color
Condition description
Green
On: Internet correspond speed is 100M
Flash: Data transmitting/receiving
Yellow
On: Internet correspond speed is 10M
Flash: Data transmitting/receiving
Fig.5. WebCAM LAN LED Indicators
