I I I . Y o u r C h a i r & I t s P a r t s 7
Weight
Quickie V-100
65 lbs. with swing-away footrests and
armrests, without batteries
Drive Wheels
12" Mag
Tire types:
Standard - pneumatic
Option - airless insert
Joystick
Standard - Integral to controller (right
hand or left hand mount)
Batteries
(2 deep cycle batteries required to
operate chair)
Option - group 22 NF lead acid,
22 NF gel
Option - U1 lead acid, U1 gel cell
Battery Charger
Standard - dual mode (Schauer)
Option - dual mode (Lester)
Colors
Refer to Order Form
Frame Dimensions
Frame width: Standard - 14", 16",
18", 20"
Sling depth: 14" - 18"
Option-cushion: 2", 3", 4"
Backrest
Quickie V-100 Folding:
Standard 16"-17"
Option - 18"-19"
Footrest
Standard - Swing-away with compos-
ite footplates and heel loops.
Option - articulating legrests,
elevating legrests, angle-
adjustable, extended and platform
flip-up footplates, toe loops, exten-
sion tubes.
Casters
Standard - 8"pneumatic
Option - 8" airless insert
Armrests
Standard - height-adjustable with
standard or full length pad
Option - Flip-back, height-adjustable
Wheel Locks
Standard - Push-to-lock, pull-to lock
Option - 6" or 9" extension handles
All features may not be available with
some chair setups or in conjunction
with another chair feature. Please
consult your supplier for more
information. Your authorized sup-
plier can also provide you with
more information on accessories.
I I I . Y o u r C h a i r & I t s P a r t s
930482 Rev. A
6
1
2
3
4
5
6
7

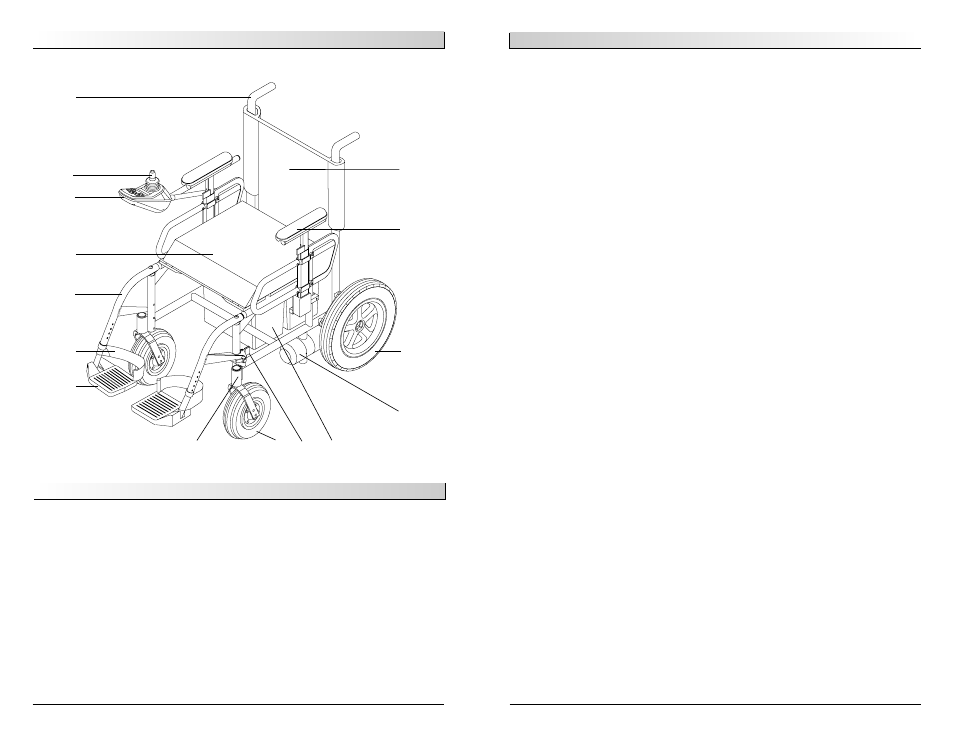

1. Push Handle
2. Joystick
3. Integral controller
4. Seat cushion
5. Swing-away footrest
6. Heel loop
7. Footplate
8. Backrest
9. Armrest
10. Drive wheel
11. Motor
12. Battery
13. Swing-away,
release latch
14. Caster tire
15. Caster housing
8
9
10
11
15 14 13 12
Q u i c k i e V - 1 0 0 ( R i g i d f r a m e )
