930482 Rev. A
I X . S e t - U p , A d j u s t m e n t & U s e 31
H. WHEEL LOCKS
Wheel locks are installed by Sunrise when requested on
the Quickie V-100
1. Adjustment
The wheel lock mounts on a split clamp system. Use a
torque setting of 100 in./lbs when adjusting wheel
locks.
a. Loosen the screws on the side of each clamp. Do
not remove the screws.
b. Slide assembly toward rear wheel until clamp
embeds into tire to prevent wheel movement
when in locked position.
c. Tighten screws.
I. CHECK-OUT
Once the wheelchair is assembled and adjusted, it
should roll smoothly and easily. All accessories should
also perform smoothly.
After the wheelchair has been set up be sure the chair
performs to your specified operational settings (see
page 32). If the chair does not perform to specifica-
tions, turn the wheelchair OFF immediately and repro-
gram operational specifications using the QTRONIX
Programming Pad.
Repeat this procedure until the wheelchair performs to
specifications before attempting active use of the
wheelchair.
If you have any problems, follow these procedures:
1. Review the Set-up, Adjustment & Use section
and Operating Guide to make sure chair was
properly prepared.
2. If your problem persists, contact your authorized
supplier. If you still have a problem after con-
tacting your authorized supplier, contact Sunrise
customer service. See the introduction page for
details on how to contact your authorized sup-
plier or Sunrise customer service.
I X . S e t - U p , A d j u s t m e n t & U s e
930482 Rev. A
30
5. Adjusting Armrest Receiver Fit
To tighten or loosen the fit of the outer armpost in the
receiver:
a. Loosen the four bolts on the sides of the receiver.
b. With the armrest in the receiver, squeeze the
receiver to achieve the desired fit.
c. Tighten the four bolts.
6. Adjusting Inner Armpost Fit
a. Two set screws are installed in the outer armpost.
b. Turn the set screws in or out until the desired fit
is achieved.

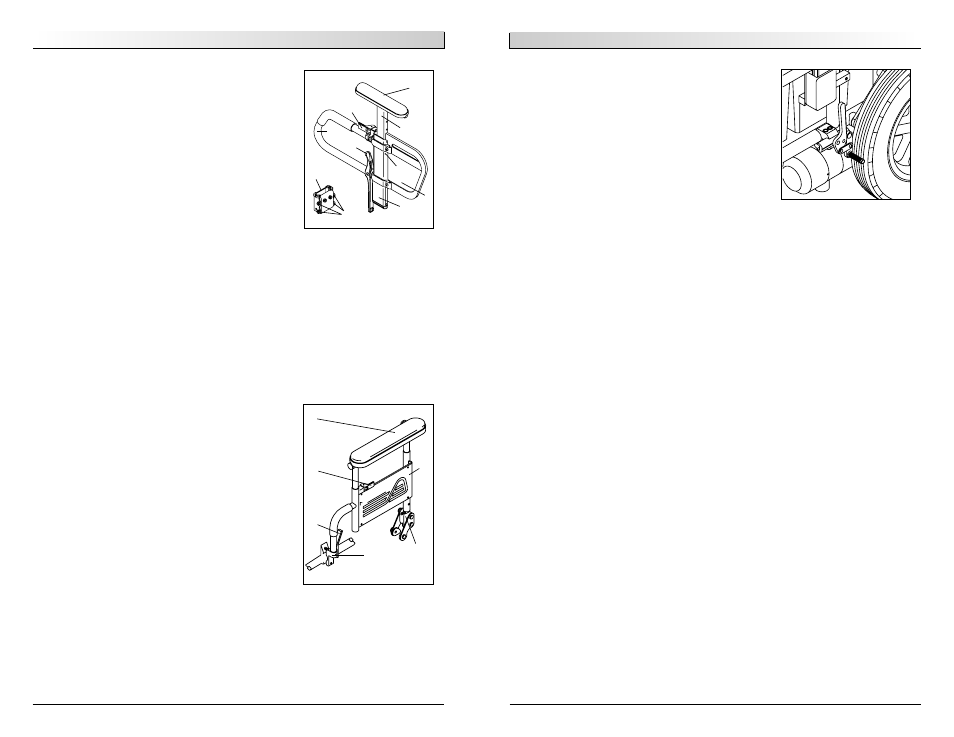

G. FLIP-BACK HEIGHT-ADJUSTABLE ARMRESTS
(OPTIONAL)
Flip-back height-adjustable armrests are installed by
Sunrise.
1. Height Adjustment
a. Release the upper securing lever.
b. Slide armpad up or down to
desired height.
c. Return lever to locked position.
2. Flipping Armrest Back and Removing Armrest
a. Depress the release latch and pull arm toward
back of wheelchair.
b. To remove, pull up on armrest. Pin securing
armrest will automatically release.
c. To return armrest to operating position, push
armpad down until it locks firmly into place.
Flip-Back Height-Adjustable
Armrest Key
1. Armrest Pad
2. Upper Securing Lever
3. Release Latch
4. Armrest Panel
5. Rear Receiver
6. Armrest Receiver
Height-Adjustable
Armrest Key
1. Outer armpost
2. Standard receiver
3. Release lever
4. Armrest pad
5. Transfer bar
6. Side panel
7. Outer armpost tension
adjustment set screws
8. Inner armpost
9. Receiver adjustment bolts
10.Release Lever
1
10
6
7
8
4
3
5
1
2
3
6
5
4
9
2
