45
REF. NO. PART.NO DESCRIPTION REMARK REF. NO. PART.NO DESCRIPTION REMARK

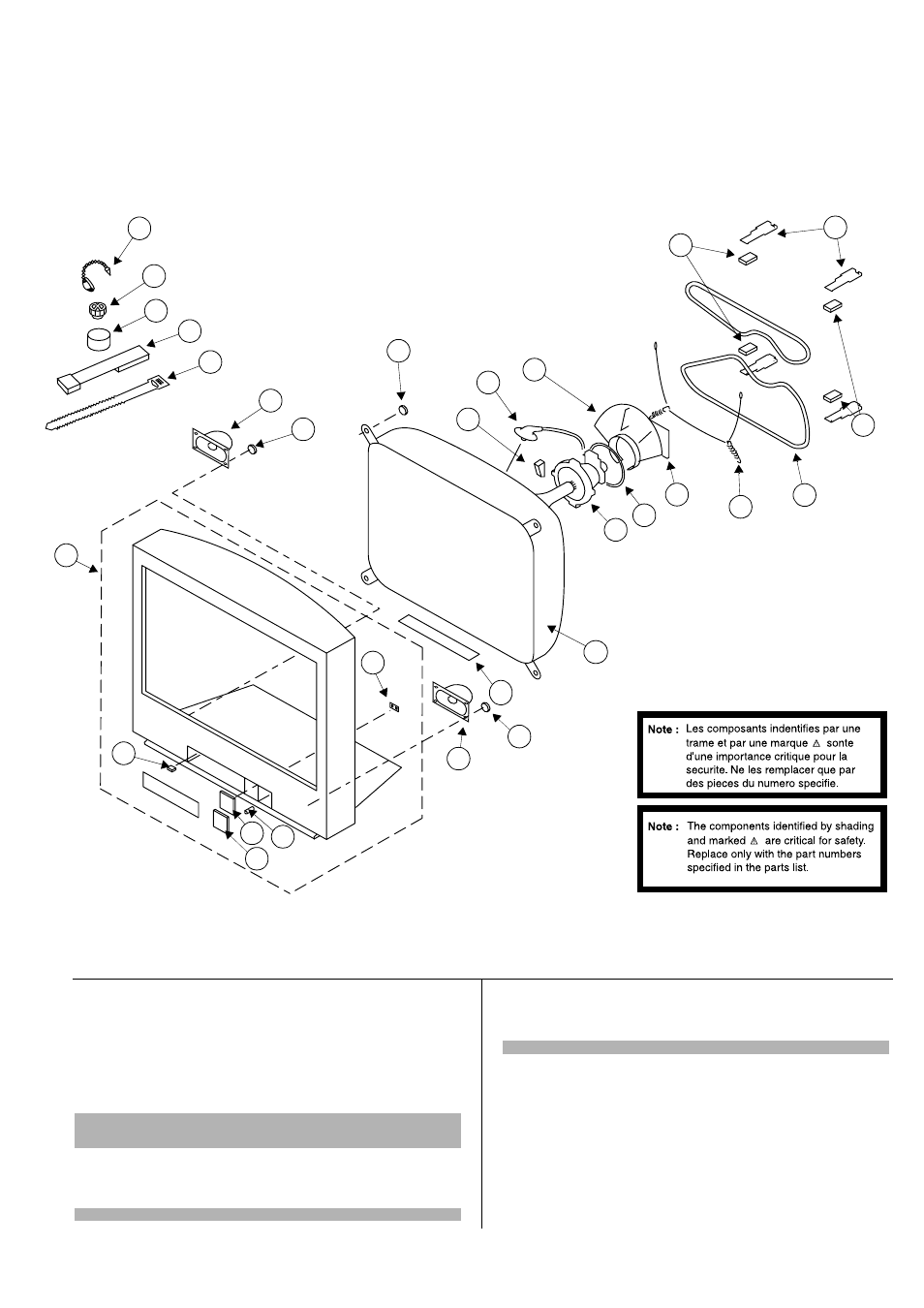

6-4. KV-21FT2 PICTURE TUBE
51 X-4200-622-1 BEZNET ASSY (KV-21LT1) 52-56
52 4-205-398-01 SPRING, DOOR
53 4-205-396-11 BUTTON, POWER (BARE)
54 4-205-392-11 WINDOW ORNAMENTAL (BARE)
55 4-204-426-01 SPRING
56 4-205-389-01 GUIDE, LIGHT
57 4-204-666-01 SHEET, BLOTTING
58 £ 8-738-836-05 PICTURE TUBE (A51LPT60X) (SD-313)
59 £ 8-451-505-11 DEFLECTION YOKE (Y21RSA-S)
60 1-452-728-61 COIL, NA ROTATION (RT-154)
61 *A-1639-004-A C BOARD, COMPLETE
62 4-369-318-21 SPRING, TENSION
63 £ 1-419-187-11 COIL, DEGAUSSING
64 4-203-390-11 CUSHION, DGC
65 4-204-900-01 BAND, DGC
66 4-202-554 01 HOLDER, HV CABLE
67 £ 1-251-839-21 CAP ASSY, HIGH VOLTAGE
68 3-704-495-01 SPACER, DY
69 4-365-808-01 SCREW (5), TAPPING
70 1-529-710-11 SPEAKER, (5X9CM)
71 7-685-648-79 SCREW +BVTP 3X12 TYPE 2 IT-3
72 4-308-870-00 CLIP, LEAD WIRE
73 1-452-094-00 MAGNET, ROTATABLE DISK; 15MM Ø
74 1-452-032-00 MAGNET, DISK; 10MM Ø
75 X-4387-214-1 PERMALLOY ASSY, CORRECTION
76 3-701-007-00 BAND, BINDING
71
59
51
75
76
73
52
60
66
70
58
69
72
67
53
57
74
62
64
65
54 55
56
61 63
64
68
71
70
