14

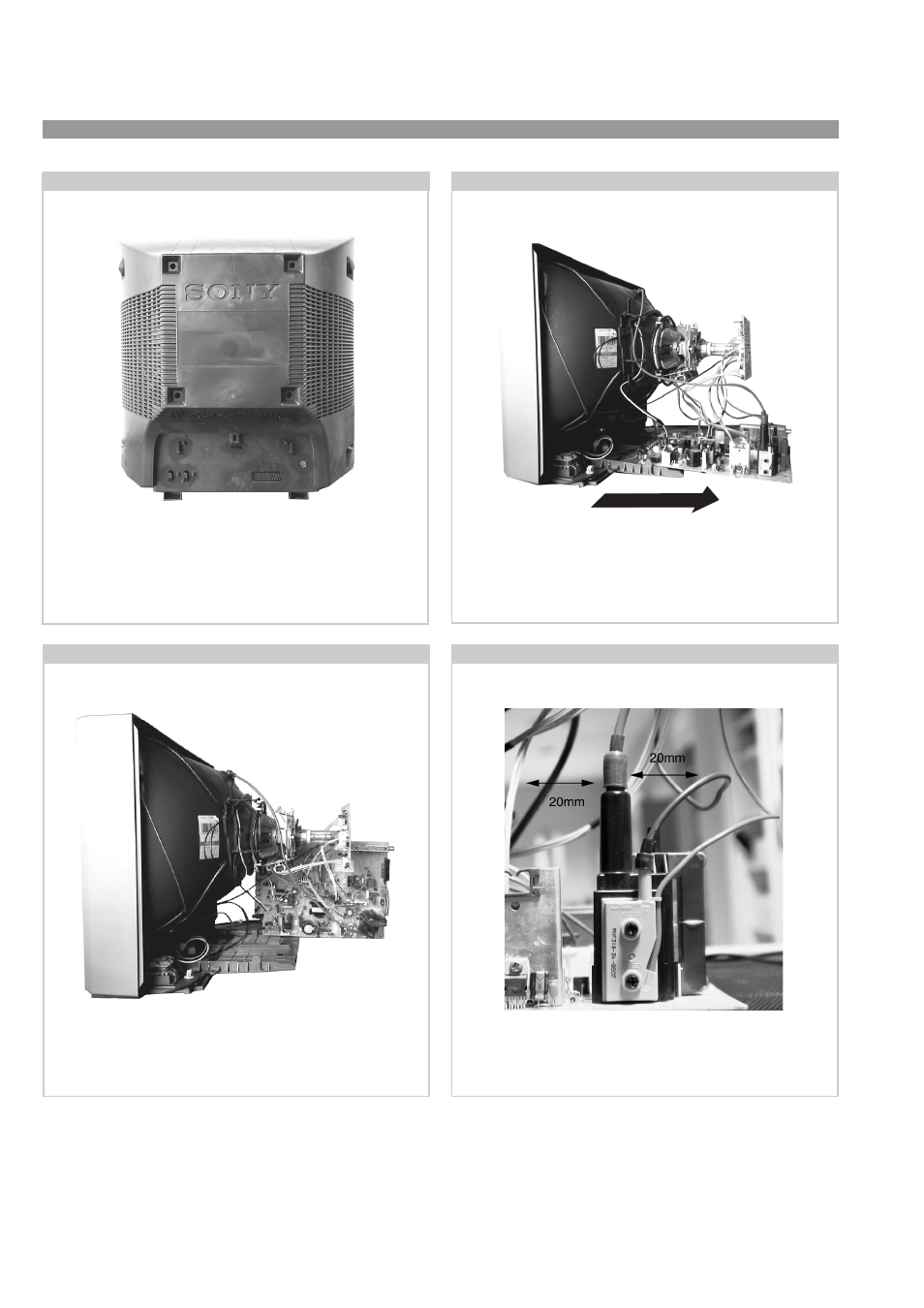

Remove the rear cover fixing screws indicated. Pull the rear
cover straight back until clear of chassis.
2-7. Rear Cover Removal
To remove the chassis release the clips indicated at opposite
sides of the main bracket and slide the chassis away from the
beznet. Ensure that the interconnecting leads are released from
their purse locks to prevent damage being caused.
Position the A board as shown to gain access to its solder side.
Take care not to trap the interconnecting leads in the process.
2-9. Service Position
2-8. Chassis Removal and Refitting
2-10. Wire Dressing
Ensure that all wires do not touch heat-sinks and high tempera-
ture hot spots. All wires must be kept at a minimum distance of
20mm away from the EHT lead.
KV-21FT2
=>
=>
=> =>
=>
=>
=>
