3.4 Drive mounting
You can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottom-
mounting holes. See Figure 2 for drive mounting dimensions. Follow these important mounting precautions when mount-
ing the drive:
• Allow a minimum clearance of 0.030 inches (0.76 mm) around the entire perimeter of the drive for cooling.
• Use only 6-32 UNC mounting screws.
• The screws should be inserted no more than 0.150 inch (3.81 mm) into the bottom or side mounting holes.
• Do not overtighten the mounting screws (maximum torque: 6 inch-lb).
Recommended
case temperature
measurement location

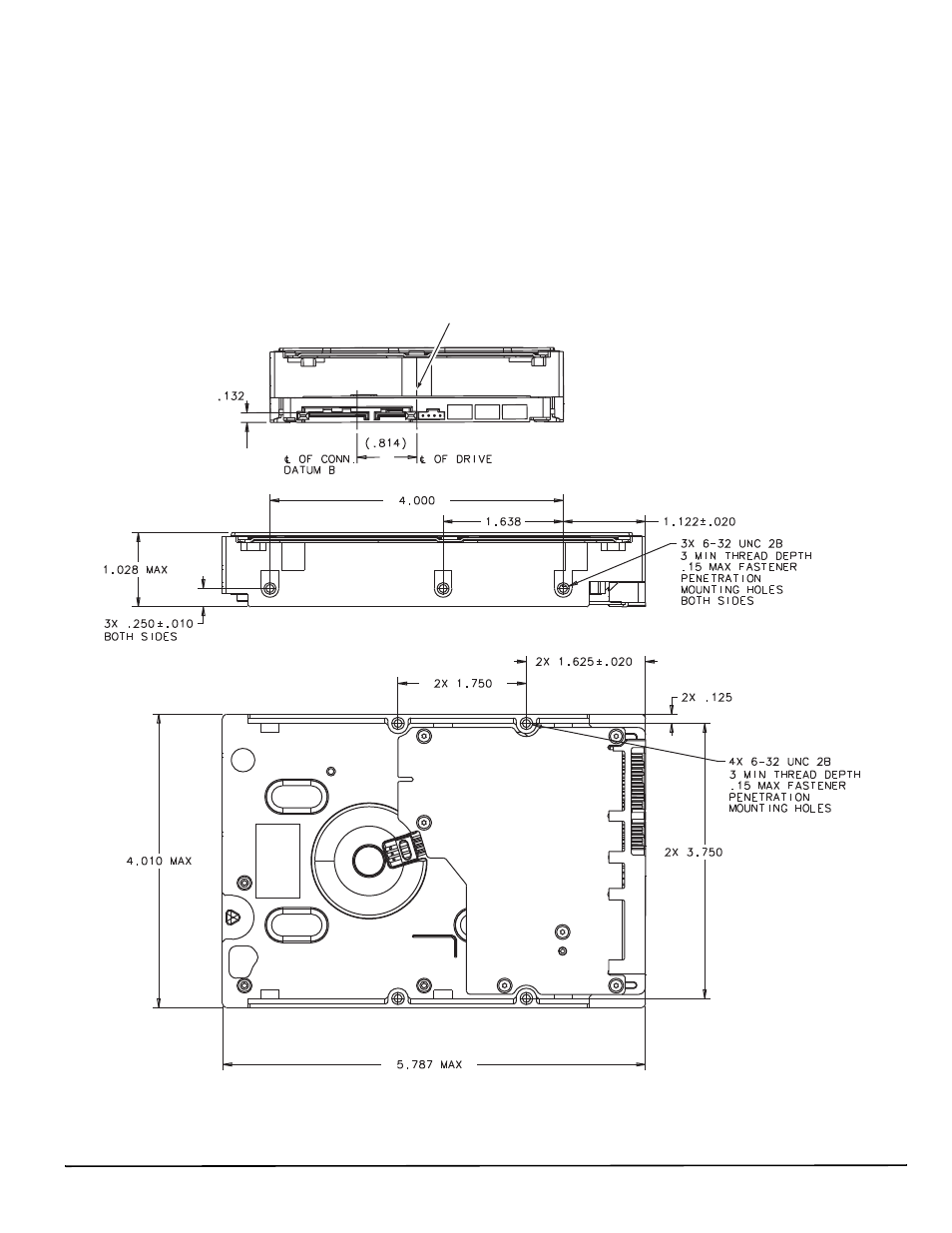

Figure 2. Mounting dimensions (2000GB model)
