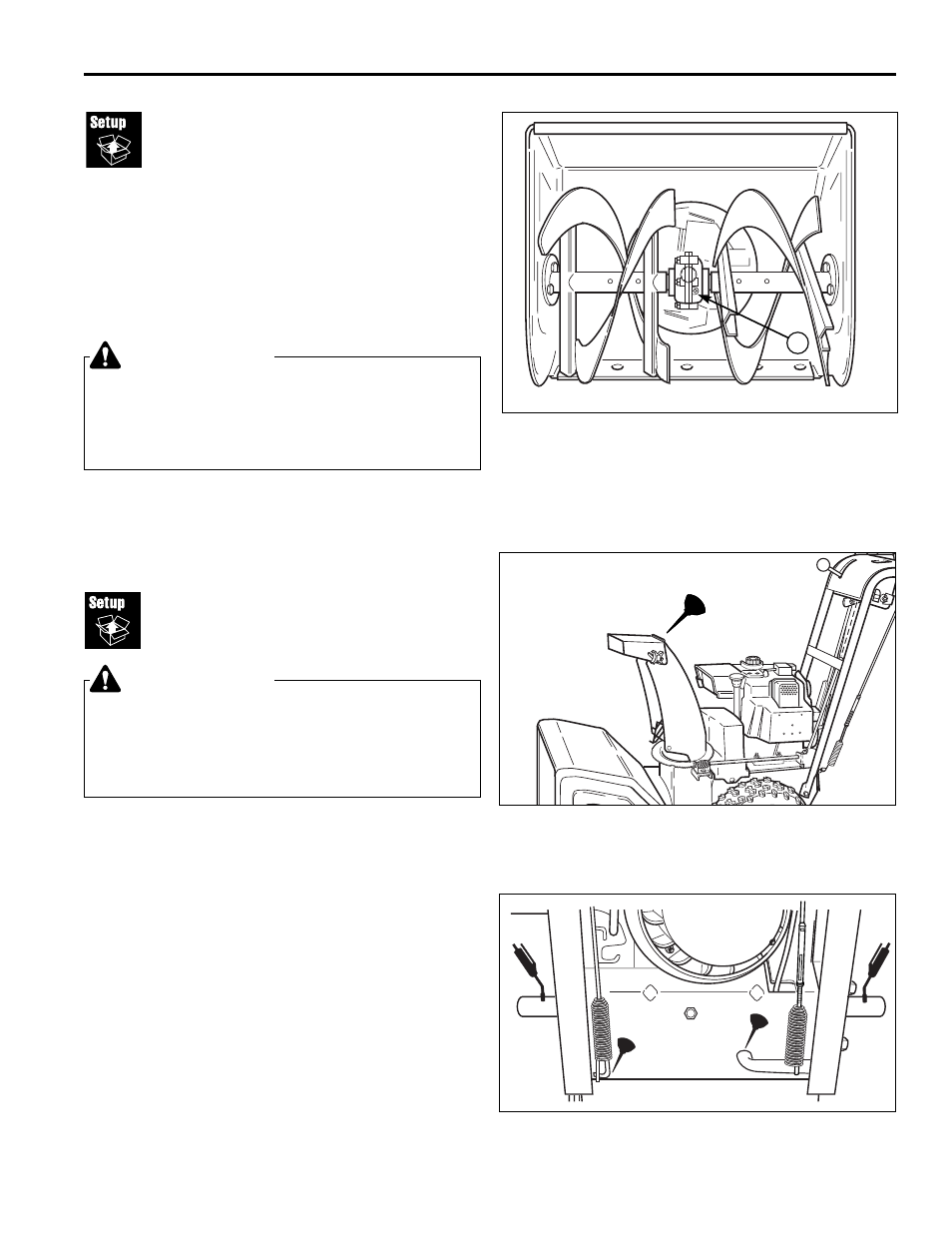

Figure 9. Auger Gear Case Lubrication
A. Pipe Plug
Figure 10. Lubricate Deflector Cap hinges
Check Fluid
Levels & Fill
1. Check auger gear case lubrication. Place the
snowthrower on a level surface. Remove the pipe
plug (A, Figure 9). The lubricant should be level with
the hole. If not, add Simplicity Winter Weight Worm
Gear Oil
2. Fill the engine crankcase with oil as described in the
engine Owner's Manual.
3. Fill the fuel tank with gasoline. Be sure to check your
engine Owner's Manual for gasoline recommenda-
tions. Do not overfill; allow space for gasoline expan-
sion.
Lubricate the
Snowthrower
With an oil can, apply medium weight (10W) oil to points
shown in Figures 10 thru 15. There are two grease fit-
tings in the auger shaft (Figure 15). Wipe fittings clean
and apply two or three shots of grease. Also, use grease
on points shown in Figure 12.
Generally, all moving metal parts should be oiled where
contact is made with other parts. Keep oil and grease off
belts and pulleys
NOTE: Make sure auger shaft grease fittings have been
lubricated to prevent shaft rusting. Apply grease until it
comes out both sides of shaft (gear box side and housing
bearing side). Grease may be squeezed out at shear pin
locations.
WARNING
Gasoline is highly flammable and must be
handled with care. Do not allow open flame,
smoking or matches in the area. Avoid over-
filling.
CAUTION
It is very important that grease fittings on the
auger shaft are lubricated regularly. If the auger
rusts to shaft, damage to worm gear may occur if
shear pins do not break.
A
Figure 11. Lubricate Control Levers & Lube Axles
