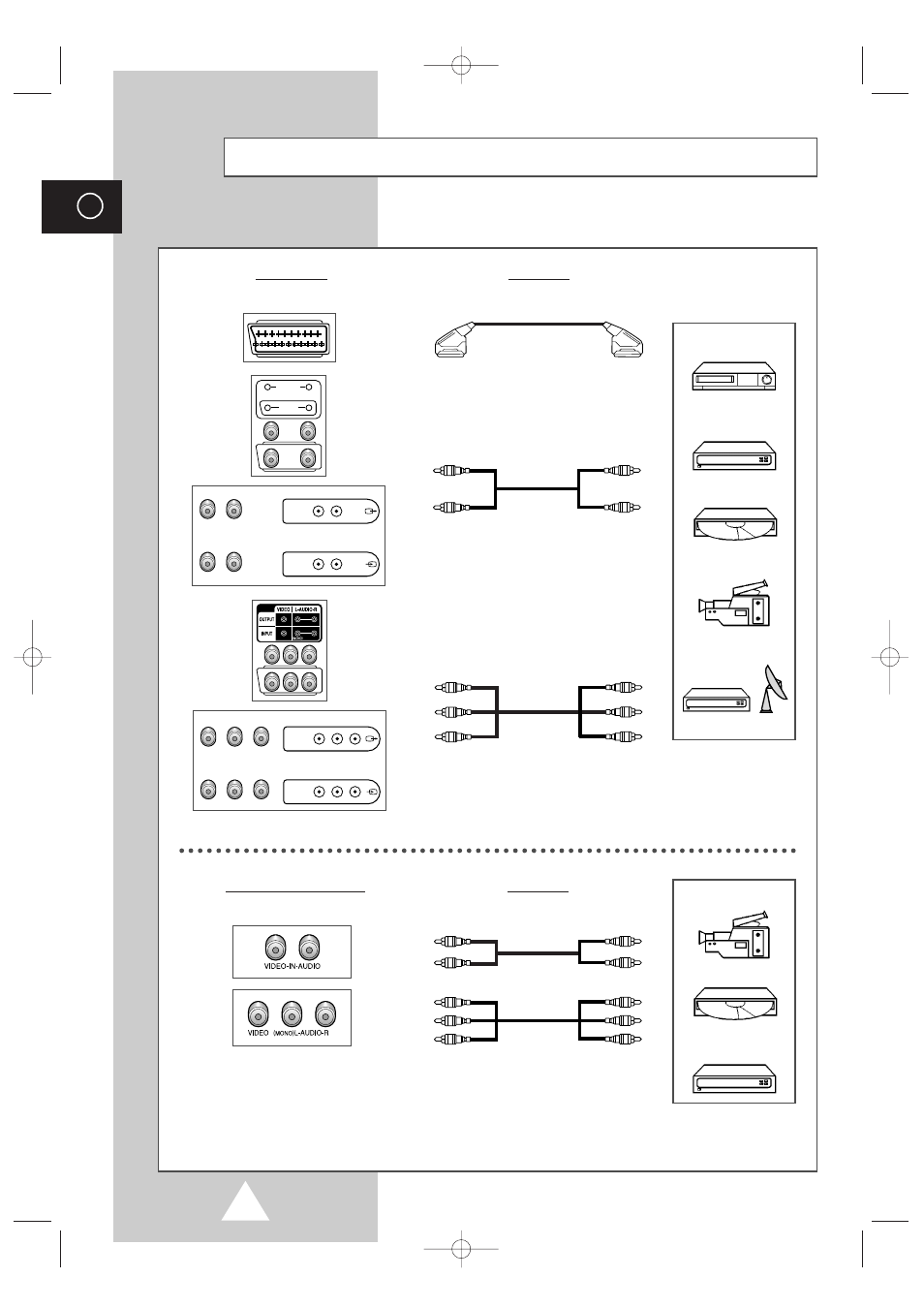

Connecting to the Audio/Video Input/Outputs
➢
The actual configuration on your TV may be different, depending on
your model.
➢
The Audio/Video connector on the rear of the television is
used for equipment with an RGB output.
Rear of TV
(depending on the model)
Video disc player
Decoder/
Video game device
VCR
Camcorder
Satellite receiver
AV cable
(depending on the model)
Front (or Side) of TV
(depending on the model)
AV cable
(depending on the model)
Video disc player
Decoder/
Video game device
Camcorder
➢
◆ The Audio/Video connector on the front (or side) of the television is
used for equipment, such as camcorders, video disc players and
certain video games.
◆ When both the front (or side) and rear connectors are connected to external equipment,
the front (or side) AV has the priority.
