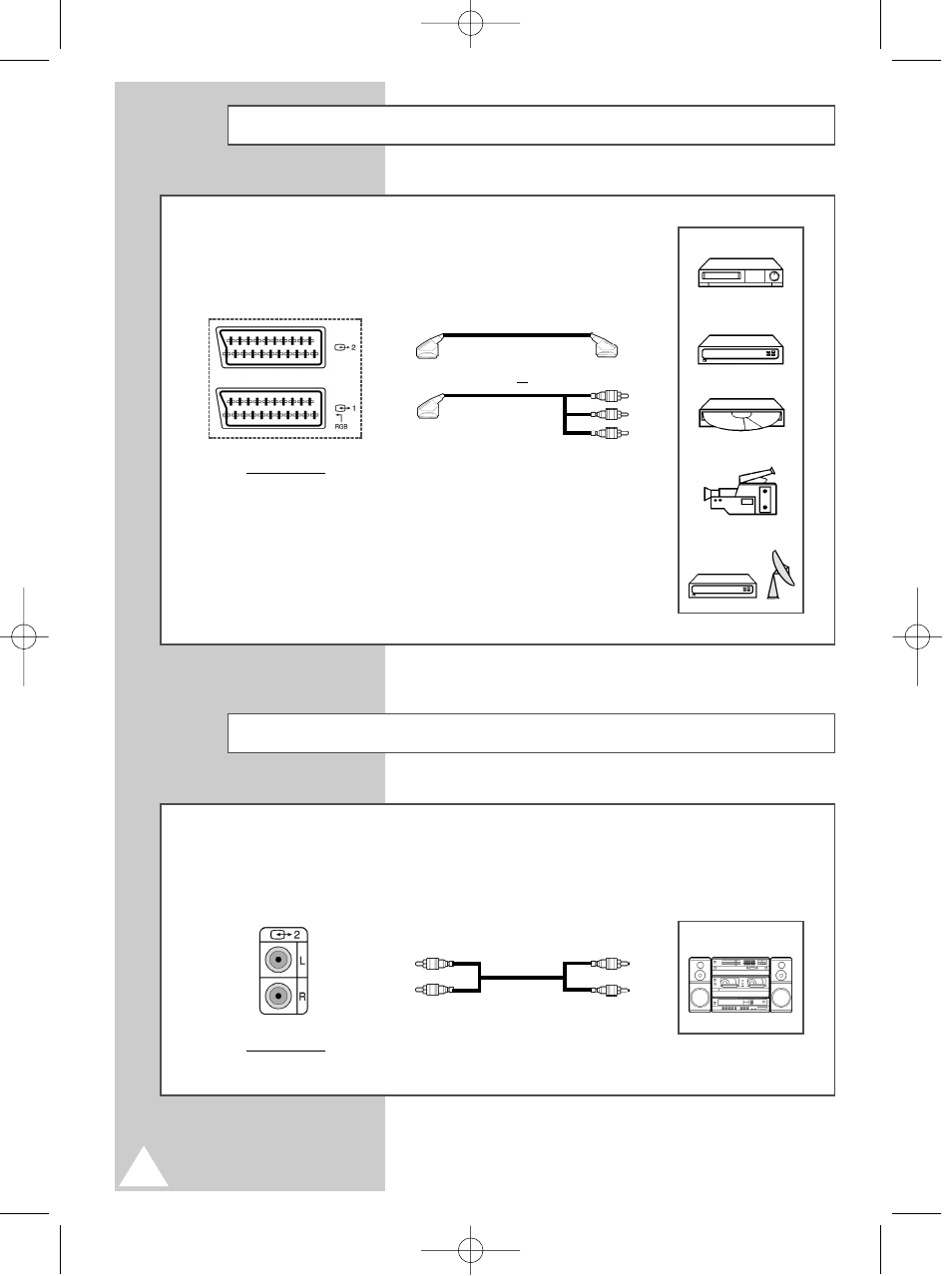

Connecting to the AV-1 or 2 SCART Input/Outputs
â
AV-1 is used for equipment with an RGB output, such as video game
devices and video disc players or a VCR.
Rear of TV
А А
А А This end can be fitted with:
u
A SCART connector
u Three RCA connectors (video + audio L and R)
Connecting to the Audio Out RCA Output (Option)
â
u The audio out RCA connectors on the rear of the television can be used for equipment, such as
an audio system (to take full advantage of the Surround sound effect).
u Connect the speakers to audio out via an amplifier.
Audio system
Rear of TV
or
VCR
Decoder/
Video game device
Video disc player
Camcorder
Satellite receiver
