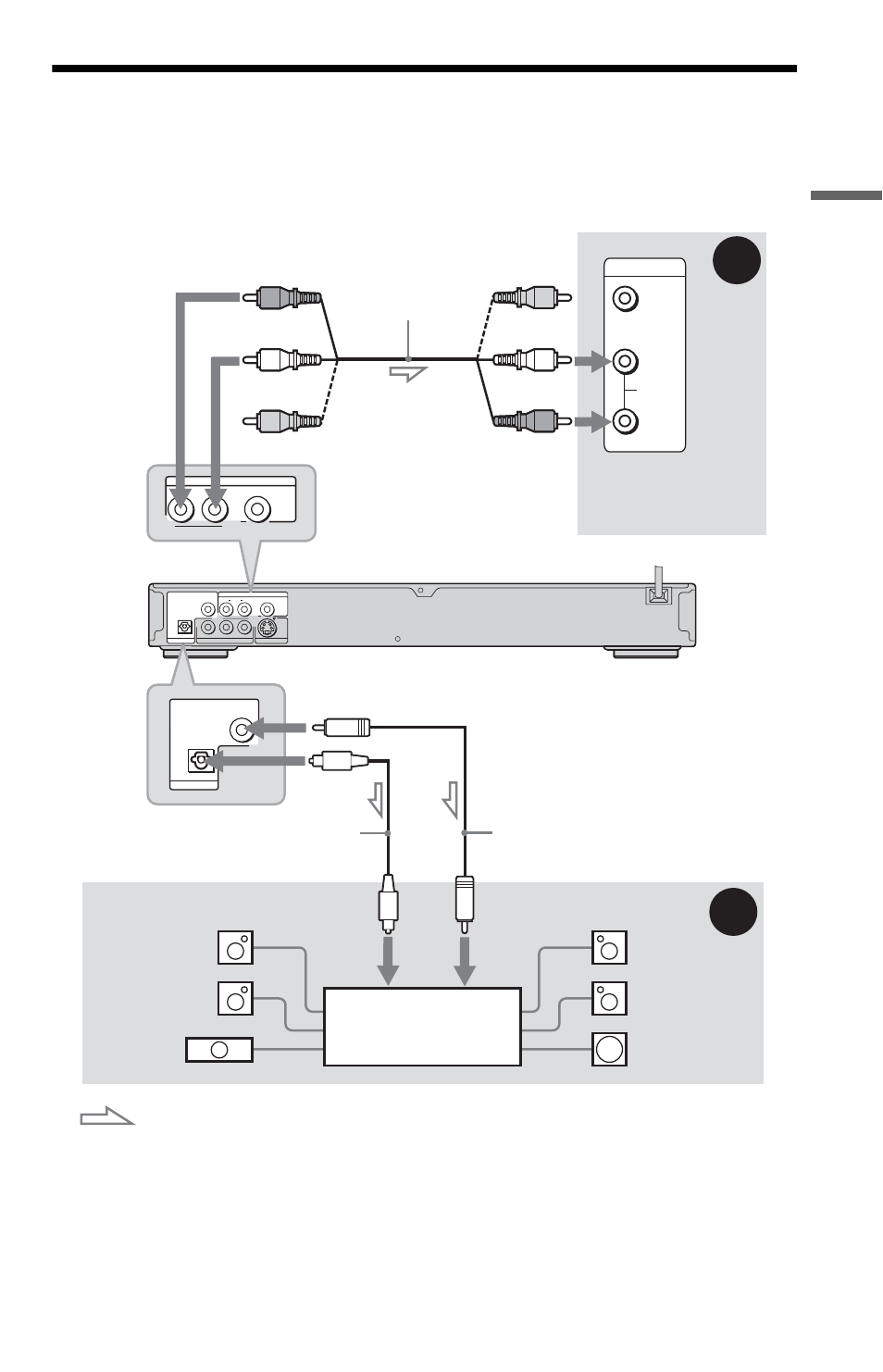

Step 4: Connecting the Audio Cords
Select one of the following patterns A or B, according to the input jack on your TV monitor,
projector, or AV amplifier (receiver).
This will enable you to listen to sound.
z Hint
For correct speaker location, see the operating instructions supplied with the connected components.
VIDEO
LINE OUT
AUDIO R L
S VIDEO OUT COMPONENT VIDEO OUT
P R Y P B
VIDEO
AUDIO
INPUT
L
R
B
A
DIGITAL OUT
OPTICAL
COAXIAL
VIDEO
LINE OUT
AUDIO R L
DIGITAL OUT
OPTICAL
COAXIAL
AV amplifier (receiver)
with a decoder
(red)
TV, projector, or AV
amplifier (receiver)
Audio/video
cord (supplied)
: Signal flow
Coaxial digital cord
(not supplied)
to DIGITAL OUT (COAXIAL or OPTICAL)
to LINE OUT L/R (AUDIO)
Rear (L)
CD/DVD player
(white)
(yellow) *
(yellow) *
(white)
(red)
[Speakers]
Front (L)
[Speakers]
to coaxial
digital input
Rear (R)
Front (R)
Subwoofer
Center
* The yellow plug is used for video signals (page 18).
Optical digital cord
(not supplied)
to optical
digital input
, continued
