Index to Parts and Controls
For more information, see the pages indicated in parentheses.

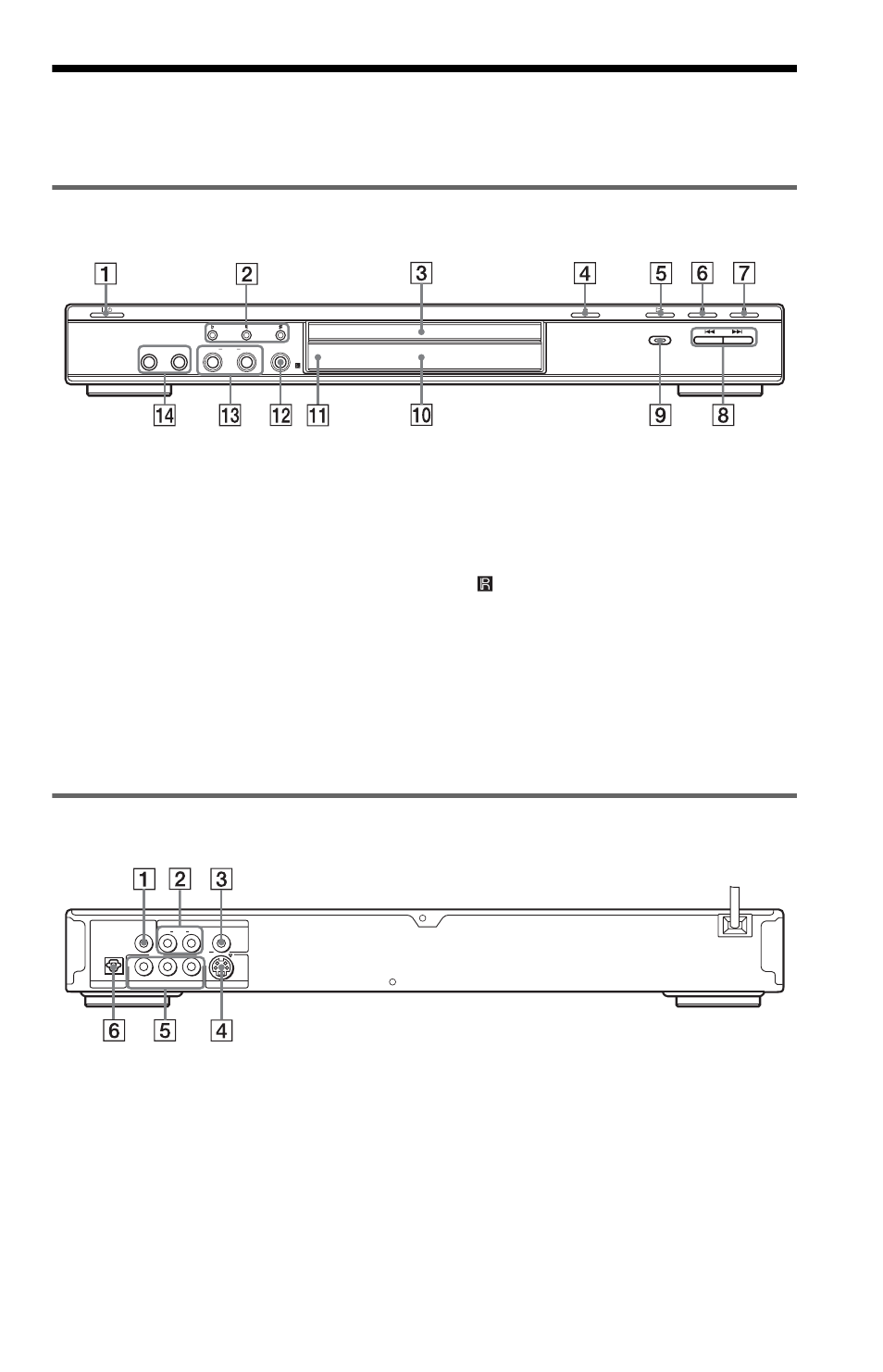

Front panel
A [/1 (on/standby) button (25)
B Key control buttons (41)
C Disc tray (25)
D A (open/close) button (25)
E H (play) button (25)
F X (pause) button (26)
G x (stop) button (26)
H ./> (previous/next) buttons (35) I PROGRESSIVE button/indicator (20)
Lights up when the player outputs
progressive signals.
J Front panel display (12)
K
(remote sensor) (17)
L ECHO LEVEL control (39)
M MIC 1/2 (microphone) LEVEL control
(39)
N MIC 1/2 (microphone) connectors (39)
Rear panel
A DIGITAL OUT (COAXIAL) jack (21)
B LINE OUT L/R (AUDIO) jacks (21)
C LINE OUT (VIDEO) jack (18)
D S VIDEO OUT jack (18) E COMPONENT VIDEO OUT jacks
(18)
F DIGITAL OUT (OPTICAL) jack (21)
MIN MAX MIN MAX MIN MAX
LEVEL MIC 1 MIC 2 MIC 1 MIC 2 ECHO LEVEL
PROGRESSIVE
COAXIAL VIDEO
LINE OUT
DIGITAL OUT S VIDEO OUT COMPONENT VIDEO OUT
AUDIO R L
OPTICAL P R Y P B
, continued
