Instruction for the installer
9
3.2 Burner and nozzle characteristics table
Burner
Rated
heating
capacity
(kW)
LPG
–
G30/G31
28/37
mbar
Nozzle
diameter
1/100 mm
By-pass
mm
1/100
Reduced
flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliary
1.0
50
30
350
73 71
Semi-rapid
1.75
65
33
450
127 125
Rapid
2.3
75
45
800
167 164
Triple crown
3.5
94
65
1500
254 250
Oven
3.2
87
48
850
233 229
Maxi Oven
4.6
106
59
1200
334 329
Grill
3.7
95
//
//
268 264
Burner
Rated
heating
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm
Reduced flowrate
(W)
Auxiliary
1.0
72
350
Semirapido
1.75
97
450
Rapido
2.3
103
800
Triple crown
3.5
140
1500
Oven
3.2
130
850
Maxi Oven
4.6
155
1200
Grill
3.7
145
//

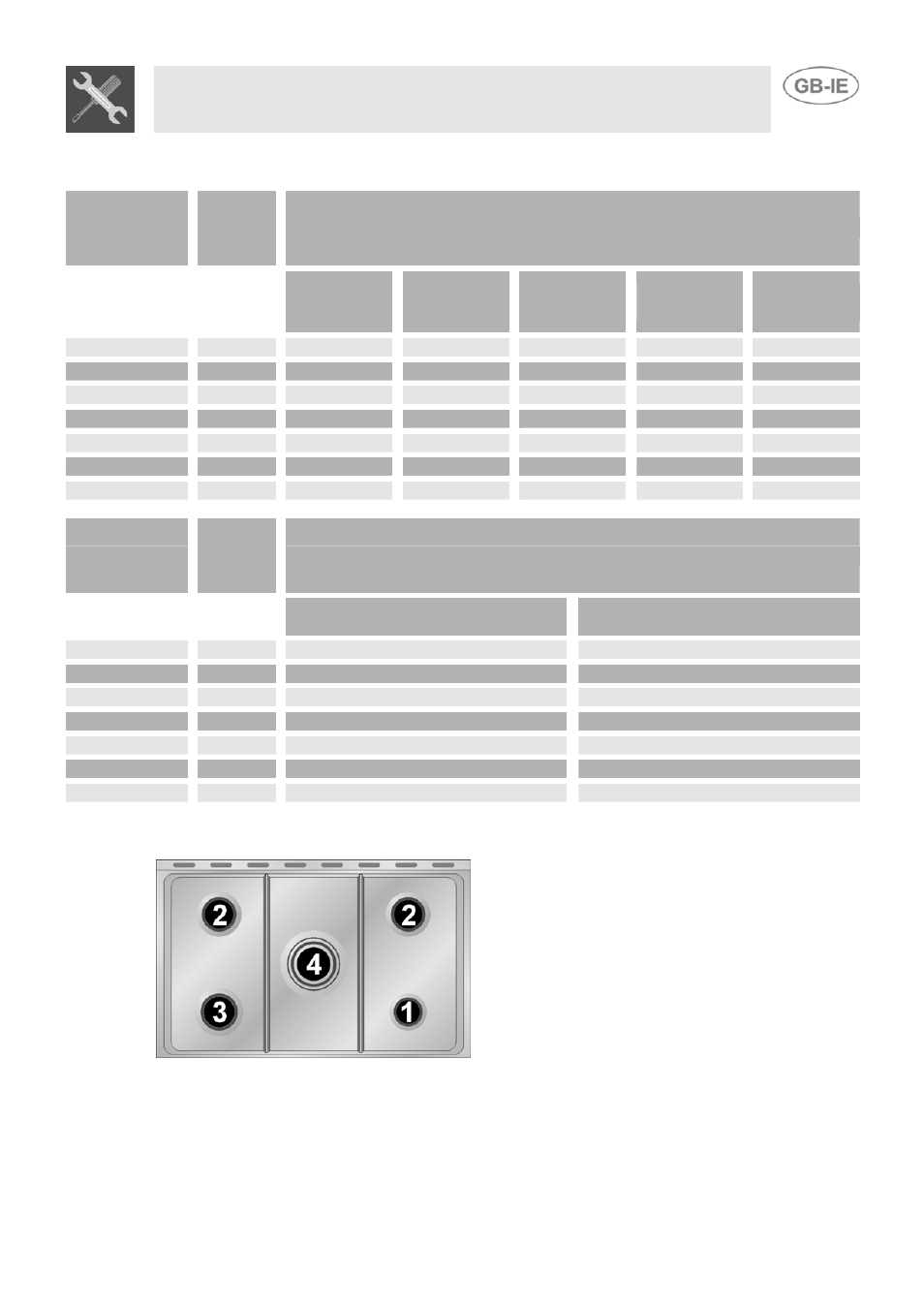

3.3 Arrangement of burners on cooking hob
BURNERS
1. Auxiliary
2. Semi-rapid
3. Rapid
4. Triple crown
