5. SPECIFICATIONS
5.0 FF520 SPECIFICATIONS
Power supply : 10 - 35 Volt dc
Max stand by current draw : 1KW:142mA at 12 Volt dc
: 500W:100mA at 12 Volt dc
Max current draw : 1KW:1.42A at 12 Volt dc
: 500W:1A at 12 Volt dc
Sounder Power : 500/1000W (4000/8000Wpp)
Display Colors : 16 colors
Display Vertical Resolution : 400 pixels on CP1000C/CPV350
: 200 pixels on CP155C/CP175C/CP180/CP180i
Frequency : Dual 50 and 200kHz
Max Depth* : 1KW:1200Ft (365m) at 200kHz; 4000Ft (1219m) at 50kHz
: 500W:700Ft (213m) at 200kHz; 1500Ft (457m) at 50kHz
Min Depth : 2.5Ft (0.8m) at 200kHz; 5Ft (1.6m) at 50kHz
Max Typical* : 1KW:980Ft (299m) at 200kHz; 2700Ft (823m) at 50kHz
: 500W:600 Ft (183m) at 200kHz; 1350Ft (411m) at 50kHz
NOTE*
This is not a guaranteed specification. The actual maximum depth capability of the system depends
on the type of transducer fitted, the reflectivity of the bottom, water condition, etc.
Data output : proprietary format
NMEA output sentences : $SDDBT; $SDDPT; $VWVHW; $VWVLW; $YXMTW;
$YXXDR
Weight : 1 kg (2,20 LBS)
Operating temperature range: 32F to 122F (0C to +50C)
Storage temperature range : -4F to 158F (-20C to +70C)

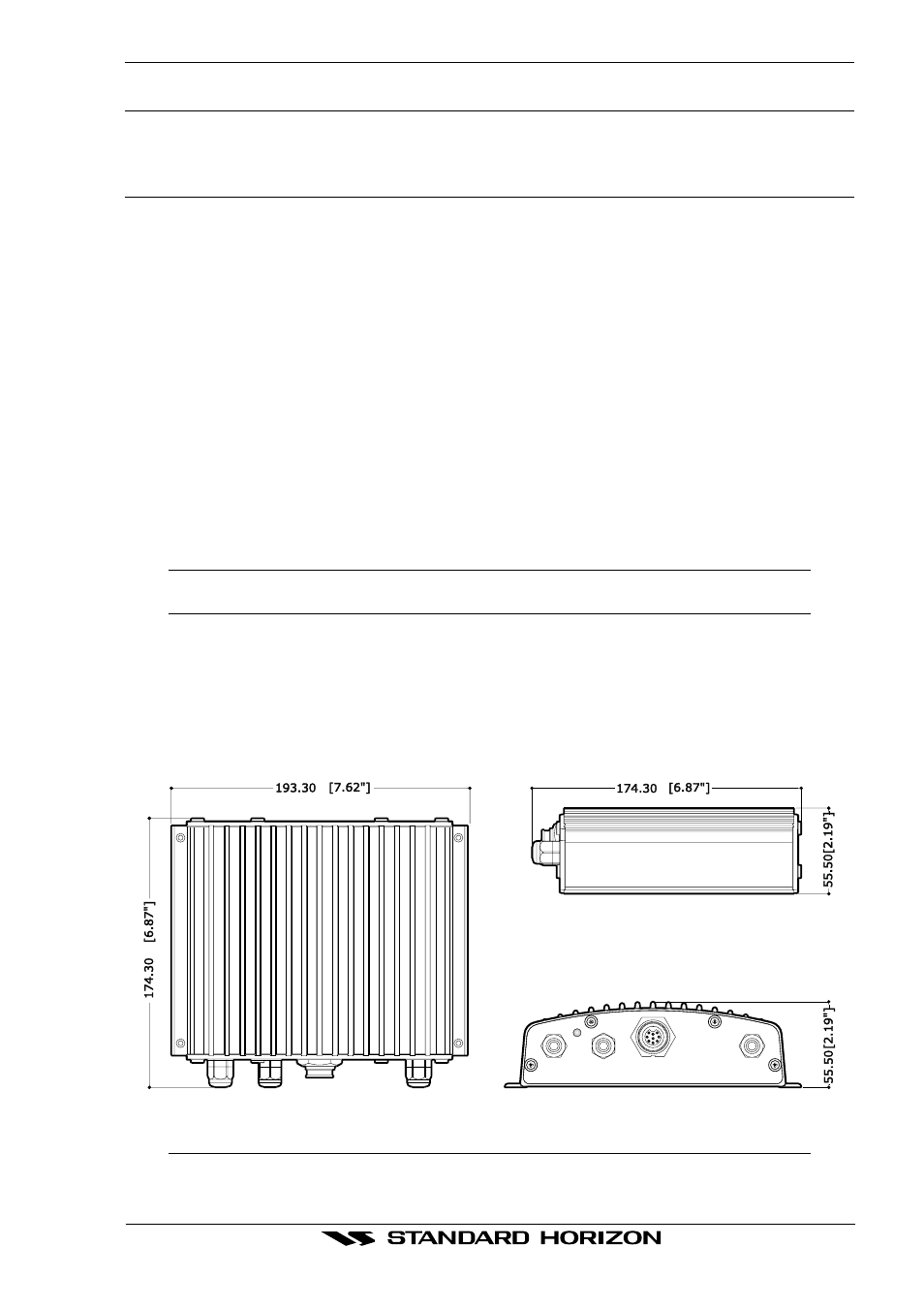

Dimensions - mm (inch)
:
Figure 5.0 - FF520 Dimensions [mm/inch]
NOTE
Performance of the FF520 used in conjunction with optional transducers (sold separately) will vary
