Page 16

background image

16

OUTLET

OUTLET

RELEASE

RELEASE

Base rotated 90

°

to show

check valve installed.

1

2

3

4

5

6

9

10

10A

11

12

13

DRAIN

DRAIN

7A

7B

8

Key

Part

No.

Description

Qty. Number

1

Posi-Lok™ ring*

1 27001-0050B

2

Air release valve assembly

1 25010-0200

3

Tank shell upper half*

1 27001-0020S

4

Tank O-ring

1 27001-0061S

5

Tank shell lower half

1 27001-0009S

6

Safety latch for ring

1 27001-0051

7A

1-1/2” NPT plug

1 11201-0005B

7B

Adapter fitting

1 24900-0509

8

O-ring

1 35505-1424

9

2” x 1-1/2” Pipe reducer***

2 U78-820P

10

Pressure gauge***

1 15060-0000T

10A

Pressure gauge screen***

1 WC8-72D

11

Air bleed assembly

1 24800-0121

12

Filter module (PLM100)

1 27002-0100S

12

Filter module (PLM150)

1 27002-0150S

13

Spring check valve**

1 27001-0130S

Accessory package

1 27001-0140

Decal, logo

1 27001-0041

Decal, warning

1 27001-0042

Decal, operating instr.

1 27002-0043

Decal, nameplate (PLM100) 1 27002-0042

Decal, nameplate (PLM150) 1 27002-0045

Owner’s manual

1 S340

Teflon tape***

1 U97-58

O-ring grease***

1 34725-0013

Not illustrated.

*

Includes all decals and labels.

**

Optional equipment.

*** Shipped in accessory package.

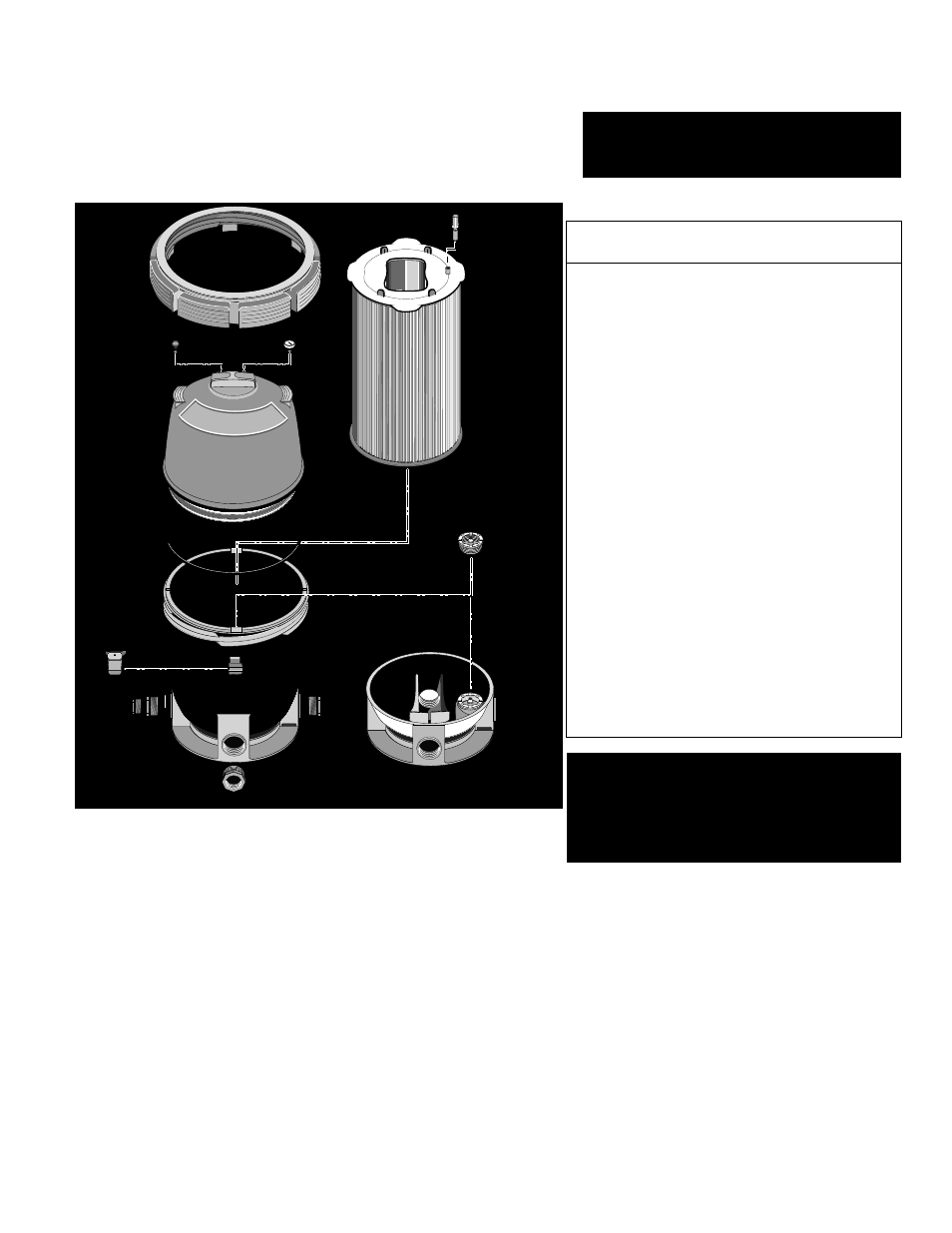

REPAIR PARTS

Filter Tank Assembly
