Smeg A1AU6 User Manual
Smeg Fans

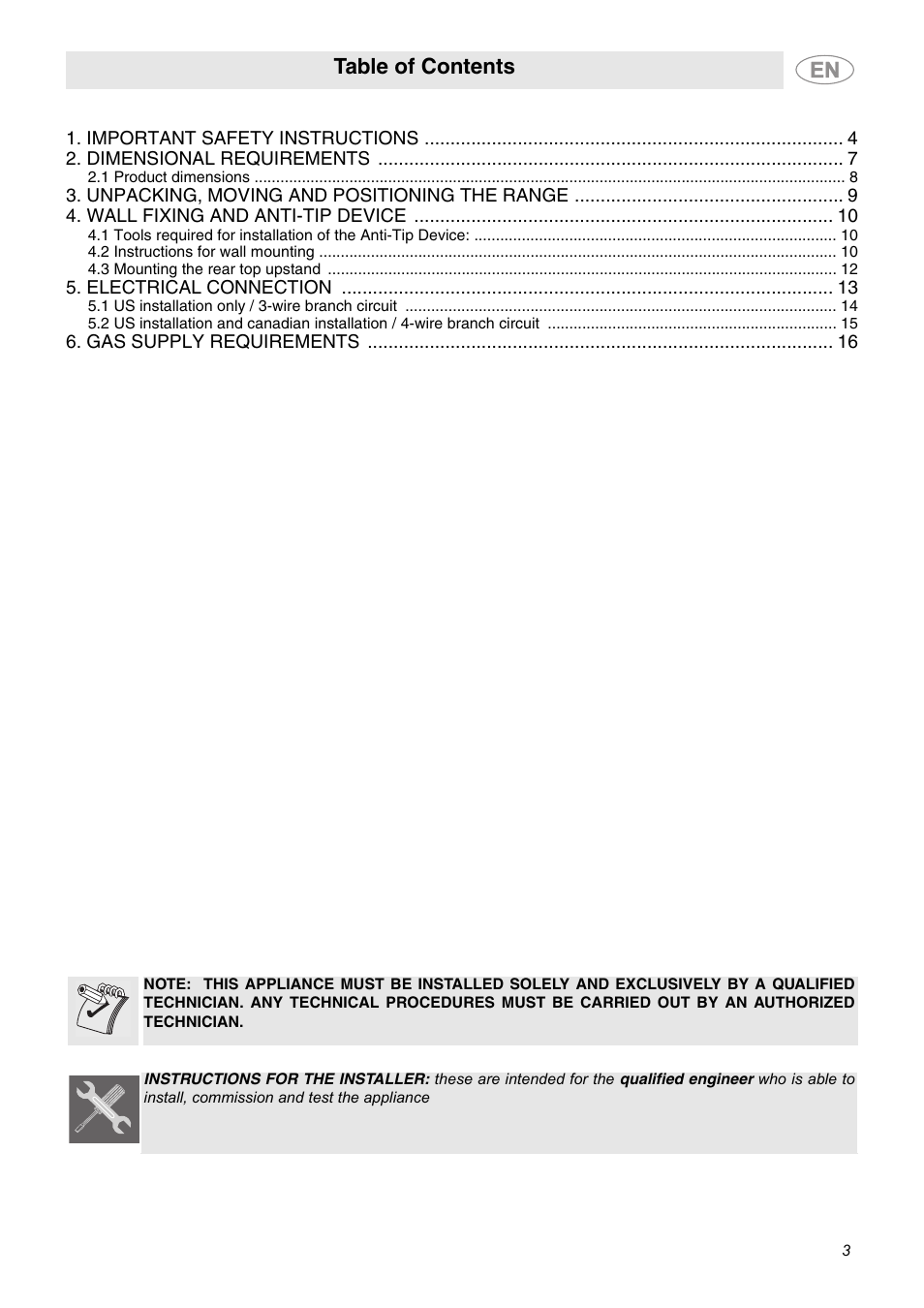

Table of contents
Document Outline
- Important safety instructions
- 1 To contact a qualified electrician to install the appliance
- 2 To ensure that the electrical system is adequate and in conformance with the national ANSI / NFPA 70 ELECTRICAL CODE – Latest edition – Or the CSA STANDARDS C22.1-94, CANADIAN ELECTRICAL CODE, PART 1 AND CSA C22.2 No. O-91 – or latest edition...
- 2. DIMENSIONAL REQUIREMENTS
- 1 24” (61 cm) min. when bottom of wood or metal cabinet is protected by not less than ¼ “ (0.64 cm) flame retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015” (0.4 mm) stainless steel, 0.024” (0.6 mm) aluminium or 0....
- 2 13” (33 cm) max. upper cabinet depth;
- 3 35- ½ “ (90 cm) min. cabinet opening width;
- 4 18” (45.7 cm) upper cabinet to countertop;
- 5 2” (5 cm) min. clearance from the sides of range to side wall or other combustible material;
- 6 Junction box.
- 2.1 Product dimensions
- 3. UNPACKING, MOVING AND POSITIONING THE RANGE
- 4. WALL FIXING AND ANTI-TIP DEVICE
- 4.1 Tools required for installation of the Anti-Tip Device:
- 4.2 Instructions for wall mounting
- 1 Level the range using the front adjustable leveling legs.
- 2 From the floor, measure the height of the notch found on the bracket. This notch corresponds to the centerline of the holes for the screws that will fasten the brackets to the wall.
- 3 Attach the two anti-tip brackets to the wall using an appropriate fastener (for example, screws appropriate for the type of the wall). Adhere scrupulously to the heights indicated in the figures (A) using the appliance’s dimensions as a guide. (T...
- 4 Correctly position the range so that the two screws fit the anti-tip brackets on the range perfectly.
- 4.3 Mounting the rear top upstand
- 5. Electrical connection
- 6. Gas supply requirements
