Instructions for the Installer
8

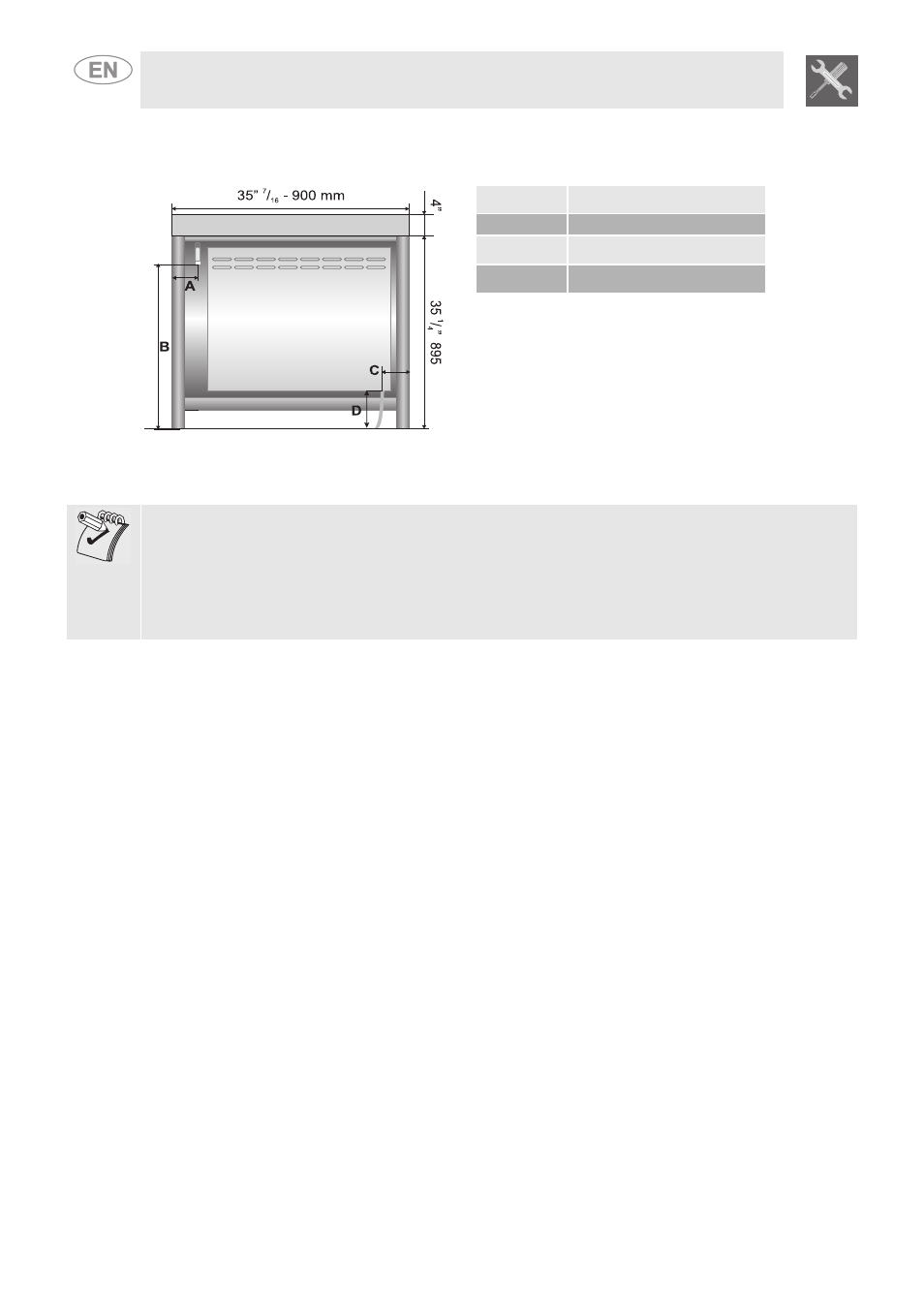

2.1 Product dimensions
Overall dimensions: location of electrical connection points.
A 115 mm - 4
1
/
2
”
B 762 mm - 30 “
C 133 mm - 5
1
/
4
”
D 80 mm - 3
3
/
16
”
Check the location where the range is to be installed. The range should be positioned for convenient use
in the kitchen.
NOTE: Observe all governing codes and ordinances.
All openings in the wall or floor where range is to be installed must be sealed.
Some cabinet and building materials are not designed to withstand the heat produced by the oven for
baking. Check with your builder or cabinet supplier to make sure that the materials used will not discolor,
delaminate or sustain other damage.
The cabinet opening dimensions that are shown must be used. The given dimensions are minimum
clearances.
When installing a range under existing cabinets and the installation does not satisfy the minimum
cabinet clearances, install a range hood above the cooktop to avoid burn hazards.
