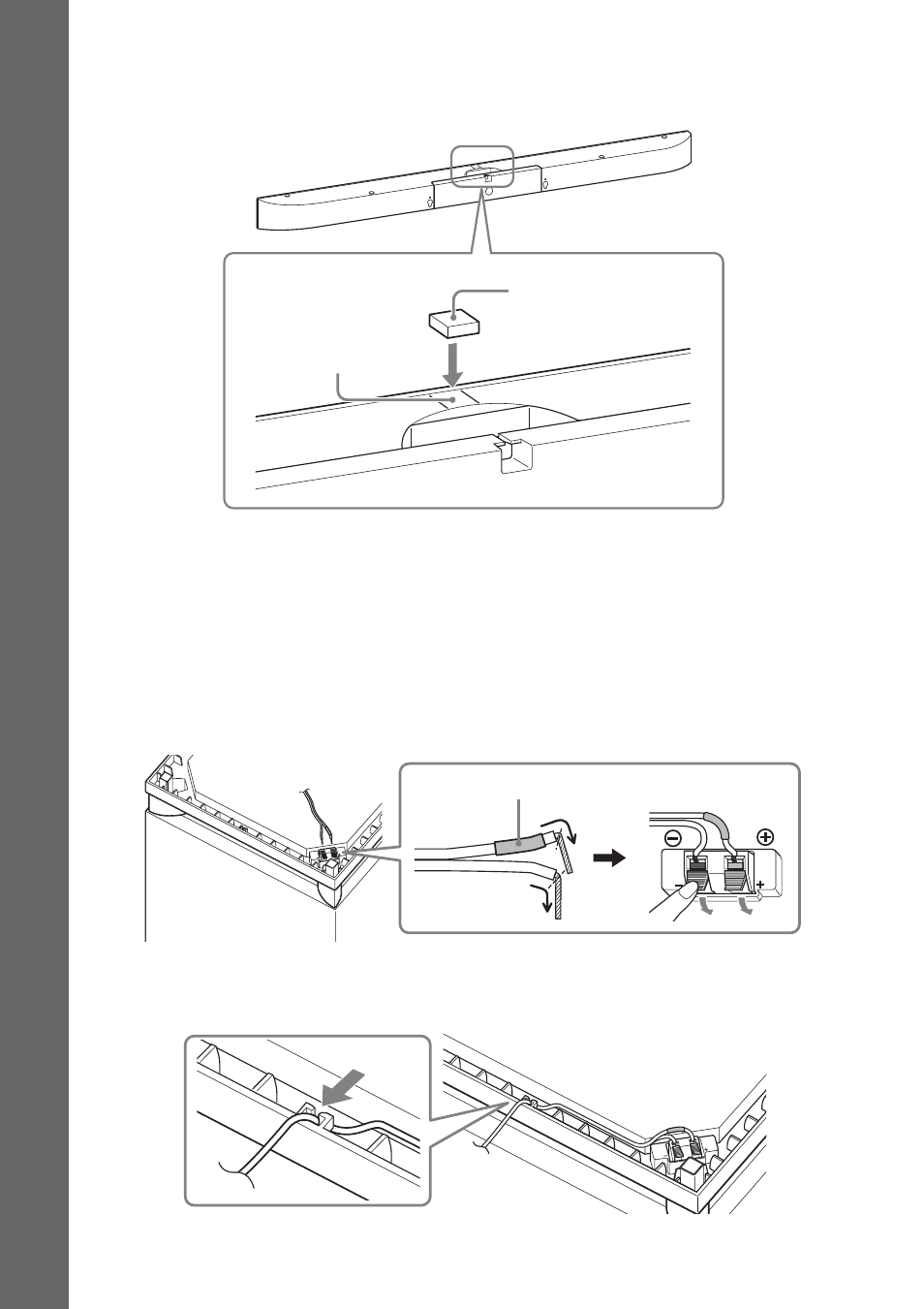

To install the front speaker at an upward angle
The front speaker can be tilted upward by attaching the foot pad. This is useful for projecting the sound
upward when installing the front speaker on a low rack or low TV stand, etc.
To connect the speaker cord to the subwoofer
1
Connect the speaker cord to the subwoofer.
Be sure to match the speaker cord to the appropriate terminal on the subwoofer: the speaker cord
with the color tube to 3, and the speaker cord without the color tube to #. Do not catch the
speaker cord insulation (rubber covering) in the speaker terminals.
2
Thread the speaker cord through the gap along the side of the subwoofer, and secure it
in the speaker cord holder.
Attach the foot pad (supplied) to the bottom of the speaker by removing the
protective cover and aligning the foot pad with the mark (B).
Bottom of the speaker
Foot pad (supplied)
B
Bottom of the subwoofer
Color tube (purple)
