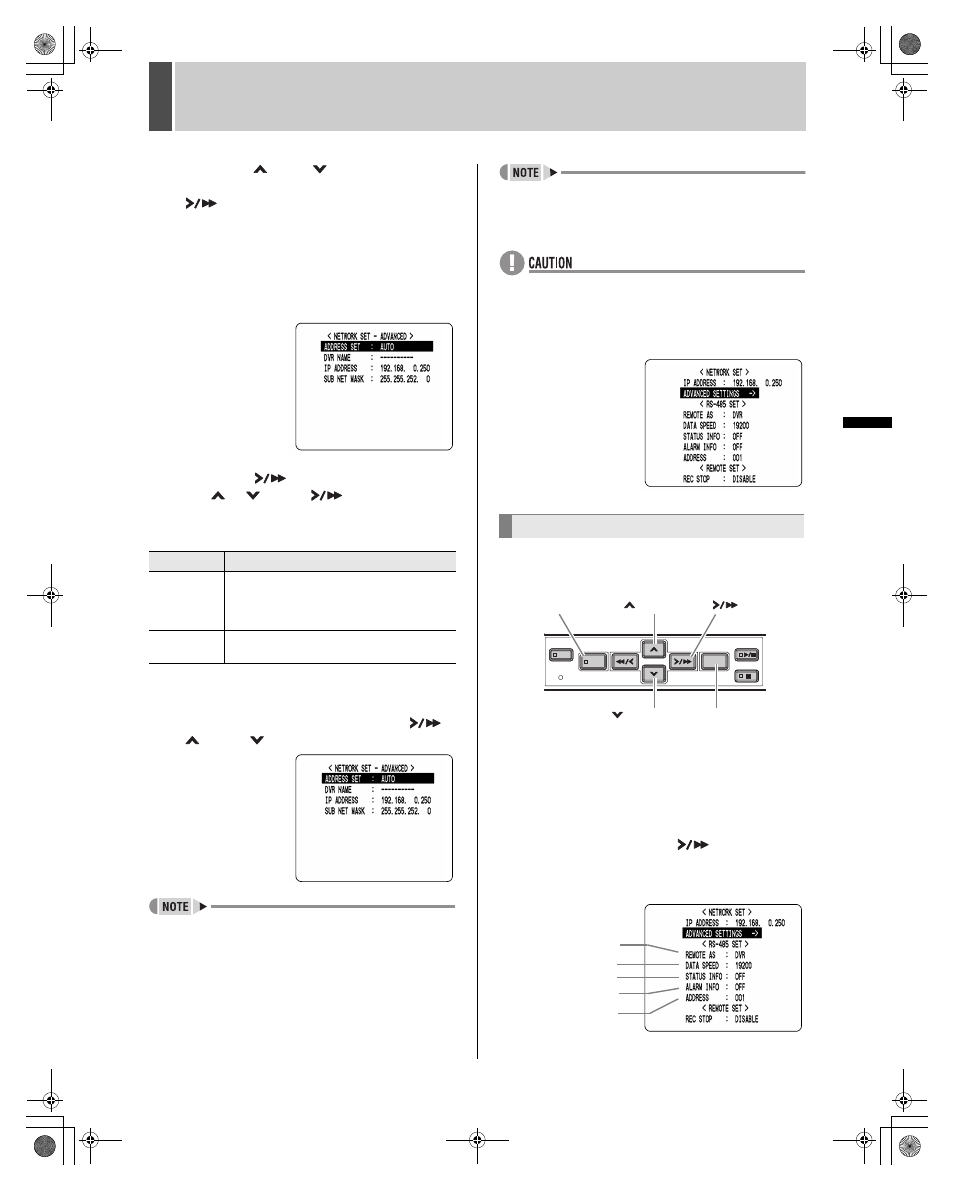

6 RS-485/NETWORK SET
40
English
SE
TTIN
GS
3
Press the [ ] and [ ] buttons to select
“ADVANCED SETTING” and press the
[
] button.
The screen appears.
The cursor moves to “ADDRESS SET”.
“DVR NAME” displays the name set for the digital video
recorder when using remote control software.
When “ADDRESS SET” has been set to “MANUAL”, it will
be possible to set “DVR NAME” using this menu.
4
Press the [ ] button, and then use
the [ ], [ ], and [ ] buttons to set
“ADDRESS SET”.
[Settings] ( ‹ indicates initial setting.)
5
When “MANUAL” has been set, and
then set “DVR NAME”, “IP ADDRESS”,
and “SUB NET MASK” using the [
],
[ ], and [ ] buttons.
z Refer to “Setting passwords” on P. 36 for more
information regarding setting methods for “DVR NAME”.
6
Press the [EXIT/OSD] button.
The display returns to the normal screen.
z When a new IP address is set using the digital video
recorder, it will become valid upon leaving the NETWORK/REMOTE SET> screen.
z When connecting the digital video recorder to a network,
check the IP address with the network administrator.
The set IP address is displayed in the NETWORK/REMOTE SET> screen.
Connect the digital video recorder’s RS-485 (A, B) control
terminals in series to the system controller, digital video
recorder or similar device.
1
Press the [MENU] button.
The MENU indicator lights, and the
2
Select “6. RS-485/NETWORK/REMOTE
SET”, and press the [
] button.
The screen
appears.
Setting Description
‹ AUTO When either the VA-SW814 or VA-SW81LITE
remote control software is used, the digital
video recorder’s [STILL] button can be pressed
to have the IP address set automatically.
MANUAL The “DVR NAME”, “IP ADDRESS” and “SUB NET
MASK” are set on the digital video recorder.
RS-485 connections and settings
[ ] button [MENU] button [ ] button
[ ] button [EXIT/OSD] button
(1)
(2)
(3)
(4)
(5)
