13. FERRITE CORE INSTALLATION ( EU ONLY )
If a peripheral unit drive circuit is to be used, attach a ferrite core using the
following instructions.
■ A ferrite core noise filter for the peripheral unit cable comes packed with the
printer for distribution throughout the European Union. Ferrite cores must be
purchased separately in other areas.
•
Cable is not included.
• Use a cable with the following specifications.
Product Code 09990713
Model Name Ferrite Core TRCC-16-8-16
■ The ferrite core is normally packed so
it is open, as shown in Figure 13-2. If
you find that the ferrite core is not
open, use a pointed object to pry the
plastic lock of the ferrite core apart
(Figure 13-1.). When you do, take care
not to damage the ferrite core or the
plastic lock.

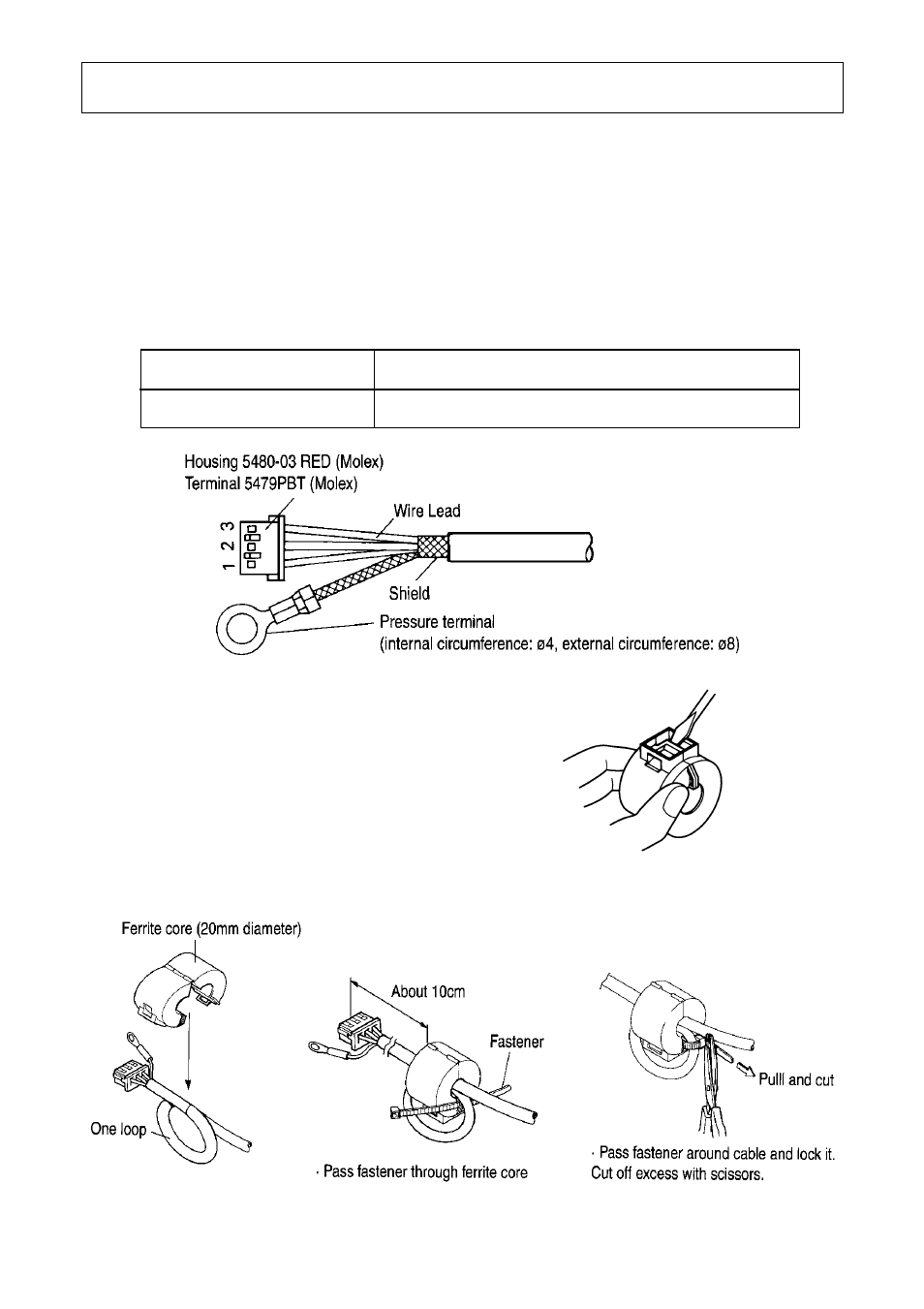

Figure 13-1.
Figure 13-4. Figure 13-3. Figure 13-2.
