– 27 –
TYPE
ONLY
M
Absolute Ratings (Ta = 25˚C)
D1
Voltage Breakdown
100V
Peak Forward Current
1A

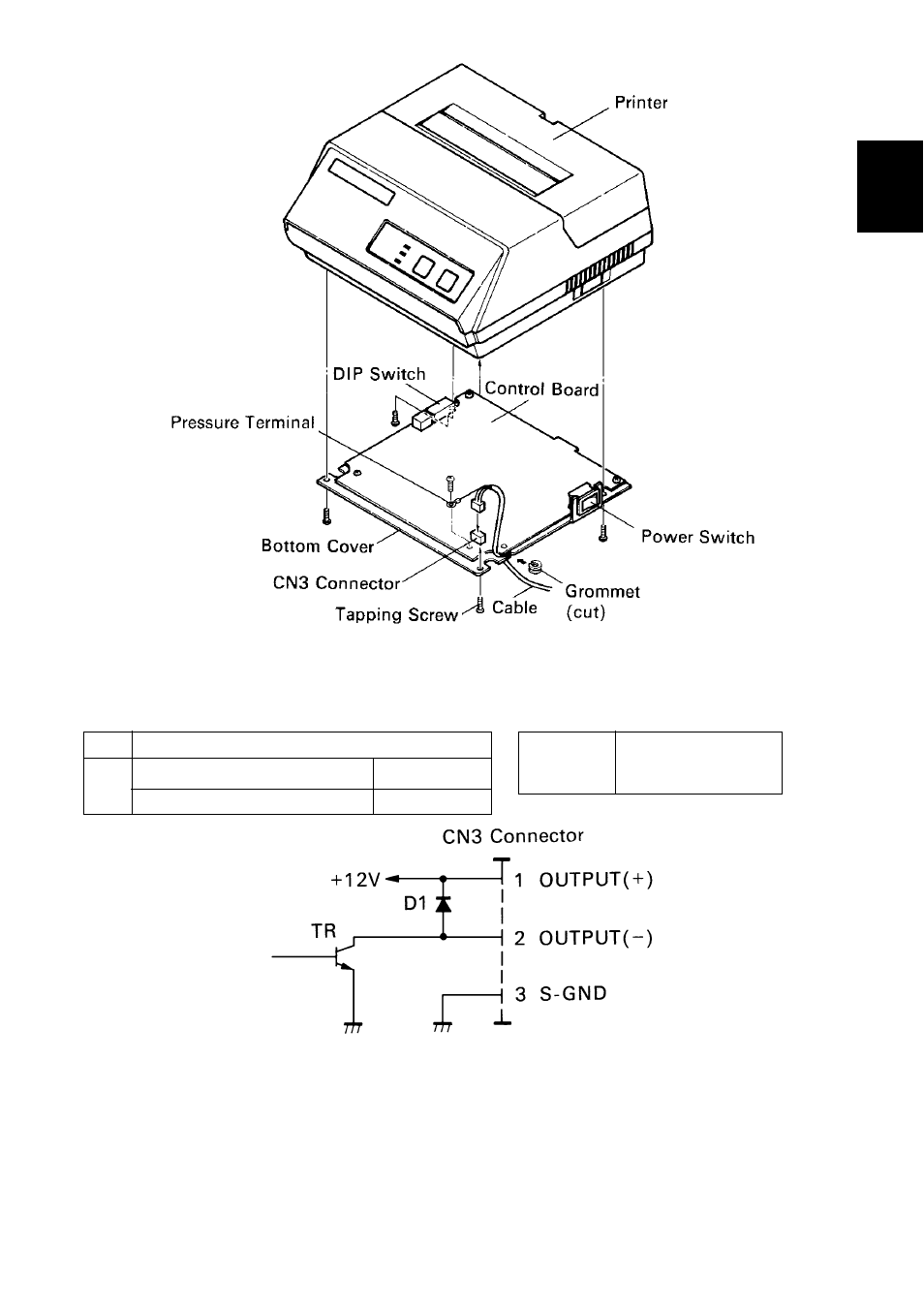

Figure 7-8. Cable Connection
7-6-2. Peripheral Drive Circuit
Figure 7-9. Drive Circuit
Caution: Do not use external power supply with peripheral drive circuit.
7-6-3. Control Codes
Codes for Drive Circuit control are ESC BEL n1 n2, BEL and FS. Refer to the
Control Codes in Chapter 5.
Drive
Output
12V, MAX. 1A
