Scag Power Equipment MODEL TS - Manual (Page 4)

2

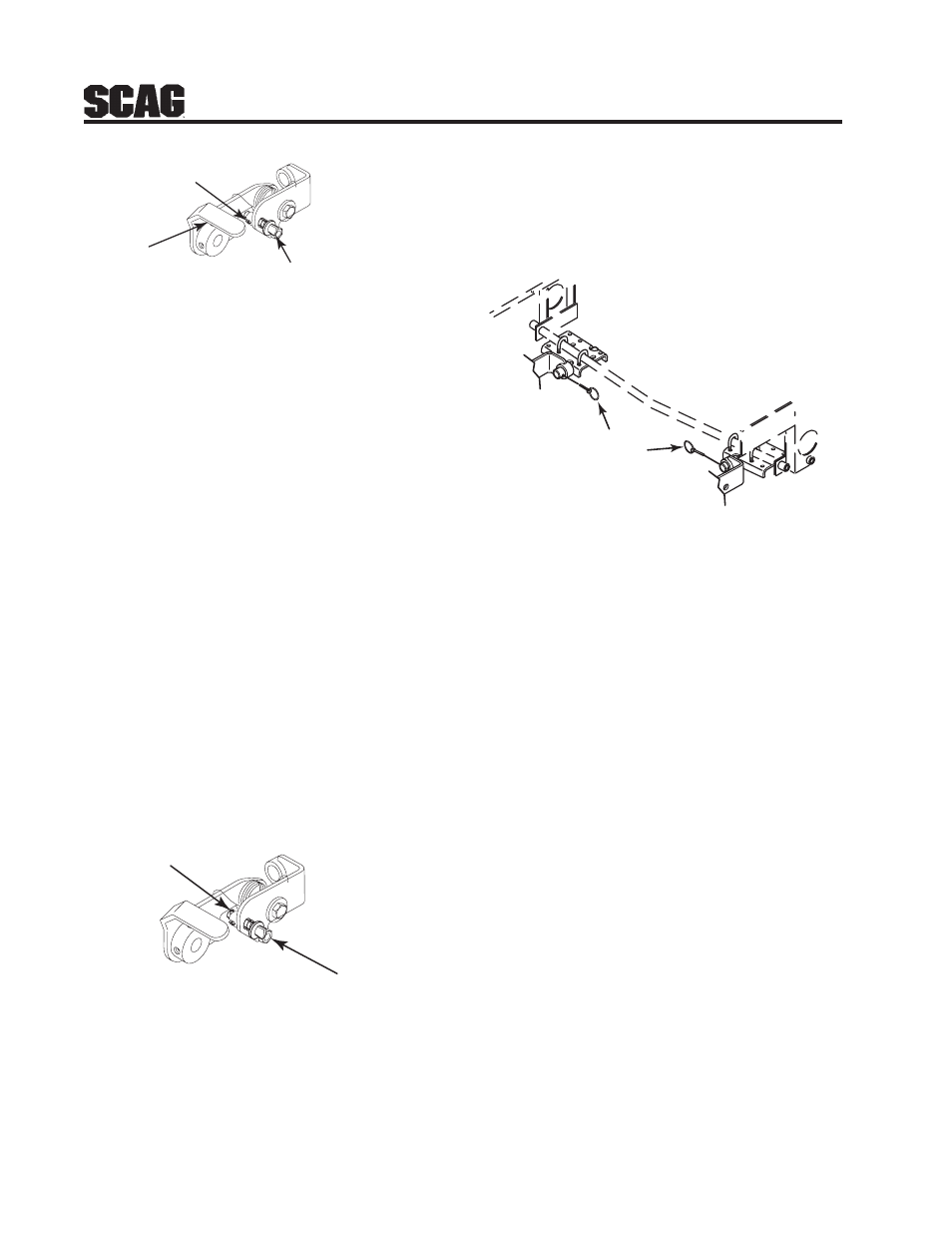

FIGURE 2-1
2. Repeat this procedure on the opposite side.
The machine is now ready to operate.
2.3 REMOVING THE TIGER STRIPER
The Tiger Striper can be easily removed whenever
the machine is being transported or when striping is
not needed. To remove the Tiger Striper, follow the
instructions below.
1. Prepare the machine so there is easy and safe
access to the work area. Remove the key and
maintain all safety related work procedures.
Always wear eye and hand protection.
2. Lock the Tiger Striper up in the transport
position by lifting upward on the handle, push
and turn the lock pin 90 degrees. The small roll
pin must be out of the slot in the bracket to lock
in the transport position. See Figure 2-2.
FIGURE 2-2
3. Repeat on opposite side.
4. Once the Tiger Striper is locked in the transport
position, remove the quick pins securing the
Tiger Striper to the mounting brackets. See
Figure 2-3
FIGURE 2-3
5. Slide the Tiger Striper off of the mounting
brackets.
6. To install the Tiger Striper, slide the assembly on
to the mounting brackets and reinstall the quick
pins. Once the Tiger Striper has been reinstalled,
follow Section 2.2 Operating Instructions for
proper operation.
3.1 ASSEMBLY INSTRUCTIONS - STT
-NOTE-
Use the illustrated parts list as a part
number reference when following the
assembly instructions.
1. Remove all packaging materials. Lay out the
mounting hardware and the Tiger Striper
assembly for easy access.
2. Prepare the machine so there is easy and safe
access to the work area. Remove the key and
maintain all safety related work procedures.
Always wear eye and hand protection.
Roll Pin
Push and Turn Pin to line
up Roll Pin with Slot
to Unlock
Lift Up on
Handle
Push and
Turn Pin to
Lock
Roll Pin
Remove Quick Pins
