Parts list (see parts identifier), Parts identifier – Spalding 211014 User Manual

Page 5

background image

5

03/05

P/N 211014

PARTS LIST (SEE PARTS IDENTIFIER)

Item Qty

Part No

Description

P-1

1

908164

Top Pole Section

P-2

1

908107

Middle Pole Section (with Label)

P-3

1

908165

Bottom Pole Section

P-4

2

900223

Wheel Bracket

P-5

2

206940

Axle, 21" Long

P-6

2

226403

Wheel 6”

P-7

1

206990

Bracket, Reinforcement

P-8

1

200117

Base

P-9

1

108163

Bracket, Pole

P-10

1

904501

Handle Assembly, Lower

P-11

1

904502

Tube Assembly, Upper

P-12

2

204838

Spring

P-13

2

906410

Tank Strut

P-14

1

200123

Upper Pivot Bracket

P-15

1

206948

Lower Pivot Bracket

P-16

2

900122

Hinge Tubes

P-17

2

900867

Triangle Plates

Item Qty

Part No

Description

P-18

1

207103

Pole Cap

P-19

2

908169

Elevator Tube, Lower

P-20

2

904807

Elevator Tube, Upper

P-21

2

900964

Board Brackets

P-22

1

200118

Front Cover

P-23

1

206956

Plastic Disc, 5" O.D.

P-24

1

206219

Base Plug

P-25

1

203124

Tie Down Stake

P-26

1

201568

Anchor Strap

P-27

1

204532

Label Height & Moving

P-28

2

226401

Wheel 4”

P-29

1

Rim

P-30

1

900033

Bracket, Slam Jam Rim

P-31

1

200318

Bracket, Rim Reinforcement

P-32

1

203472

Spring, Slam Jam Rim

P-33

1

Net

* You may have extra parts with this model.

P-1 (1)

P-2 (1)

P-3 (1)

P-6 (2)

P-4 (2)

P-5 (2)

P-7 (1)

P-8 (1)

P-10 (1)

P-11 (1)

P-12 (2)

P-13 (2)

P-9 (1)

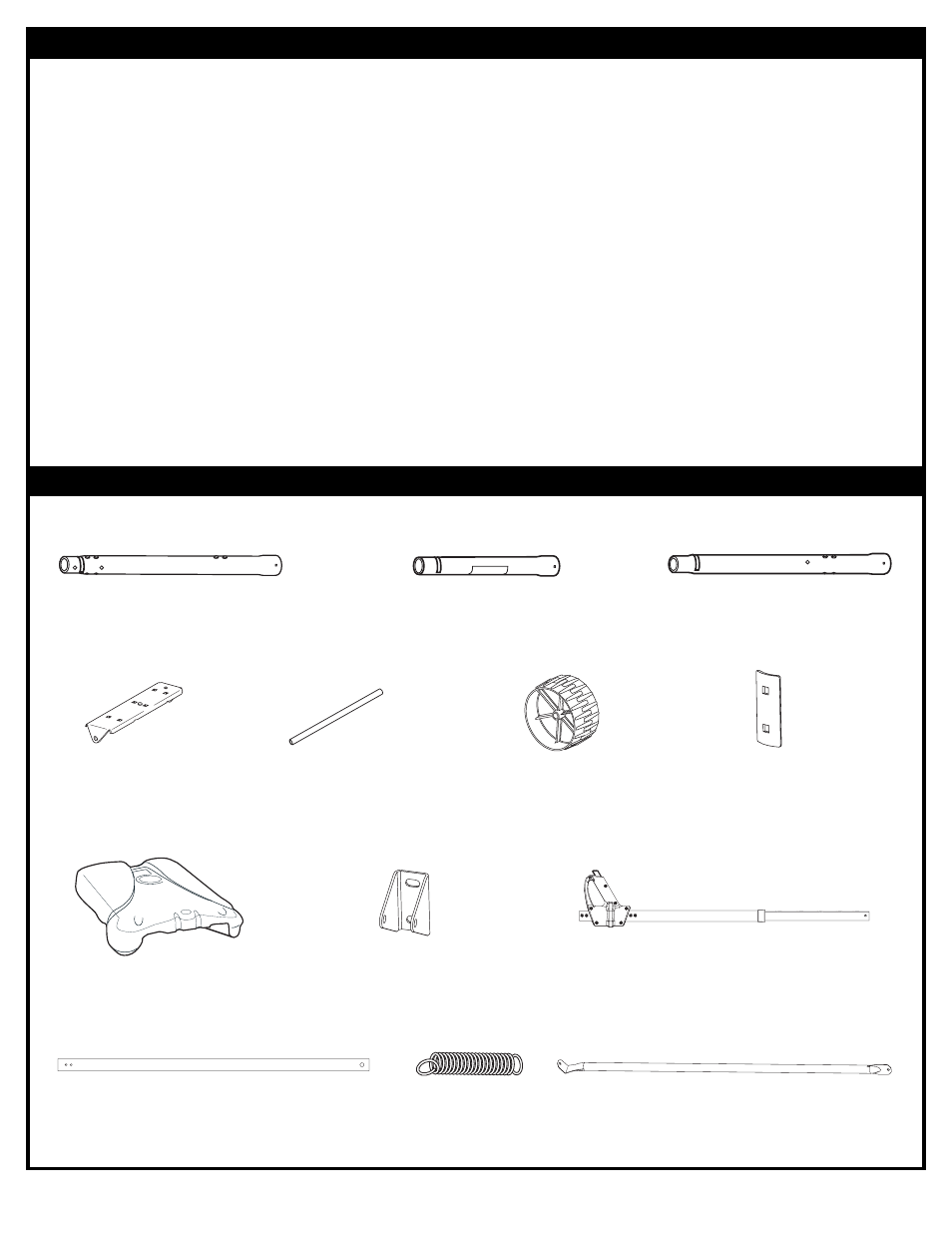

PARTS IDENTIFIER
