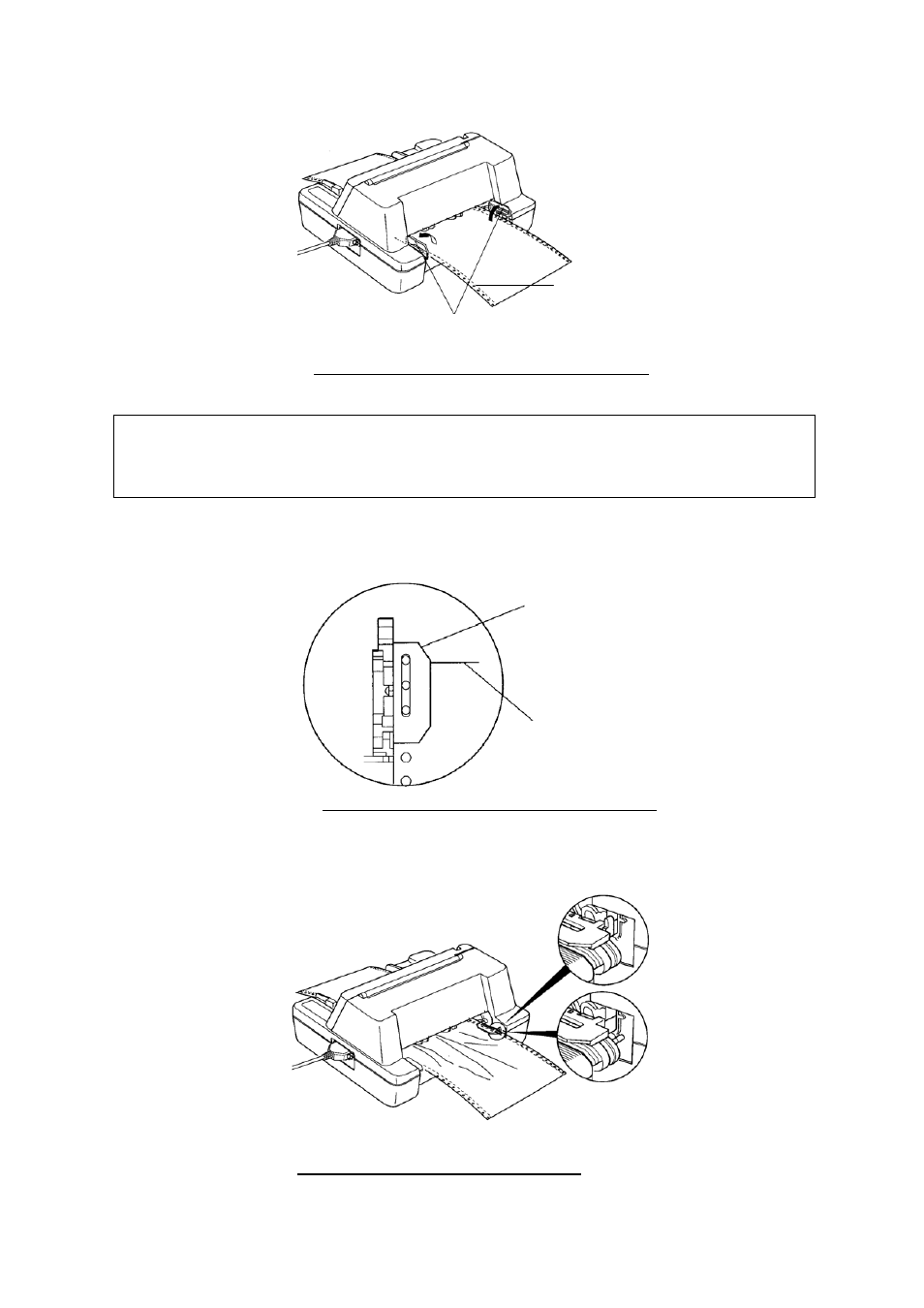

Figure 3-7 Setting tractor paper into the tractor
5 Release the lock lever of the right tractor and open the tractor paper guide.
Place the paper on the sprocket pins, then close the paper guide.
Figure 3-8 Setting paper on the sprocket pins
6 Slide the right tractor to left to take up any slack in the paper, and then fasten
the lock lever to fix the tractor in position.
Figure 3-9 Adjusting the tractor position
NOTE
When paper is loaded into the tractor, please set the top of paper to the edge of the
tractor paper guide as shown in Figure 3-8.
Tractor paper guide
Left edge
Paper Top
Tractor
