12 GB

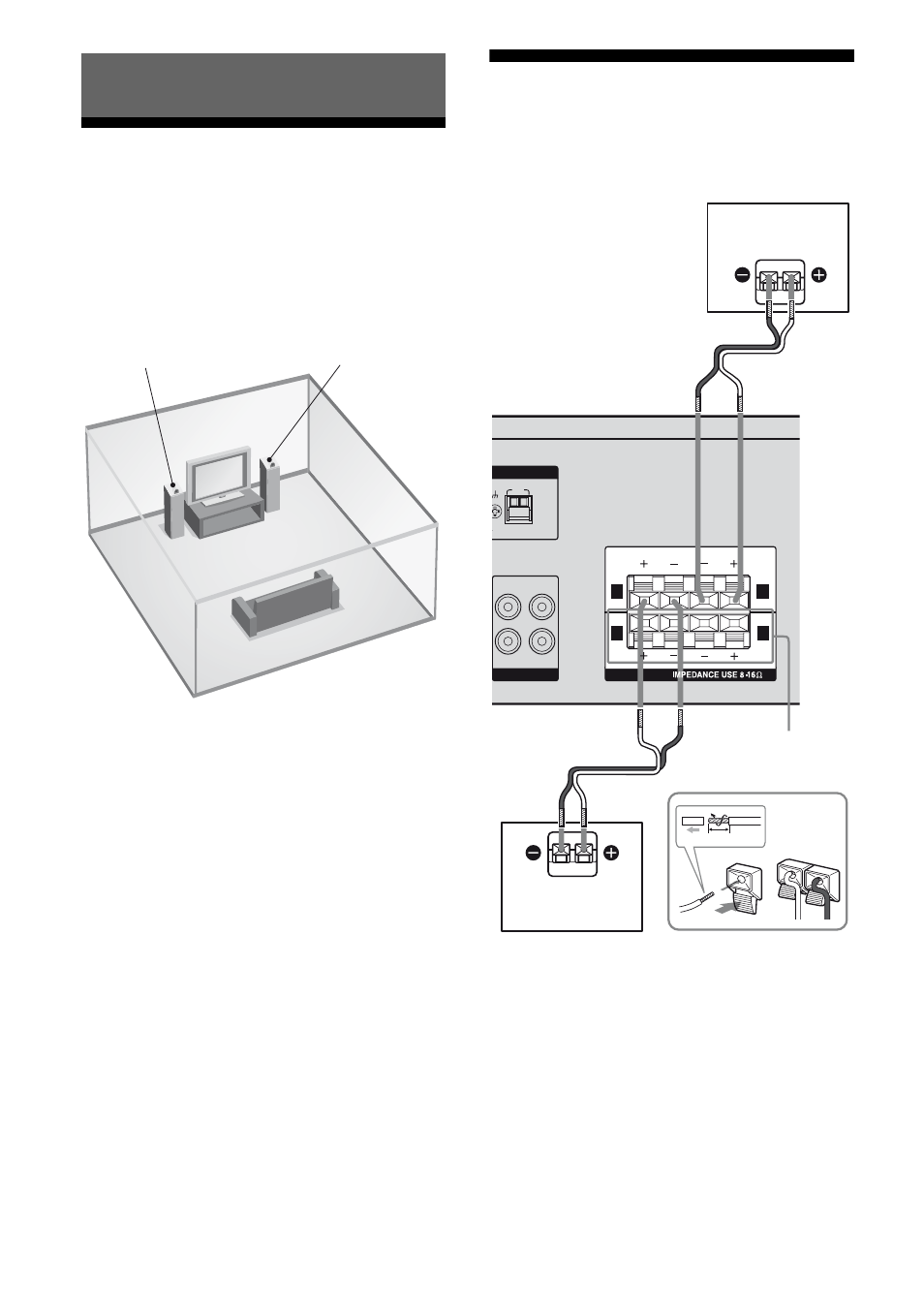

1: Installing speakers
This receiver allows you to use a 2.0 channel
system.
Example of the speaker system
configuration
2: Connecting speakers
Before connecting cords, make sure to
disconnect the AC power cord (mains lead).
* If you have an additional speaker system, connect
them to the SPEAKERS B terminals. You can
select the speakers you want to use with the
SPEAKERS (OFF/A/B/A+B) button on the
receiver (page 17).
Getting Started
Left speaker Right speaker
A A
B B
VIDEO
IN OUT
L
R
L R
L R
NTENNA
AM
10 mm (13/32 in.)
SPEAKERS
A
A Speaker cords (not supplied)
A
Left speaker
Right speaker
SPEAKERS
B
terminals*
