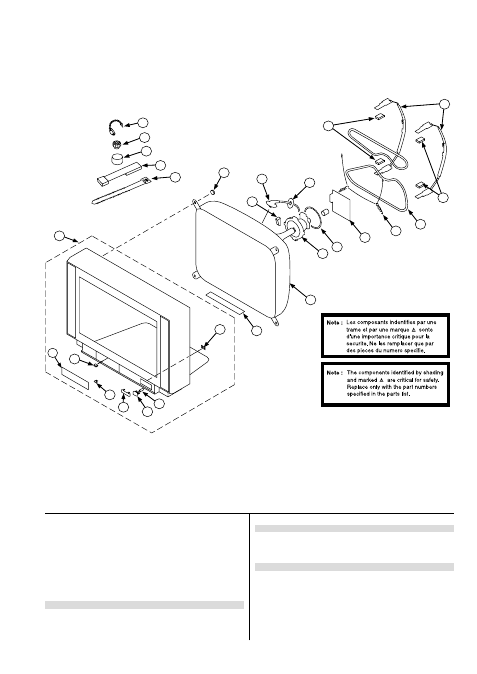

6-2. PICTURE TUBE
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
41
64 4-369-318-22 SPRING, TENSION
65 £ 1-419-772-11 COIL, DEGAUSSING
66 *4-205-248-01 CUSHION DGC
67 4-204-900-01 BAND, DGC
68 *4-203-022-01 HOLDER, HV
69 £ 1-251-839-21 CAP ASSY, HIGH VOLTAGE
70 4-203-658-01 SPACER, DY
71 4-203-648-01 SCREW (5), SELF-TAPPING
72 4-308-870-00 CLIP, LEAD WIRE
73 1-452-094-11 MAGNET, ROTATABLE DISK; 15MM Ø
74 1-452-032-11 MAGNET, DISK; 10MM Ø
75 X-4387-214-1 PERMALLOY ASSY, CORRECTION
76 3-701-007-00 BAND, BINDING
51 X-4200-723-1 BEZNET ASSY 52-58
52 4-047-464-01 CATCHER, PUSH
53 4-204-901-21 DOOR, (PAINTED)
54 3-703-035-12 SHAFT LID
55 4-204-902-11 WINDOW, ORNAMENTAL (PRINTED)
56 4-204-903-11 BUTTON, POWER (PAINTED)
57 4-204-426-01 SPRING
58 4-204-706-01 GUIDE, LIGHT
59 4-204-666-01 SHEET, BLOTTING
60 £ 8-738-836-05 PICTURE TUBE (A51LPT60X)
61 8-451-505-41 DEFLECTION YOKE (Y21RSA-L)
62 1-452-728-61 COIL, NA ROTATION (RT-154)
63 *A-1639-020-A C BOARD, COMPLETE
