13

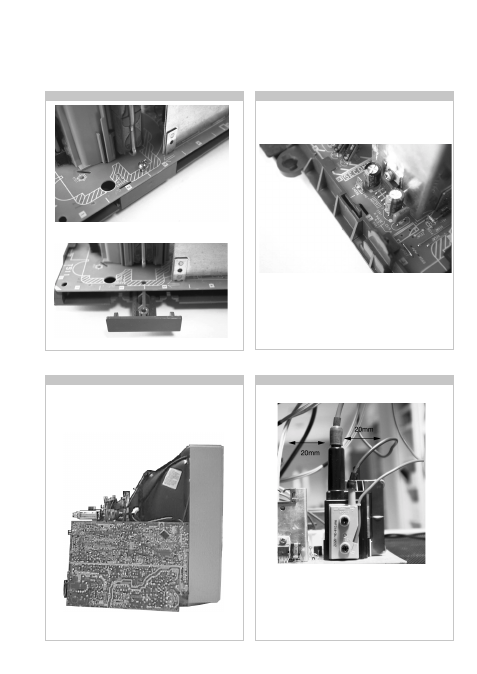

2-6. A Board PWB Removal [ Step 2 ] 2-5. A Board PWB Removal [ Step 1 ]
2-8. Wire Dressing
Ensure that all wires do not touch heat-sinks and high
temperature hot spots. All wires must be kept at a minimum
distance of 20mm away from the EHT lead.
2-7. Service Position
Remove screw.
<=
Remove FBT
support bracket.
<=
Release the 2 securing
clips located at either
side of the chassis and
slide the PWB clear of
the bracket.
<=
Place the A Board PWB in the
position indicated to carry out
servicing.
