EK 1038 receiver
EK 1038 receiver
Special features
The EK 1038 receiver is a small and reliable bodypack receiver that
can easily be attachted to the clothing by the means of a belt clip.
16 factory-preset UHF frequencies which are intermodulation-free
and four freely selectable frequencies ensure a high level of flexibil-
ity and operational reliability. In combination with the HDX noise
reduction it provides for a safe transmission.
The receiver is characterized by
y Easy use
y Channel-indication via display
y Channel adjustment via rocker button
y LED operation indication
y LED and display “LowBattery” indication
y LED receiving indication

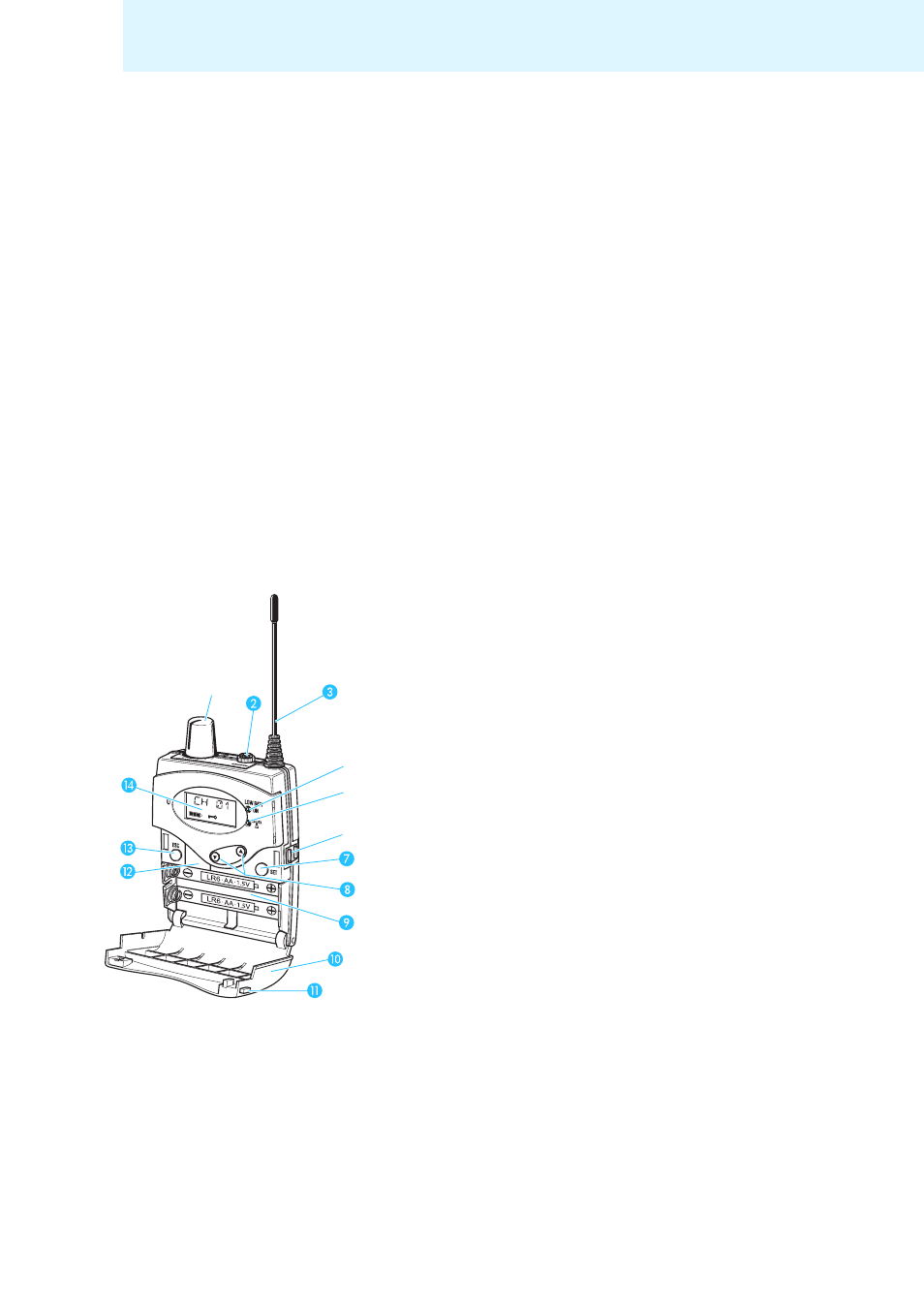

Operating controls
³
Volume control and On/Off button
·
3.5 mm jack socket for headphones
»
Receiving antenna
¿
Red LED for operation and battery status indication (LOW BATT/ON)
´
Green LED for RF signal indication
²
Charging cotacts
¶ SET
button
º ̆ / ̄ rocker button (UP/DOWN)
¾
Battery compartment cover
µ
Battery compartment cover
¸
Unlocking button
¹
Infra-red interface
Ƹ ESC
button
ƹ
Display
