-8-

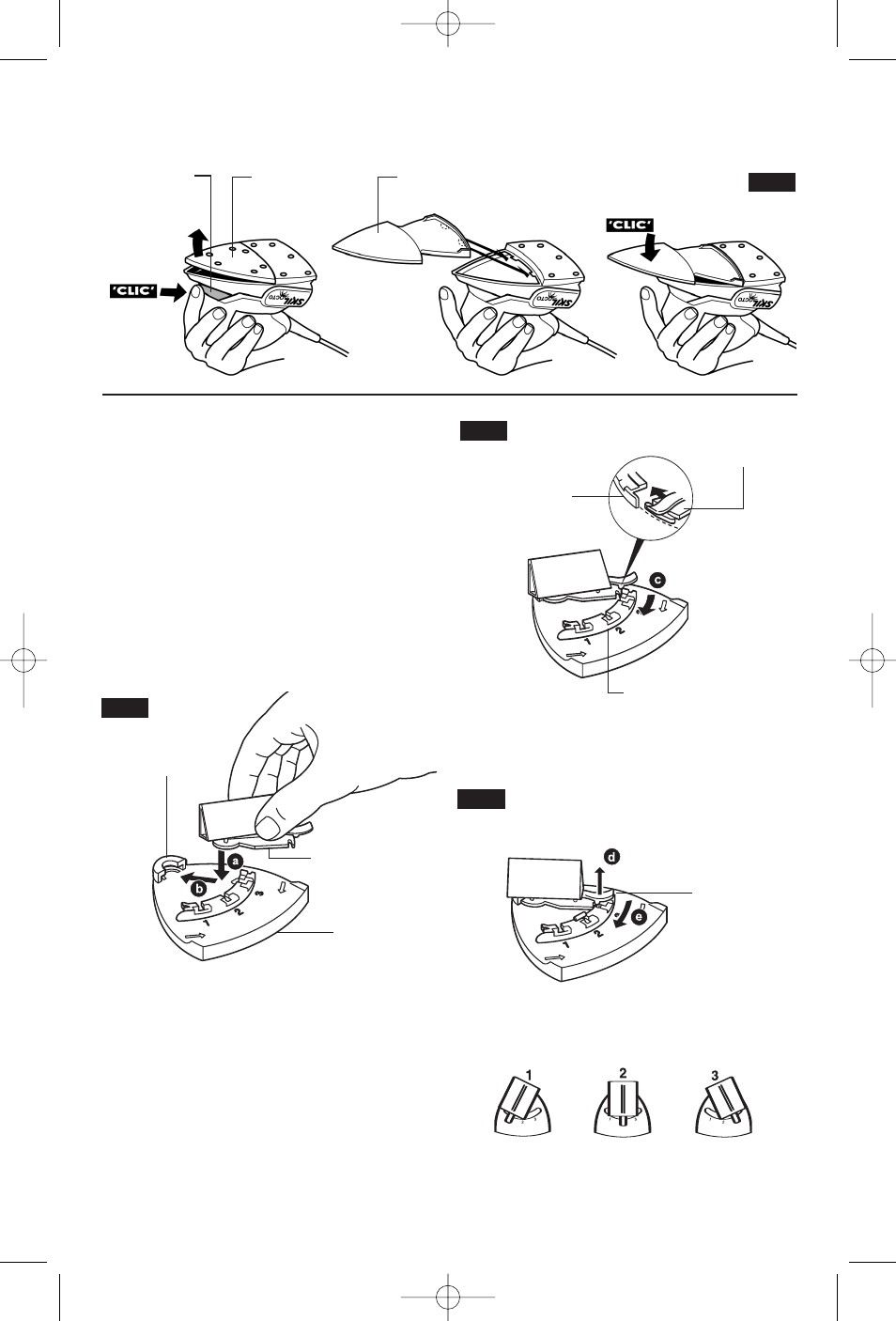

EXTENSION PLATE
When sanding in extremely tight areas, such as
louvered panels, remove the hook-and-loop
backing pad and attach the extension plate
provided (Fig. 5).
FIG. 5
PAD/PLATE
UNLOCK
BUTTON
BACKING
PAD
EXTENSION
PLATE
ATTACHING THE 3-POSITION
ATTACHMENT SUPPORT PLATE
Your sander also features a 3-position
attachment support plate. The attachment
support plate allows you to easily attach and
change the position of accessories provided.
Press the pad/plate unlock button and pull the
backing pad free of the sander. Engage rear of
3-position attachment support plate in its recess
and press front of pad in place until it engages
with a "Click" sound. (Fig. 2).
ATTACHING ACCESSORIES
1. Insert round portion of the attachment into
the mounting boss from the side of pad (Fig. 6).
2. Swing attachment in direction of arrow
C flat
against pad until rear portion of attachment
slides underneath the the adjustment rail
(Fig. 7).
3
. Lift up on release tab, swing attachment to
notch and release tab.
To change position of attachment, simply lift
release tab, swing attachment to desired notch
and release tab to secure attachment (Fig. 8).
ATTACHMENT
MOUNTING
BOSS
FIG. 6
ADJUSTMENT
RAIL
REAR END OF
ATTACHMENT
PLATE
ADJUSTMENT
RAIL
FIG. 7
FIG. 8
RELEASE
TAB
ATTACHMENT
SUPPORT
PLATE
