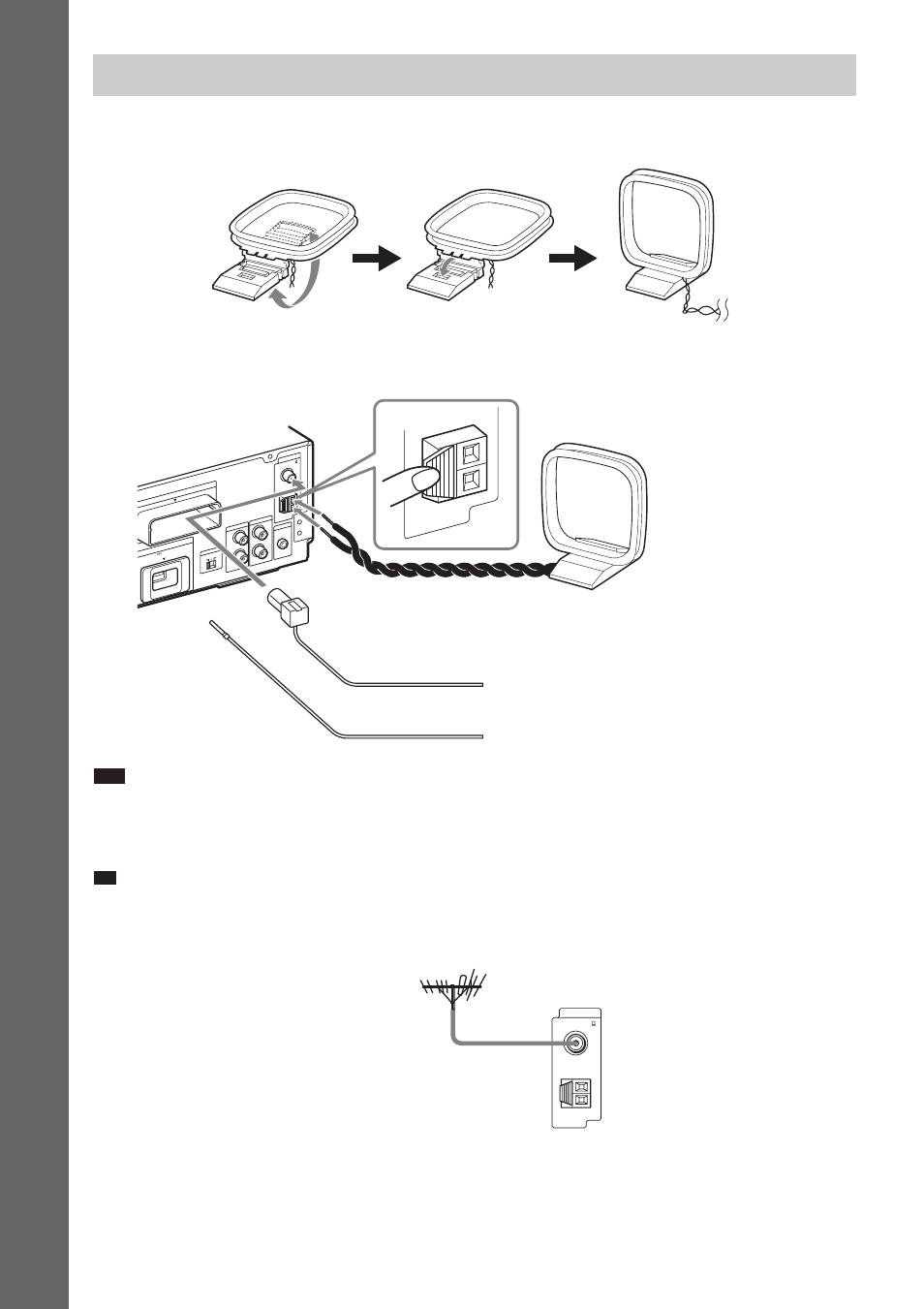

ted To assemble the AM loop antenna (aerial)
To connect the antenna (aerial)
Note
• Keep the AM loop antenna (aerial) and cord away from the system or other AV components, as noise may result.
• Be sure to fully extend the FM wire antenna (aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
Tip
• Adjust the direction of the AM loop antenna (aerial) for best AM broadcast sound.
• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM
antenna (aerial) as shown below.
Connecting the antenna (aerial)
ANTE NNA
AUDI O
S-AIR ID
AUDI O IN
AUDIO IN
A. CA L MIC
ECM -AC2
FM
AM
COA XIAL 75
R
L
R
L
EXT
EZW -RT1
0
TV
A B C DC5V
500m A MA X
AM
or
AM loop antenna (aerial)
(supplied)
FM wire antenna (aerial)
(supplied)
Rear panel of the unit
ANTENNA
FM
AM
COAXIAL 75
Outdoor FM antenna (aerial)
Unit
