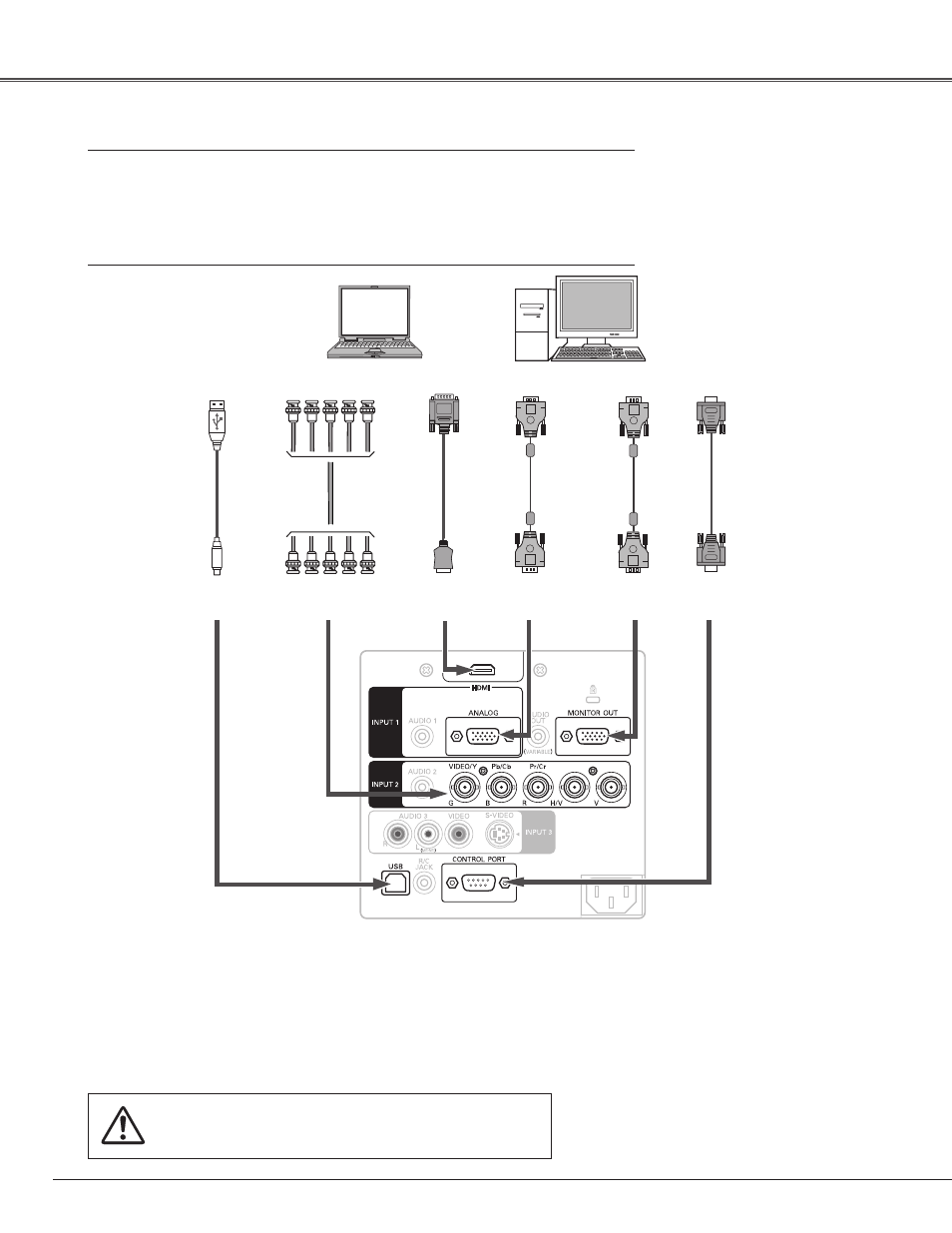

Connecting to a Computer (Digital and Analog RGB)
Cables used for connection )( * =Cables are not supplied with this projector.)
• VGA Cable (Mini D-sub 15 pin) (One cable is supplied)*
• HDMI-DVI Cable * • Serial Control Cable *
• BNC Cable * • USB Cable *
HDMI-DVI
cable USB
cable
USB port
USB
Unplug the power cords of both the projector and external
equipment from the AC outlet
before connecting cables.
✔ Notes:
• USB cable connection is needed when operating the
computer with the remote control.
• When the Standby mode is set to “Eco“ in the Setting,
MONITOR OUT and AUDIO OUT are disabled. (p.56)
Monitor
Output
HDMI
DVI
Output
Monitor Output
BNC
cable
ANALOG
IN
Monitor
Input
G B R H/V V
Installation
MONITOR
OUT
CONTROL
PORT
Serial
Output
VGA
cable VGA
cable
Serial
Control
Cable
✔ Notes:
• When DVI signal is connected to HDMI
terminal with HDMI-DVI cable, connect the
sound signal to AUDIO1
and set up Sound of
"HDMI setup" to "AUDIO1". (p.58)
• This projector can be connected to the
corresponding equipment of DVI however
depending on the equipment there are the
cases it does not operate normally ; the image
does not appear and the sound is not output.
