5.5 Picture adjustment
To change the values of contrast, brightness, colour, hue,
peaking directly, you can use the following buttons.
Press CONTRAST, select the contrast
adjustment.
Press or to change the value.
Press BRIGHTNESS, select the brightness
adjustment.
Press or to change the value.
Press ESC to exit.
Press COLOUR, select the colour adjustment
Press or to change the value.
Press ESC
to exit.
Press HUE, select the hue adjustment only for
NTSC signals
Press to change the value.
Press ESC to exit.
Press PEAK, select the peaking adjustment
Press to change the value.
Press ESC to exit.
Press MEMO if you want to store all settings, when one
of the functions is displayed.
Press ESC to exit.
N.B.: Whenever you press the button, the previously
stored values of the displayed signal bank are recalled.

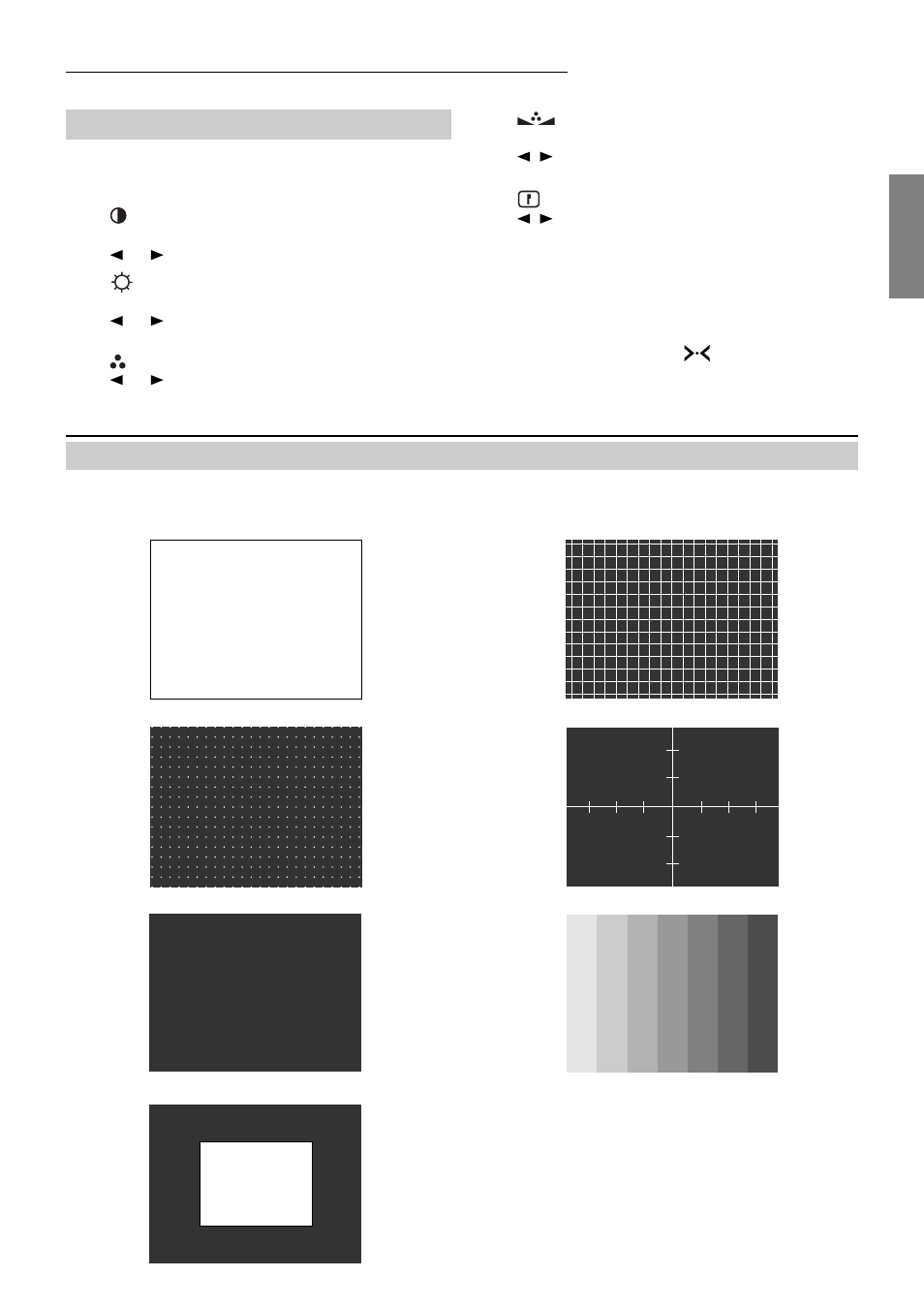

5.6 Test pattern
To select a test pattern, press TEST. One of the eight test patterns will appear.
WHITE
DOTS
H PATTERN
WINDOW
CROSS HATCH
CROSS HAIR
COLOUR BARS
Whenever you press the TEST button the previous
pictures will appear, sequentially. Press ESC to exit.
