5

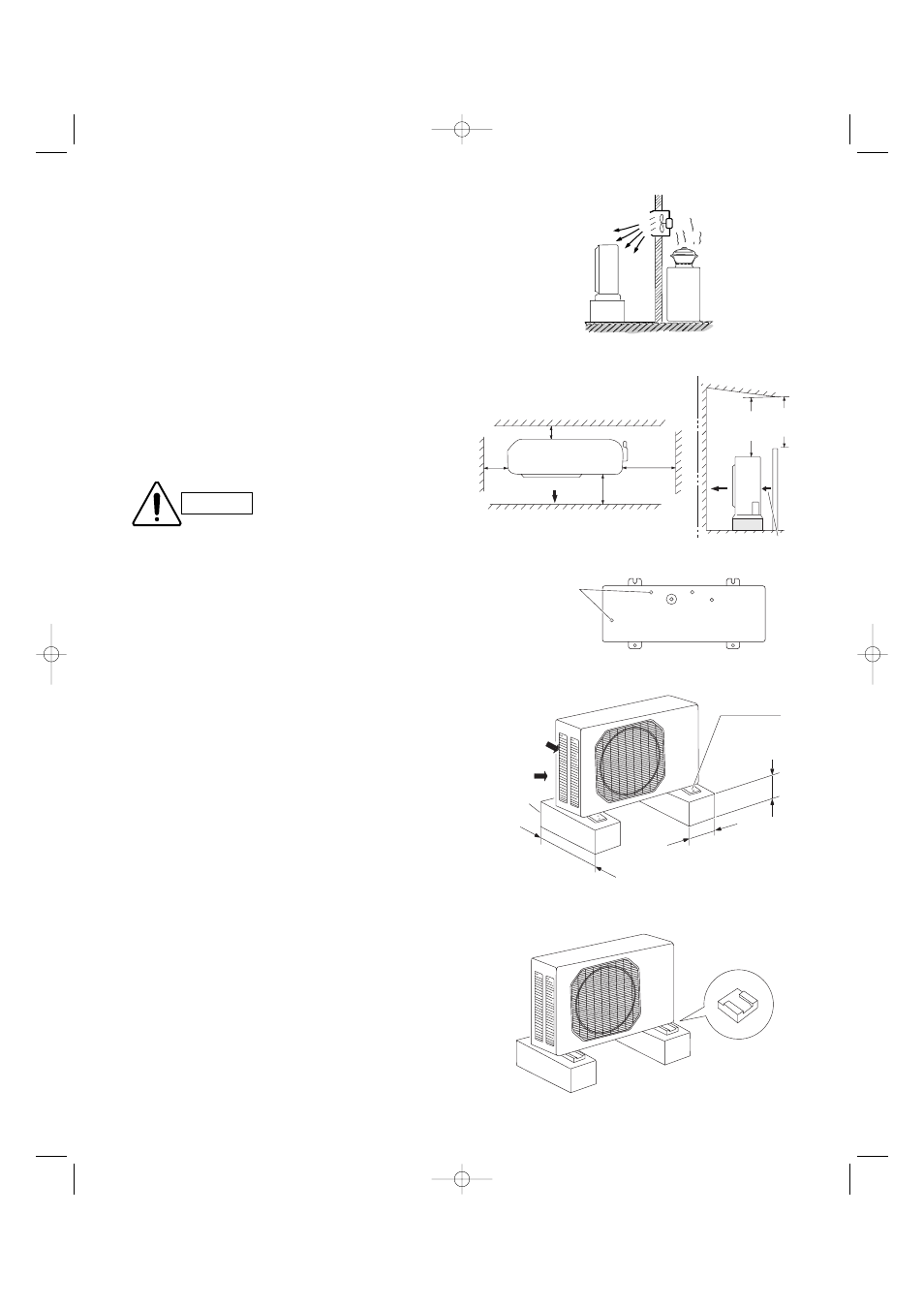

2-2. Outdoor Unit

AVOID:

heat sources, exhaust fans, etc. (Fig. 4)

damp, humid or uneven locations.

DO:

choose a place as cool as possible.

choose a place that is well ventilated.

allow enough room around the unit for air intake/

exhaust and possible maintenance. (Fig. 5a)

provide a solid base (level concrete pad, concrete

block, 4"

¥

1'4" (10

¥

40 cm) beams or equal), a mini-

mum of 4" (10 cm) above ground level to reduce

humidity and protect the unit against possible water

damage and decreased service life. (Figs. 5b and 5c)

Install cushion rubber under unit’s feet to reduce

vibration and noise. (Fig. 5d)

use lug bolts or equal to bolt down unit, reducing

vibration and noise.

Install in a location where no antenna of a television

or radio exists within 10' (3 m).

Outdoor unit

Hot air

Heat source

Exhaust fan

NO

Fig. 4

Fig. 5c

Air intake

Min. 2" (5 cm)

Air discharge

Min.

2" (5 cm)

Min.
8" (20 cm)

Valve
side
Min. 10"
(25 cm)

Min.

7' (2 m)

Min.

7' (2 m)

Ground

Obstacle

Obstacle above

Air discharge

Min. 2" (5 cm)

Air intake

Air intake

Concrete
or equal

About

4" (10 cm)

Min. 4" (10 cm)

Anchor bolts
(4 pcs.)

About 16" (40 cm)

Fig. 5d

Cushion rubber

Fig. 5b

Drai

n

hole

s

CAUTION

A solid base must not cover

the hole of the bottom plate.

Fig. 5a
